IGNITION SYSTEM

ZR750D1 ZEPHYR 750 1996 EUROPE UK FR NL AR FG GR NR SD SP ST

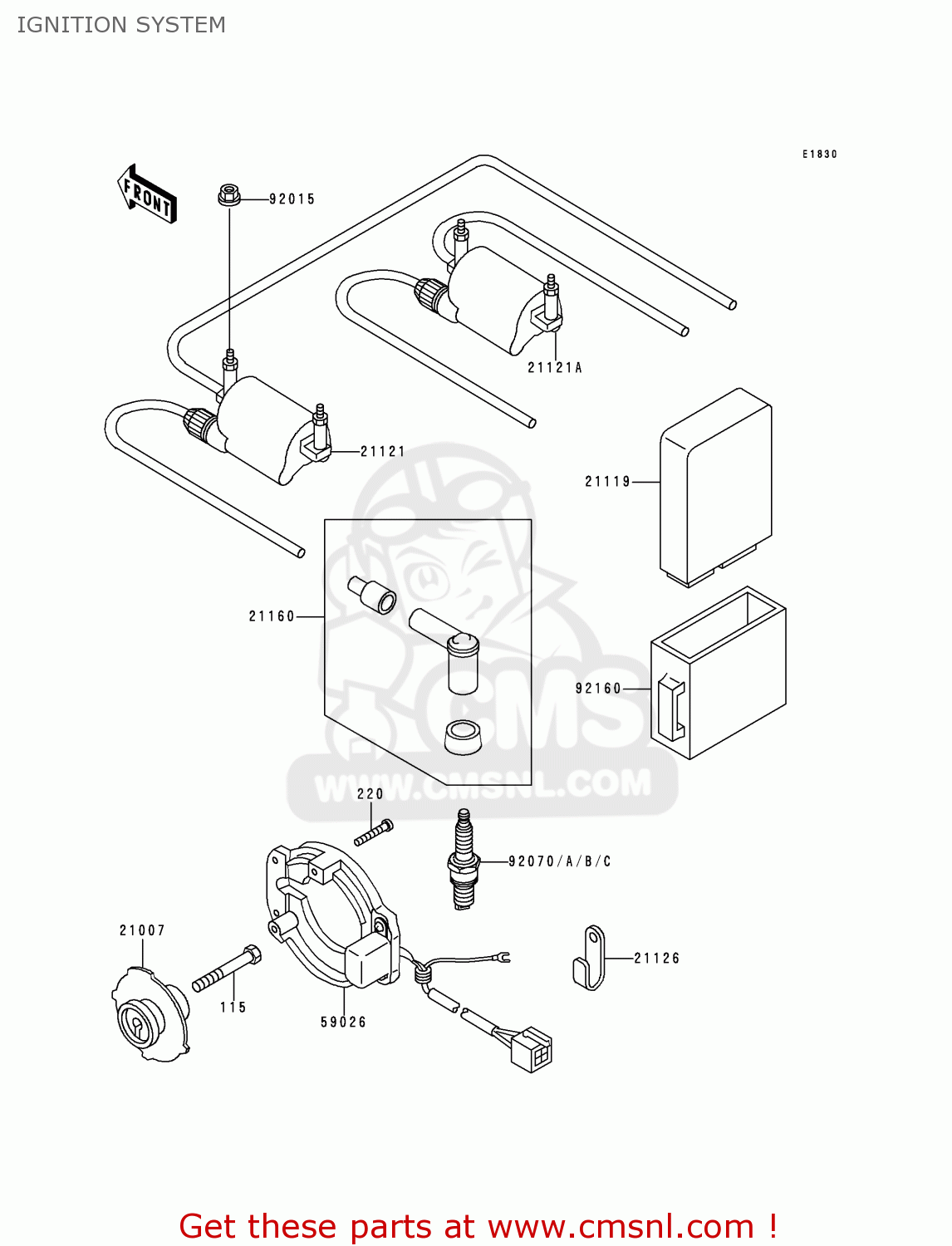

Ignition system diagram ZR750D1 ZEPHYR 750 1996 EUROPE UK FR NL AR FG GR NR SD SP ST

prices are in EUR

ref

part #

description

quantity

115

115G0845
ref: 115

BOLT-SMALL-UPSET

€ 3.50

220

220B0525
ref: 220

SCREW-PAN-CROS,5X25

€ 2.50

21007

210071218
ref: 21007

ROTOR,PULSING

€ 34.00

21119

211191310
ref: 21119

IGNITER

€ 509.00

21121

211211177
ref: 21121

COIL-IGNITION,#1&#4

€ 161.00

21121A

211211178
ref: 21121A

COIL-IGNITION,#2&#3

€ 161.00

21126

21126008
ref: 21126

CLAMP,WIRING HARNESS

€ 3.00

21160

211601085
ref: 21160

CAP-ASSY-PLUG

€ 15.00

59026

590261103
ref: 59026

COIL-PULSING

€ 123.00

92015

920151193
ref: 92015

NUT,FLANGED,6MM

€ 0.50

92070

ref: 92070

92070A

ref: 92070A

92070B

920701189
ref: 92070B

DR9EA (NGK SPARKPLUG)

€ 4.00

92070C

920701199
ref: 92070C

DR8EA (NGK SPARKPLUG)

€ 4.00

92160

921601259
ref: 92160

DAMPER,IGNITER

€ 15.00
