CARBURETOR
ZR550B7 ZEPHYR 1996 EUROPE SD SP

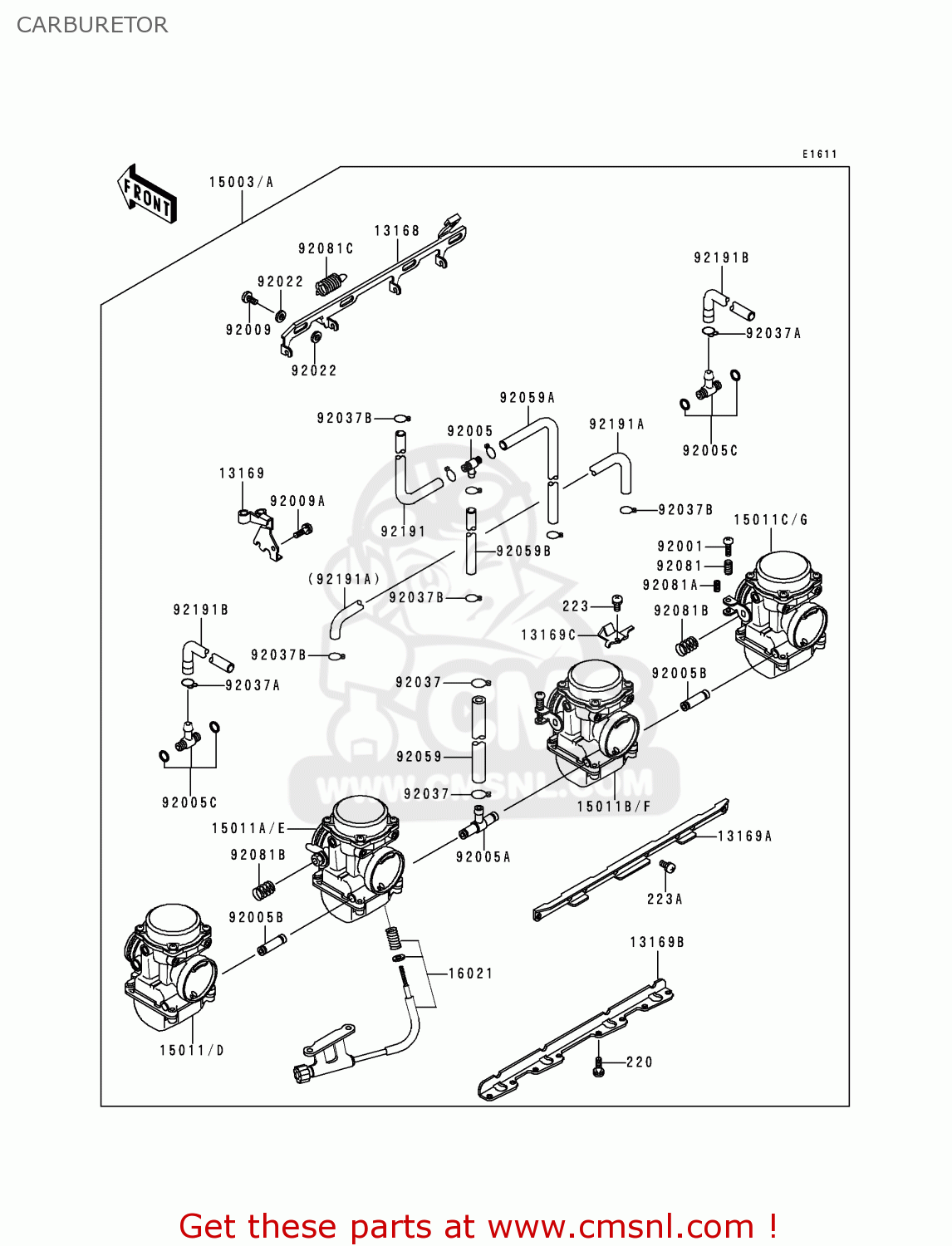

Carburetor diagram ZR550B7 ZEPHYR 1996 EUROPE SD SP
CARBURETOR ZR550B7 ZEPHYR 1996 EUROPE SD SP
×
prices are in EUR
ref
part #
description
quantity
13168
131681280
ref: 13168
LEVER,DL
€ 92.00
13169
131691962
ref: 13169
PLATE,THROTTLE CABLE
€ 48.00
13169A
131691963
ref: 13169A
PLATE,CARBURETOR STAY
€ 85.00
13169B
131691964
ref: 13169B
PLATE,CARBURETOR STAY
€ 85.00
13169C
131691965
ref: 13169C
PLATE,STARTER CABLE
€ 26.50
15003
150031177
ref: 15003
EUSP
CARBURETOR-ASSY
€ 2,046.50
15003A
150031271
ref: 15003A
SD
CARBURETOR-ASSY
€ 1,464.50
15011
150111065
ref: 15011
EUSP
CARBURETOR,LH,OUTSIDE
€ 719.00
15011A
150111066
ref: 15011A
EUSP
CARBURETOR,LH,INSIDE
€ 719.00
15011B
150111067
ref: 15011B
EUSP
CARBURETOR,RH,INSIDE
€ 719.00
15011C
150111068
ref: 15011C
EUSP
CARBURETOR,RH,OUTSIDE
€ 719.00
15011D
150111244
ref: 15011D
SD
CARBURETOR,LH,OUTSIDE
€ 460.00
15011E
150111245
ref: 15011E
SD
CARBURETOR,LH,INSIDE
€ 460.00
15011F
150111246
ref: 15011F
SD
CARBURETOR,RH,INSIDE
€ 460.00
15011G
150111247
ref: 15011G
SD
CARBURETOR,RH,OUTSIDE
€ 460.00
16021
160211179
ref: 16021
SCREW-THROTTLE STOP
€ 83.50
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
€ 11.50
92005
920051112
ref: 92005
FITTING,FUEL,T-TYPE
€ 10.00
92005A
920051288
ref: 92005A
FITTING
€ 22.00
92005B
920051310
ref: 92005B
FITTING
€ 25.00
220
220B0616
ref: 220
SCREW-PAN HEAD,6X16
€ 2.50
223
223C0420
ref: 223
SCREW-PAN-WS-CROS
€ 3.00
223A
223C0510
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
92005C
920051314
ref: 92005C
FITTING
€ 31.50
92009
920091262
ref: 92009
SCREW
€ 4.00
92009A
920091365
ref: 92009A
SCREW
€ 4.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
€ 3.00
92037
920371075
ref: 92037
CLAMP,FUEL INLET TUBE
€ 2.50
92037A
920371185
ref: 92037A
CLAMP,FUEL TAP HOSE
€ 3.50
92037B
920371477
ref: 92037B
CLAMP,TUBE
€ 3.00
92059
920591236
ref: 92059
TUBE,FUEL
€ 25.00
92059A
920591713
ref: 92059A
TUBE,5X9X120
€ 16.50
92059B
920591954
ref: 92059B
TUBE,5X9X45
€ 3.50
92081
920811620
ref: 92081
SPRING,THROTTLE ADJUS
€ 3.00
92081A
920811621
ref: 92081A
SPRING,THROTTLE ADJUS
€ 3.00
92081B
920811622
ref: 92081B
SPRING,THROTTLE ADJUS
€ 6.50
92081C
920811913
ref: 92081C
SPRING,STARTER LEVER
€ 15.00
92191
921911038
ref: 92191
TUBE,5X9X90
€ 6.50
92191A
921911039
ref: 92191A
TUBE,5X9X300
€ 6.00
92191B
921911118
ref: 92191B
TUBE,AIR VENT
€ 24.00
