CRANKCASE BOLT PATTERN

ZR550B4 ZEPHYR 1993 EUROPE UK FR NL FG GR SP

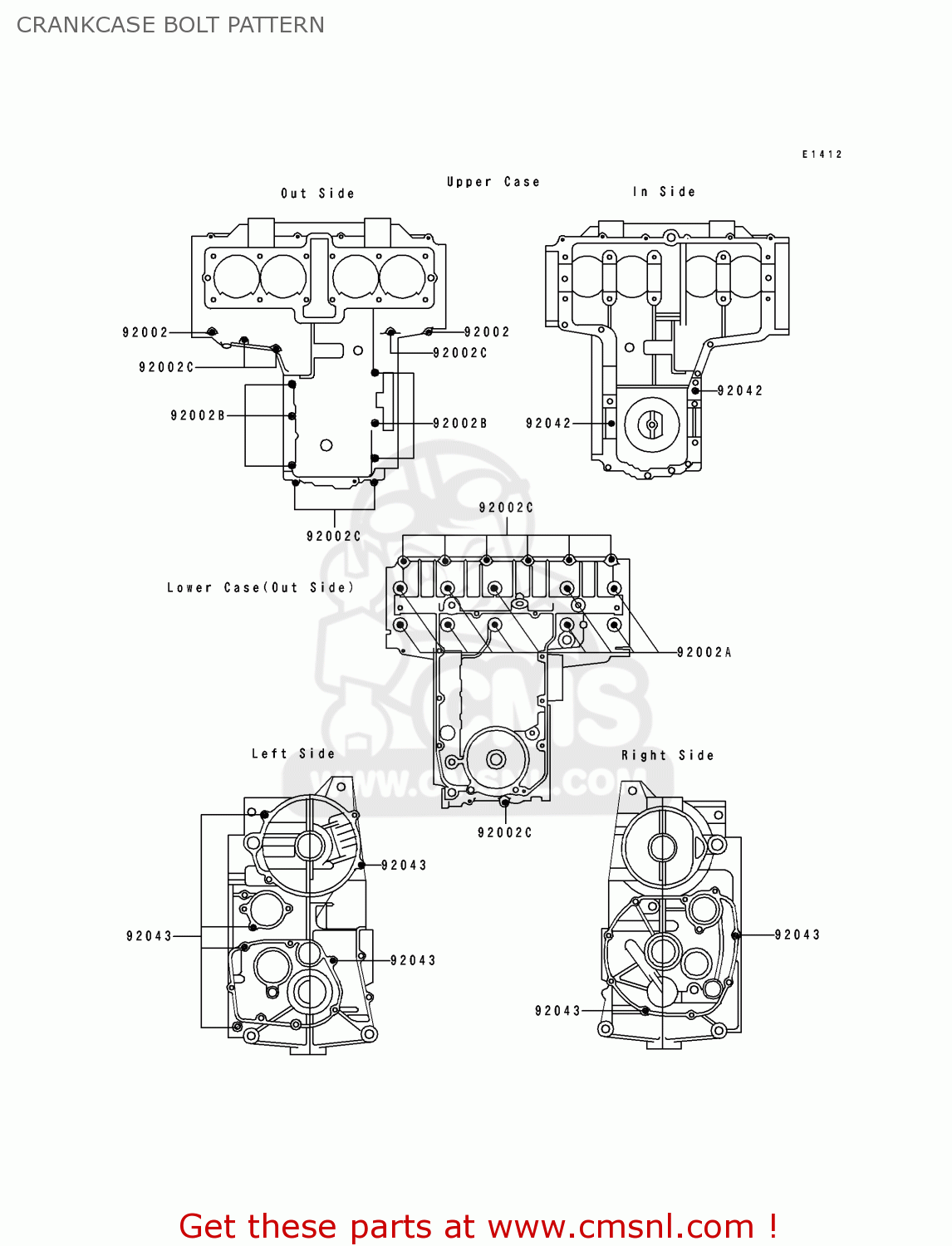

Crankcase bolt pattern diagram ZR550B4 ZEPHYR 1993 EUROPE UK FR NL FG GR SP

CRANKCASE BOLT PATTERN ZR550B4 ZEPHYR 1993 EUROPE UK FR NL FG GR SP

CRANKCASE BOLT PATTERN ZR550B4 ZEPHYR 1993 EUROPE UK FR NL FG GR SP

prices are in EUR

ref

part #

description

quantity

92002

920021054
ref: 92002

BOLT,6X55

€ 3.00

92002A

920021077
ref: 92002A

BOLT,8X95

€ 7.50

92002B

920021078
ref: 92002B

BOLT,6X95

€ 2.50

92002C

920021080
ref: 92002C

BOLT,6X40

€ 3.50

92042

92042016
ref: 92042

PIN,DOWEL,6X16

€ 3.50

92043

920431263
ref: 92043

PIN,DOWEL,6.2X8X14

€ 0.50
