OIL COOLER

ZR550B3 ZEPHYR 1992 EUROPE UK FG FR GR SP

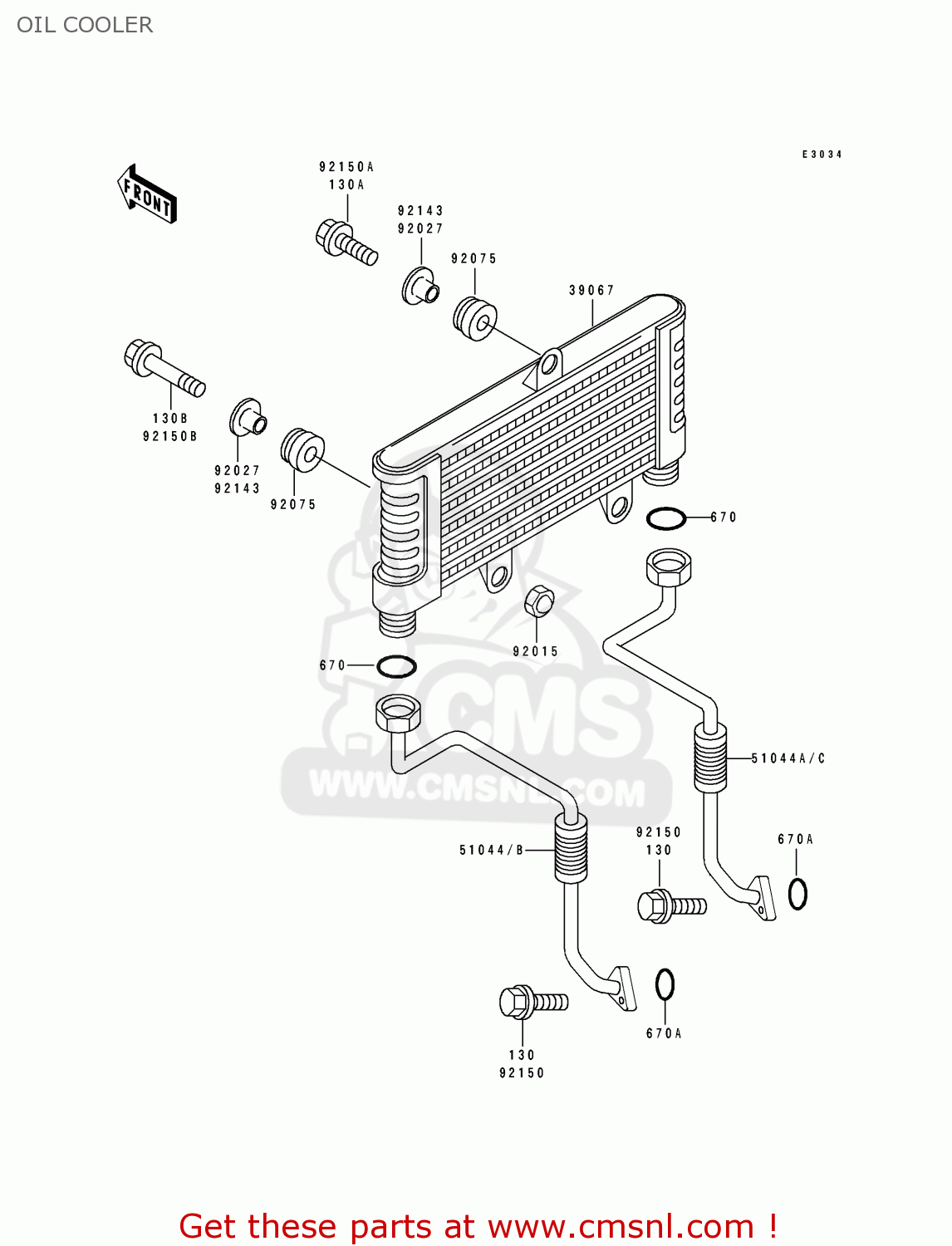

Oil cooler diagram ZR550B3 ZEPHYR 1992 EUROPE UK FG FR GR SP

prices are in EUR

ref

part #

description

quantity

130

130G0616
ref: 130

BOLT-FLANGED,6X16

€ 0.50

130A

130J0625
ref: 130A

BOLT-FLANGED,6X25

€ 2.00

130B

130J0640
ref: 130B

BOLT-FLANGED,6X40,BLA

€ 3.00

670

670B1508
ref: 670

O RING,8MM

€ 1.00

670A

670B2010
ref: 670A

O RING,10MM

€ 1.00

39067

390671055
ref: 39067

COOLER-OIL

€ 476.00

51044

510441109
ref: 51044

TUBE-ASSY,LH

€ 222.00

51044A

510441110
ref: 51044A

TUBE-ASSY,RH

€ 211.00

92015

920151170
ref: 92015

NUT,CAP 6MM,BLACK

€ 0.50

92027

920271651
ref: 92027

COLLAR

€ 2.50

92075

92075277
ref: 92075

DAMPER

€ 1.00
