ENGINE COVER(S)
ZR1100C3 ZRX1100 1999 USA CANADA

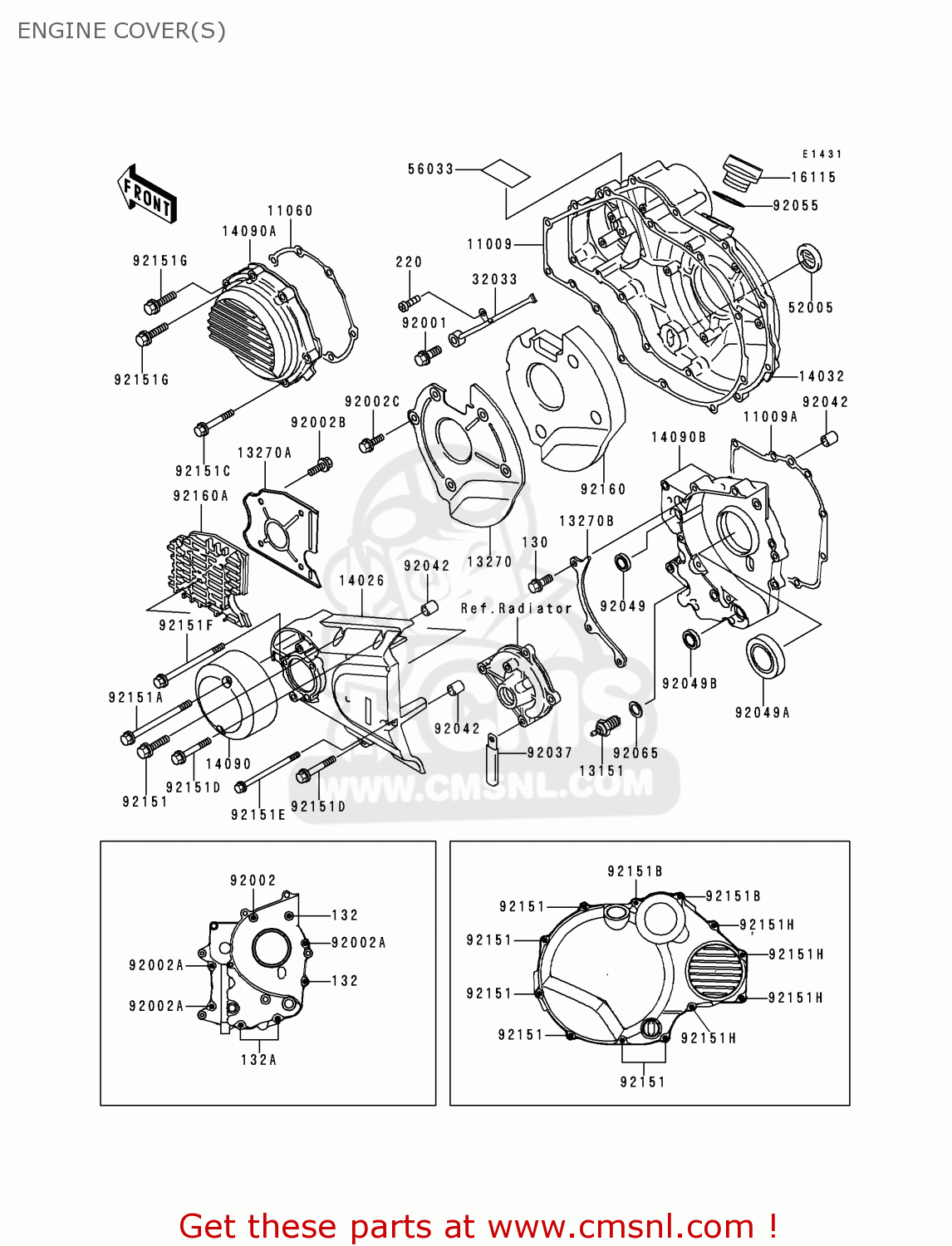

Engine cover(s) diagram ZR1100C3 ZRX1100 1999 USA CANADA
ENGINE COVER(S) ZR1100C3 ZRX1100 1999 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130S0614
ref: 130
BOLT-FLANGED,6X14
€ 1.50
11009
110091860
ref: 11009
GASKET,CLUTCH COVER (NAS)
€ 9.50
11009A
110091982
ref: 11009A
GASKET (NAS)
€ 12.00
11060
110601695
ref: 11060
GASKET,PULSING COVER (NAS)
€ 6.50
13151
131511080
ref: 13151
SWITCH-COMP,NEUTRAL
€ 9.00
13270
132701765
ref: 13270
PLATE
€ 9.00
13270A
132701771
ref: 13270A
PLATE
€ 8.50
13270B
132701911
ref: 13270B
PLATE,TRANSMISSION
€ 3.50
14026
140261249
ref: 14026
COVER-CHAIN
€ 121.50
14032
140321457
ref: 14032
COVER-CLUTCH
€ 206.00
14090
140901777
ref: 14090
COVER,RELEASE
€ 106.50
14090A
140901786
ref: 14090A
COVER,PULSING
€ 76.50
14090B
140901877
ref: 14090B
COVER,TRANSMISSION
€ 169.00
16115
161151009
ref: 16115
CAP-OIL FILLER
€ 10.00
32033
320331204
ref: 32033
PIPE,CLUTCH COVER
€ 20.50
52005
520051009
ref: 52005
GAUGE,OIL LEVEL
€ 12.00
56033
560331073
ref: 56033
LABEL-MANUAL,OIL CAPA
€ 4.50
92001
920011855
ref: 92001
BOLT,BANJO,8X20
€ 5.50
92002
920021343
ref: 92002
BOLT,6X20
€ 4.00
92002A
920021344
ref: 92002A
BOLT,6X25
€ 1.50
92002B
920021449
ref: 92002B
BOLT,6X10
€ 2.50
92002C
920021541
ref: 92002C
BOLT,6X10
€ 4.00
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
92042
92042007
ref: 92042
PIN-DOWEL
€ 4.00
92049
920491017
ref: 92049
SEAL-OIL,SD-8187
€ 6.50
92049A
920491070
ref: 92049A
SEAL-OIL,AE2343F0
€ 11.50
92049B
920491186
ref: 92049B
SEAL-OIL,TB13205
€ 5.50
92055
92055049
ref: 92055
'0'RING,31MM
€ 2.50
92065
92065058
ref: 92065
GASKET, 10,5X16X1 (NAS)
€ 2.50
92151
921511130
ref: 92151
BOLT,6X25
€ 2.00
92151A
921511131
ref: 92151A
BOLT,6X40
€ 3.00
92151B
921511132
ref: 92151B
BOLT,6X55
€ 3.00
92151C
921511134
ref: 92151C
BOLT,6X30
€ 1.50
92151D
921511135
ref: 92151D
BOLT,6X35
€ 2.50
92151E
921511199
ref: 92151E
BOLT,6X65
€ 3.00
92151F
921511200
ref: 92151F
BOLT,6X80
€ 2.50
92151G
921511201
ref: 92151G
BOLT,6X30
€ 2.50
92151H
921511202
ref: 92151H
BOLT,6X40
€ 3.00
92160
921601812
ref: 92160
DAMPER
€ 47.00
92160A
921601819
ref: 92160A
DAMPER
€ 24.50
132
132J0620
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
132A
132J0650
ref: 132A
BOLT-FLANGED-SMALL
€ 3.00
220
220B0510
ref: 220
SCREW-PAN-CROS,5X10
€ 0.50
