Genuine ZR Kawasaki Parts delivered quickly!


OIL PUMP

ZR1100C2 ZRX1100 1998 EUROPE UK FR NL FG GR NR ST

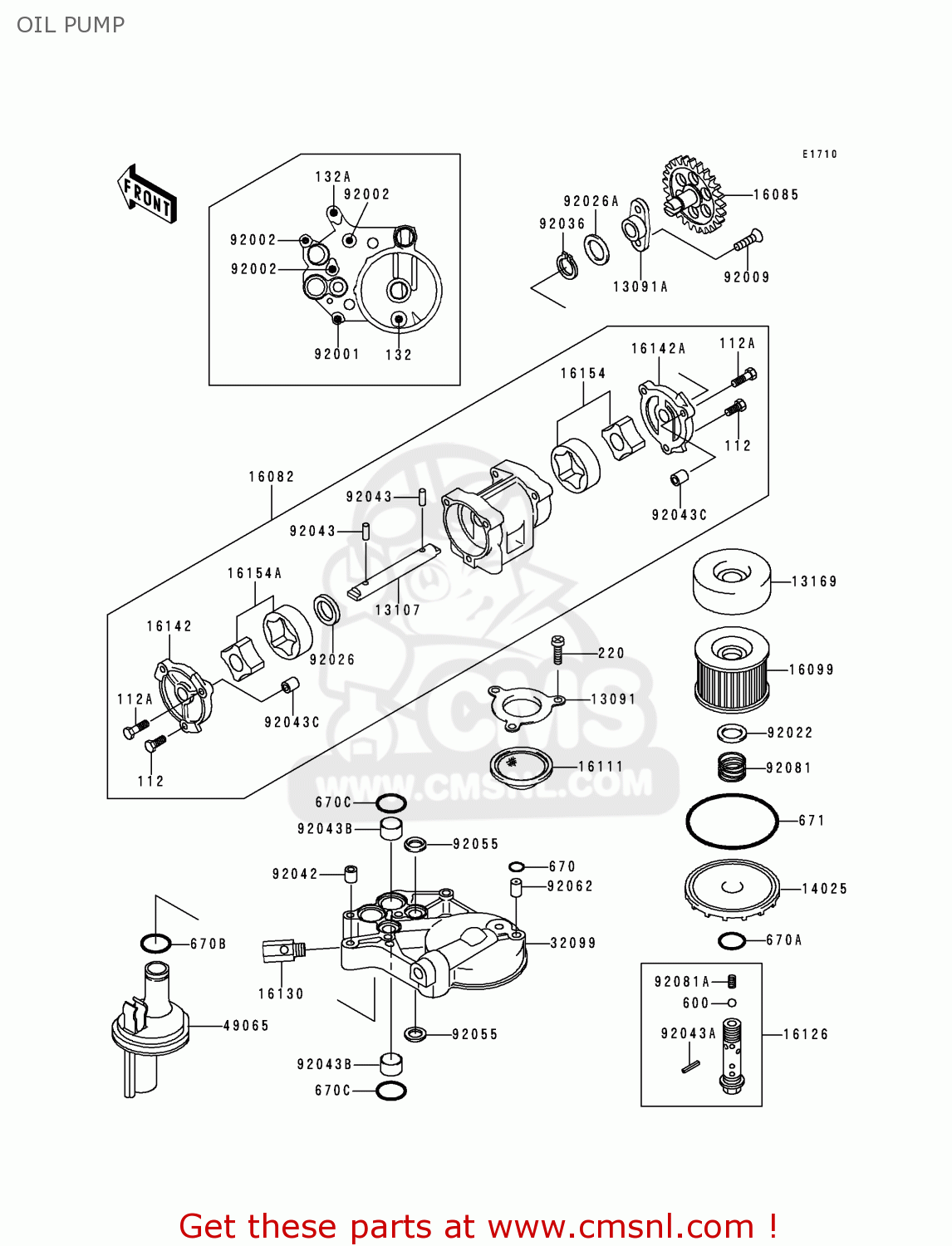

Oil pump diagram ZR1100C2 ZRX1100 1998 EUROPE UK FR NL FG GR NR ST

OIL PUMP ZR1100C2 ZRX1100 1998 EUROPE UK FR NL FG GR NR ST
OIL PUMP ZR1100C2 ZRX1100 1998 EUROPE UK FR NL FG GR NR ST
OIL PUMP ZR1100C2 ZRX1100 1998 EUROPE UK FR NL FG GR NR ST
prices are in EUR
ref
part #
description
quantity
112
112G0618
ref: 112
BOLT-UPSET
112G0618
€ 0.50
112A
112G0625
ref: 112A
BOLT-UPSET,6X25
112G0625
€ 4.00
132
132G0616
ref: 132
BOLT-FLANGED-SMALL
132G0616
€ 1.00
132A
132G0645
ref: 132A
BOLT-FLANGED-SMALL
132G0645
€ 2.50
220
220B0612
ref: 220
SCREW-PAN HEAD,6X12
220B0612
€ 1.00
600
600A1200
ref: 600
BALL-STEEL,3/8
600A1200
€ 0.50
670
670B1508
ref: 670
O RING,8MM
670B1508
€ 1.00
13091
130911274
ref: 13091
HOLDER,OIL FILTER
130911274
€ 9.50
13091A
130911333
ref: 13091A
HOLDER,PUMP GEAR
130911333
€ 21.00
13107
131071338
ref: 13107
SHAFT
€ 70.50
13169
131691313
ref: 13169
PLATE,OIL FILTER
131691313
€ 7.00
14025
140251422
ref: 14025
COVER,OIL FILTER,F.BL
140251422
€ 31.00
16082
160821138
ref: 16082
PUMP-ASSY-OIL
€ 253.00
16085
160851283
ref: 16085
GEAR
160851283
€ 97.50
16099
16099003
ref: 16099
FILTER,OIL
16099003
€ 6.50
16111
16111003
ref: 16111
STRAINER,OIL
16111003
€ 10.00
16126
161261108
ref: 16126
VALVE,OIL FILTER
161261108
€ 29.00
16130
161301058
ref: 16130
VALVE-ASSY-RELIEF
161301058
€ 30.00
16142
161421088
ref: 16142
COVER-PUMP,LH
161421088
€ 32.00
16142A
161421089
ref: 16142A
COVER-PUMP,RH
161421089
€ 32.00
16154
161541007
ref: 16154
ROTOR ASSY,OIL PUMP
161541007
€ 51.50
16154A
161541078
ref: 16154A
ROTOR-PUMP
161541078
€ 51.50
32099
320991083
ref: 32099
CASE,OIL FILTER
320991083
€ 89.00
49065
490651076
ref: 49065
FILTER-OIL
€ 22.50
92001
920011105
ref: 92001
BOLT,HEX HEAD,6X38
920011105
€ 3.00
92002
920021431
ref: 92002
BOLT,6X38
920021431
€ 3.50
92009
920091360
ref: 92009
SCREW,6X16
920091360
€ 2.50
92022
920221012
ref: 92022
WASHER,20.5X30X1
920221012
€ 3.00
92026
920261230
ref: 92026
SPACER,OIL PUMP
€ 2.50
92026A
920261534
ref: 92026A
SPACER
920261534
€ 2.50
92036
920361052
ref: 92036
RING-SNAP,PUMP GEAR
920361052
€ 4.00
92042
92042007
ref: 92042
PIN-DOWEL
92042007
€ 4.00
92043
920431061
ref: 92043
PIN,DOWEL,5X17.8
920431061
€ 3.00
92043A
92043111
ref: 92043A
SPRING PIN
92043111
€ 4.00
92043B
920431213
ref: 92043B
PIN,18X20X12
920431213
€ 4.00
92043C
920431302
ref: 92043C
PIN,DOWEL,8X10
920431302
€ 1.00
92055
92055077
ref: 92055
O RING
92055077
€ 4.00
92062
920621055
ref: 92062
NOZZLE
920621055
€ 6.50
92081
920811018
ref: 92081
SPRING,OIL FILTER
920811018
€ 3.00
92081A
92081109
ref: 92081A
SPRING
92081109
€ 7.50
670A
670B2016
ref: 670A
O RING,16MM
670B2016
€ 1.00
670B
670B2018
ref: 670B
O RING,18MM
670B2018
€ 1.00
670C
670D2020
ref: 670C
O RING,20MM
670D2020
€ 4.00
671
671B2590
ref: 671
O RING,90MM
671B2590
€ 6.50
