RADIATOR

ZR1100C1 ZRX1100 1997 UNITED KINGDOM AR FG GR ST

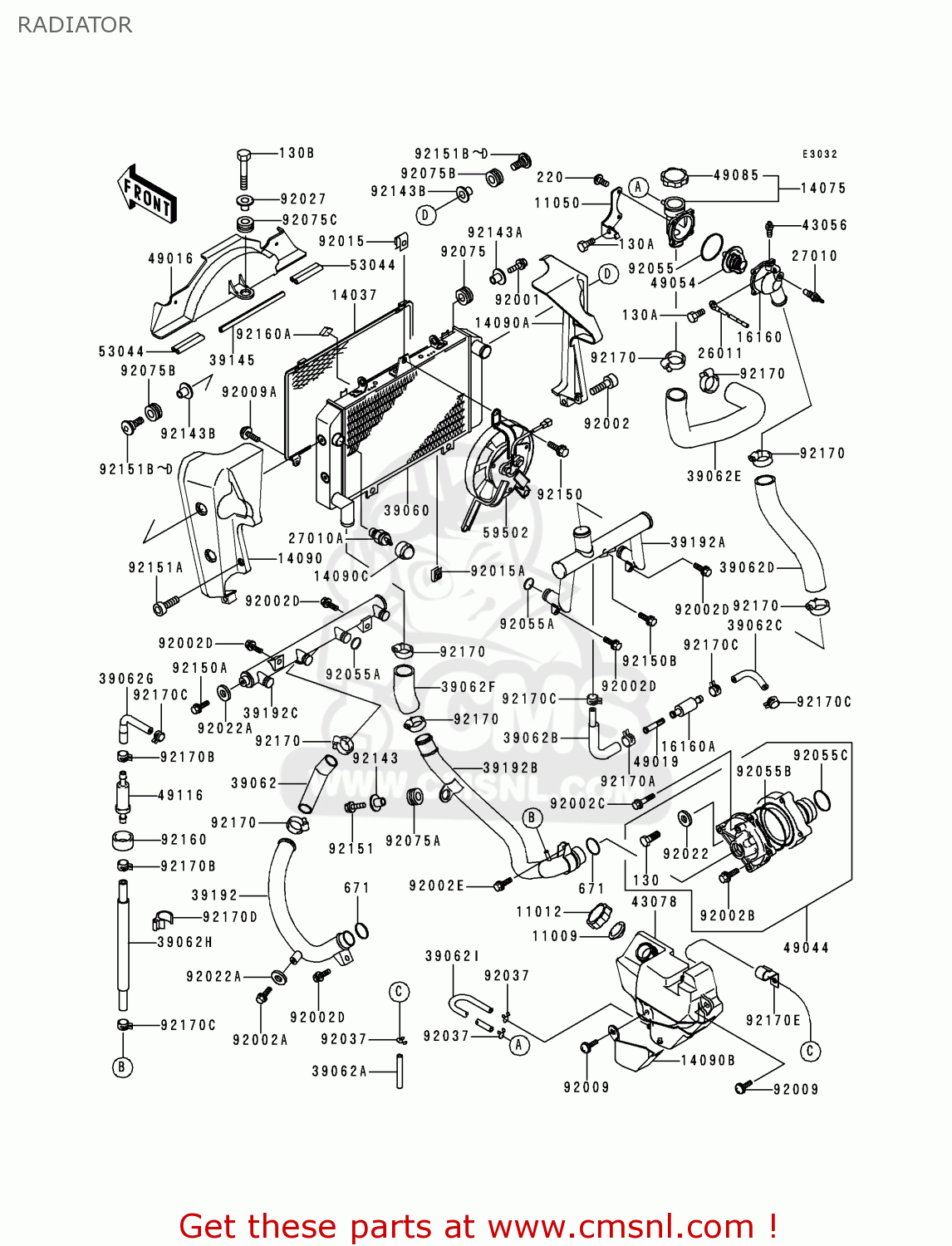

Radiator diagram ZR1100C1 ZRX1100 1997 UNITED KINGDOM AR FG GR ST

RADIATOR ZR1100C1 ZRX1100 1997 UNITED KINGDOM AR FG GR ST
RADIATOR ZR1100C1 ZRX1100 1997 UNITED KINGDOM AR FG GR ST
RADIATOR ZR1100C1 ZRX1100 1997 UNITED KINGDOM AR FG GR ST
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
110091145
€ 1.00
11012
110121084
ref: 11012
CAP
110121084
€ 1.50
11050
110501118
ref: 11050
BRACKET
€ 6.00
14037
140371235
ref: 14037
SCREEN,RADIATOR
€ 77.50
14075
140751068
ref: 14075
CAP-ASSY
140751068
€ 134.00
14090
140901773
ref: 14090
COVER,RADIATOR,LH
140901773
€ 116.50
14090A
140901774
ref: 14090A
COVER,RADIATOR,RH
€ 110.50
14090B
140901791
ref: 14090B
COVER,RESERVOIR
€ 17.00
14090C
140901830
ref: 14090C
COVER
140901830
€ 3.00
16160
161601117
ref: 16160
BODY,THERMOSTAT
161601117
€ 59.00
16160A
161601151
ref: 16160A
BODY,FILTER
161601151
€ 6.50
26011
260111590
ref: 26011
WIRE-LEAD,(-)
€ 4.00
27010
270101346
ref: 27010
SWITCH,SENSOR WATER
270101346
€ 85.00
27010A
270101372
ref: 27010A
SWITCH
270101372
€ 54.50
39060
390601170
ref: 39060
RADIATOR
390601170
€ 781.50
39062
390621276
ref: 39062
HOSE-COOLING,PUMP-CYL
390621276
€ 24.50
39062A
390621533
ref: 39062A
HOSE-COOLING,OVERFLOW
390621533
€ 15.50
39062B
390621655
ref: 39062B
HOSE-COOLING,HEAD PIP
390621655
€ 9.50
39062C
390621656
ref: 39062C
HOSE-COOLING,FILTER-C
€ 4.00
39062D
390621704
ref: 39062D
HOSE-COOLING
390621704
€ 20.00
39062E
390621705
ref: 39062E
HOSE-COOLING
390621705
€ 27.50
39062F
390621706
ref: 39062F
HOSE-COOLING
390621706
€ 12.00
39062G
390621707
ref: 39062G
HOSE-COOLING
390621707
€ 6.50
39062H
390621708
ref: 39062H
HOSE-COOLING
390621708
€ 7.50
39062I
390621714
ref: 39062I
HOSE-COOLING
390621714
€ 11.00
39145
391451055
ref: 39145
TRIM-SEAL,L=175
391451055
€ 8.50
39192
391921011
ref: 39192
PIPE-WATER,PUMP-CYLIN
391921011
€ 56.00
39192A
391921093
ref: 39192A
PIPE-WATER
391921093
€ 106.00
39192B
391921121
ref: 39192B
PIPE-WATER
391921121
€ 109.00
39192C
391921122
ref: 39192C
PIPE-WATER
€ 72.50
43056
43056003
ref: 43056
BREATHER-BRAKE
43056003
€ 16.50
43078
430781155
ref: 43078
RESERVOIR
€ 42.50
49016
490161190
ref: 49016
COVER-SEAL
490161190
€ 23.50
49019
490191068
ref: 49019
FILTER-FUEL
490191068
€ 4.00
49044
490441076
ref: 49044
PUMP-WATER
€ 252.50
49054
490541051
ref: 49054
THERMOSTAT
490541051
€ 44.50
49085
490851067
ref: 49085
CAP-ASSY-PRESSURE
490851067
€ 39.50
49116
491161081
ref: 49116
VALVE-ASSY
491161081
€ 85.00
53044
530441220
ref: 53044
TRIM
530441220
€ 4.50
59502
595021126
ref: 59502
FAN-ASSY
€ 613.50
92001
920011947
ref: 92001
BOLT,6X20
920011947
€ 3.00
92002
920021093
ref: 92002
BOLT,6X25
920021093
€ 3.00
92002A
920021099
ref: 92002A
BOLT,6X16
€ 1.50
92002B
920021392
ref: 92002B
BOLT,6X22
920021392
€ 3.00
92002C
920021566
ref: 92002C
BOLT,6X40
920021566
€ 3.00
92002D
920021569
ref: 92002D
BOLT,6X12
920021569
€ 2.50
92002E
920021571
ref: 92002E
BOLT,6X16
920021571
€ 4.00
92009
920091181
ref: 92009
SCREW,6X18
920091181
€ 2.00
92009A
920091842
ref: 92009A
SCREW
€ 2.00
92015
920151487
ref: 92015
NUT
920151487
€ 3.00
92015A
920151758
ref: 92015A
NUT
920151758
€ 4.50
92022
920221976
ref: 92022
WASHER,6.2X6.2X1.0
920221976
€ 4.00
92022A
92022304
ref: 92022A
WASHER,PLAIN
92022304
€ 2.50
92027
920271450
ref: 92027
COLLAR,L=13.1,BLACK
920271450
€ 4.00
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
92037147
€ 4.50
92055
92055112
ref: 92055
O RING, 53.5 M/M
92055112
€ 4.00
92055A
920551282
ref: 92055A
RING-O
920551282
€ 3.00
92055B
920551423
ref: 92055B
RING-O,WATER PUMP INS
920551423
€ 6.00
92055C
920551424
ref: 92055C
RING-O,33.2X2.4
920551424
€ 4.00
92075
920751123
ref: 92075
DAMPER,RUBBER
920751123
€ 3.00
92075A
920751185
ref: 92075A
DAMPER RUBBER
920751185
€ 3.00
92075B
920751634
ref: 92075B
DAMPER
920751634
€ 3.00
92075C
920751690
ref: 92075C
DAMPER,10X24X12
920751690
€ 3.00
92143
921431016
ref: 92143
COLLAR,L=9.6
921431016
€ 4.00
92143A
921431353
ref: 92143A
COLLAR
921431353
€ 5.50
92143B
921431962
ref: 92143B
COLLAR
921431962
€ 4.00
92150
921501186
ref: 92150
BOLT
921501186
€ 3.00
92150A
921501826
ref: 92150A
BOLT,6X12
921501826
€ 2.50
92150B
921501841
ref: 92150B
BOLT,6X12
€ 3.50
92151
921511207
ref: 92151
BOLT,6X18
921511207
€ 2.50
92151A
921511210
ref: 92151A
BOLT,SOCKET,6X18
921511210
€ 2.50
92151B
921511217
ref: 92151B
BOLT
921511217
€ 4.50
92151D
921511265
ref: 92151D
BOLT,6X22
921511265
€ 4.50
92160
921601545
ref: 92160
DAMPER,CHECKVALVE
€ 2.50
92160A
921601863
ref: 92160A
DAMPER
921601863
€ 3.00
92170
921701284
ref: 92170
CLAMP,CABLE
921701284
€ 7.50
92170A
921701491
ref: 92170A
CLAMP
921701491
€ 5.00
130
130C0610
ref: 130
BOLT-FLANGED,6X10,BLA
130C0610
€ 1.50
130A
130J0612
ref: 130A
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
130B
130J0625
ref: 130B
BOLT-FLANGED,6X25
130J0625
€ 2.00
220
220D0514
ref: 220
SCREW-PAN-CROS
€ 2.50
671
671B2525
ref: 671
O RING,25MM
671B2525
€ 3.00
92170B
921701492
ref: 92170B
CLAMP
921701492
€ 3.00
92170C
921701493
ref: 92170C
CLAMP
921701493
€ 3.00
92170D
921701740
ref: 92170D
CLAMP
€ 3.00
92170E
921701767
ref: 92170E
CLAMP
921701767
€ 4.50
