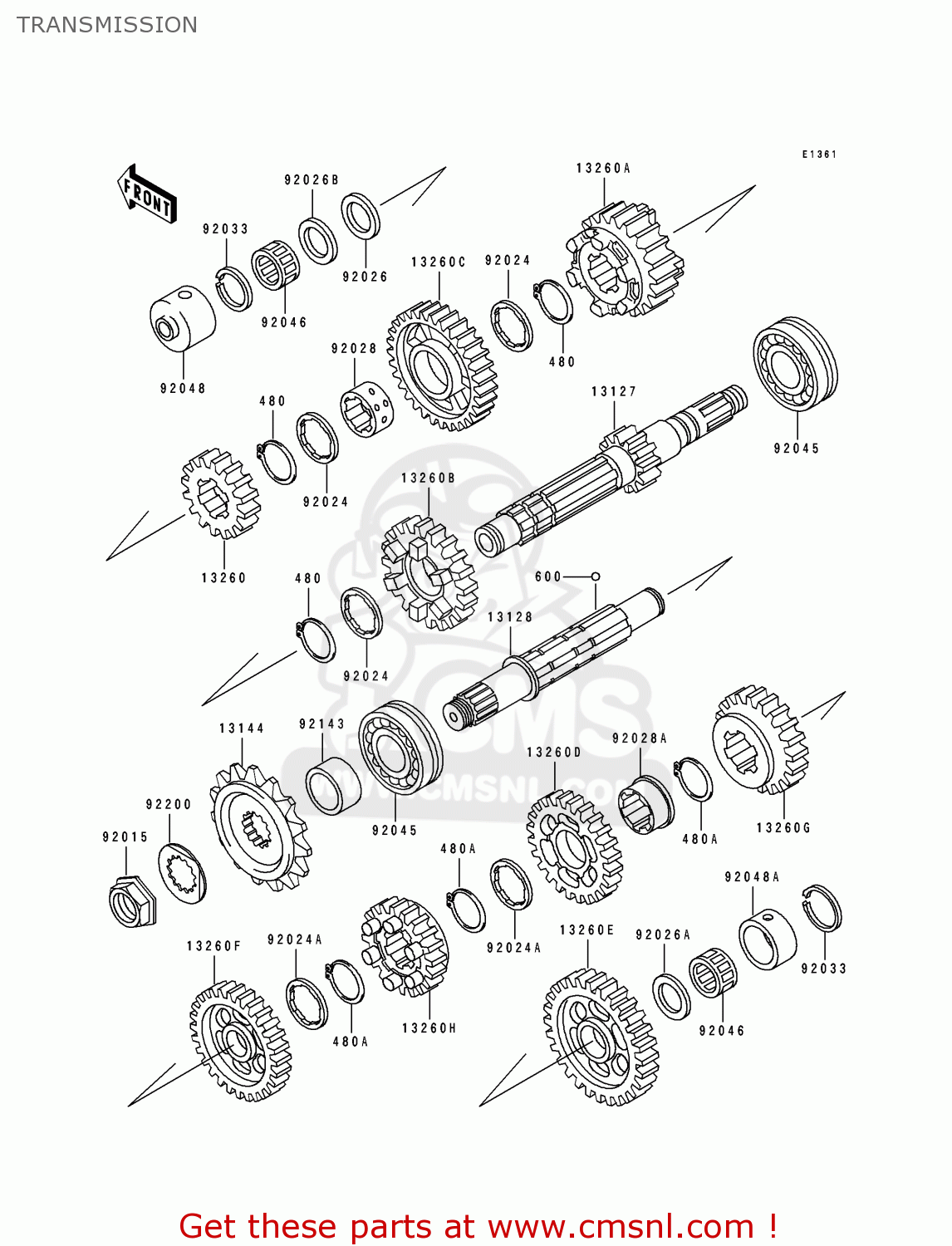

TRANSMISSION

ref

part #

description

quantity

480

480J2800
ref: 480

CIRCLIP-TYPE-C,28MM

€ 3.50

480A

480J2900
ref: 480A

CIRCLIP

€ 3.50

600

600A0500
ref: 600

BALL-STEEL,5/32

€ 0.50

13127

131271215
ref: 13127

SHAFT-TRANSMISSION IN

€ 248.50

13128

131281187
ref: 13128

SHAFT-TRANSMISSION OU

€ 205.50

13144

131441200
ref: 13144

SPROCKET-OUTPUT,16T

€ 39.00

13260

132601253
ref: 13260

GEAR,INPUT 2ND,21T

€ 112.00

13260A

132601255
ref: 13260A

GEAR,INPUT 3RD,24T

€ 173.00

13260B

132601257
ref: 13260B

GEAR,INPUT 4TH,27T

€ 123.50

13260C

132601259
ref: 13260C

GEAR,INPUT TOP,29T

€ 138.00

13260D

132601286
ref: 13260D

GEAR,OUTPUT 3RD,31T

€ 173.00

13260E

132601303
ref: 13260E

GEAR,OUTPUT LOW,40T

€ 163.50

13260F

132601304
ref: 13260F

GEAR,OUTPUT 2ND,35T

€ 171.50

13260G

132601305
ref: 13260G

GEAR,OUTPUT 4TH,29T

€ 120.00

13260H

132601306
ref: 13260H

GEAR,OUTPUT TOP,27T

€ 171.50

92015

920151210
ref: 92015

NUT,20MM

€ 12.00

92024

92024042
ref: 92024

WASHER,TOOTHED,26X35.

€ 7.50

92024A

92024043
ref: 92024A

WASHER,TOOTHED,30.3X4

€ 8.00

92026

920261020
ref: 92026

SPACER,22X35.5X1.0

€ 3.50

92026A

920261225
ref: 92026A

SPACER,22X35.5X2.4

€ 6.50

92026B

920261226
ref: 92026B

SPACER,22X35.5X1.8

€ 6.50

92028

920281124
ref: 92028

BUSHING,TOP GEAR

€ 31.00

92028A

920281403
ref: 92028A

BUSHING

€ 29.50

92033

92033025
ref: 92033

CIRCLIP,25MM

€ 3.00

92045

920451197
ref: 92045

BEARING-BALL

€ 50.00

92046

92046031
ref: 92046

BEARING-NEEDLE,FWF-22

€ 19.50

92048

920481052
ref: 92048

RACE,INPUT SHAFT

€ 59.50

92048A

920481053
ref: 92048A

RACE,30X38X15

€ 27.50

92143

921431558
ref: 92143

COLLAR,30X40X38

€ 43.00

92200

922001234
ref: 92200

WASHER,TOOTHED,23.9X4

€ 4.00
