MUFFLER(S)

ZR1100A3 ZEPHYR 1100 1994 EUROPE UK FR AR FG GR ST

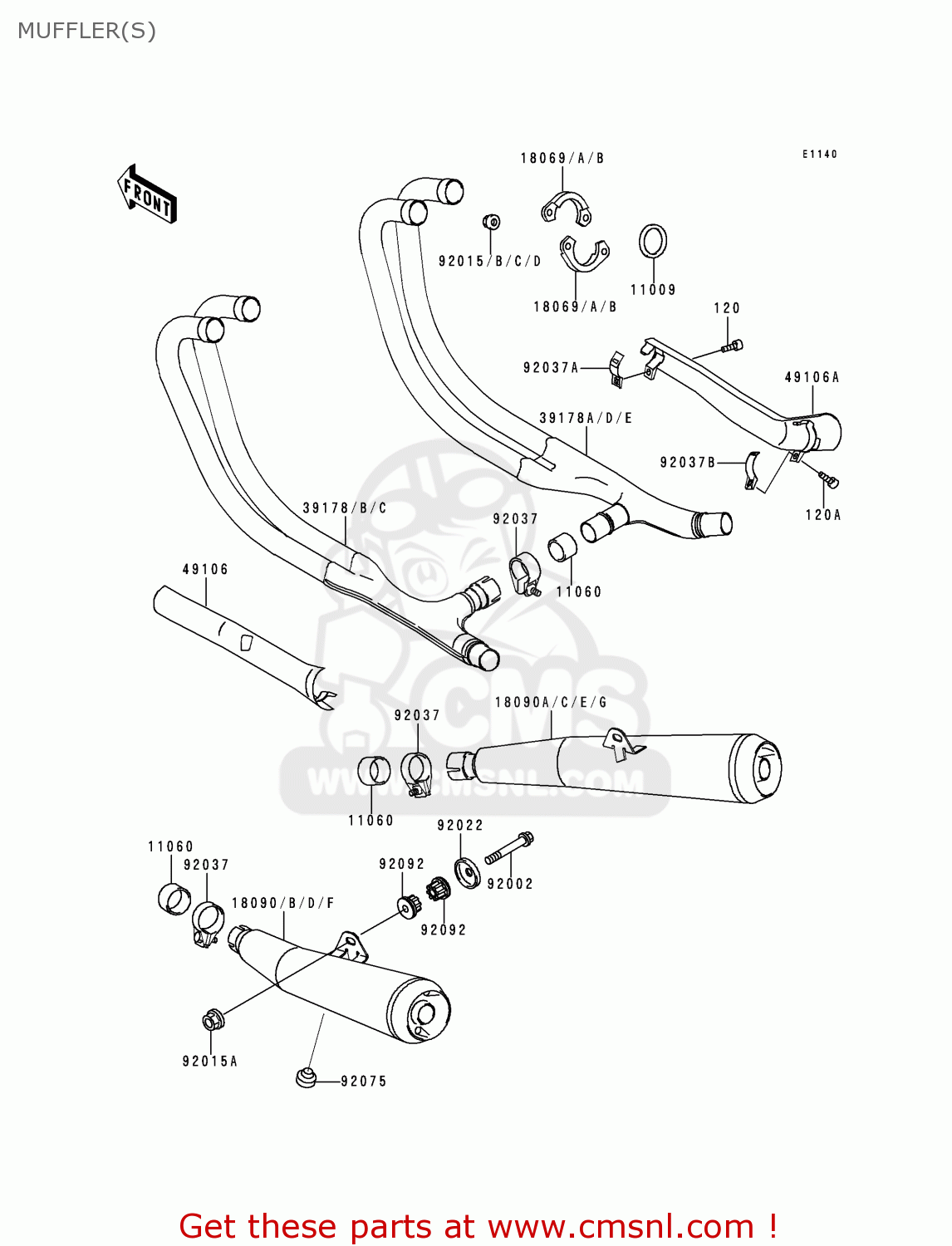

Muffler(s) diagram ZR1100A3 ZEPHYR 1100 1994 EUROPE UK FR AR FG GR ST

MUFFLER(S) ZR1100A3 ZEPHYR 1100 1994 EUROPE UK FR AR FG GR ST
MUFFLER(S) ZR1100A3 ZEPHYR 1100 1994 EUROPE UK FR AR FG GR ST
MUFFLER(S) ZR1100A3 ZEPHYR 1100 1994 EUROPE UK FR AR FG GR ST
prices are in EUR
ref
part #
description
quantity
11009
110091995
ref: 11009
GASKET,EXHAUST PIPE (NAS)
110091995
€ 8.50
11060
110601068
ref: 11060
GASKET,MANIFOLD EXHAU (NAS)
110601068
€ 20.50
18069A
180691113
ref: 18069A
HOLDER-EXHAUST PIPE
180691113
€ 21.50
18090
180901217
ref: 18090
AREUFGFRGRUK
BODY-COMP-MUFFLER,LH
180901217
€ 500.00
18090A
180901218
ref: 18090A
AREUFGFRGRUK
BODY-COMP-MUFFLER,RH
€ 500.00
18090B
180901404
ref: 18090B
ST
BODY-COMP-MUFFLER,LH
€ 500.00
18090C
180901405
ref: 18090C
ST
BODY-COMP-MUFFLER,RH
€ 500.00
39178B
391781211
ref: 39178B
MANIFOLD-COMP-EXHAUST
€ 347.50
39178D
391781212
ref: 39178D
MANIFOLD-COMP-EXHAUST
€ 347.50
49106
491061142
ref: 49106
COVER-MUFFLER,LH
€ 52.50
49106A
491061143
ref: 49106A
COVER-MUFFLER,RH
€ 52.50
92002
920021127
ref: 92002
BOLT,10X55
920021127
€ 6.00
120
120Z0614
ref: 120
BOLT-SOCKET,6X14
120Z0614
€ 2.50
120A
120Z0620
ref: 120A
BOLT-SOCKET,6X20
120Z0620
€ 3.00
92015A
920151387
ref: 92015A
NUT,FLANGED,10MM
920151387
€ 2.50
92015B
920151889
ref: 92015B
NUT
920151889
€ 6.00
92015D
920151923
ref: 92015D
NUT
920151923
€ 7.50
92022
92022289
ref: 92022
WASHER,PLAIN
92022289
€ 11.50
92037
920371258
ref: 92037
CLAMP,MUFFLER
920371258
€ 10.50
92037A
920371699
ref: 92037A
CLAMP,EXHAUST PIPE CO
920371699
€ 8.50
92037B
920371752
ref: 92037B
CLAMP,MUFFLER COVER,F
920371752
€ 8.00
92075
920751002
ref: 92075
DAMPER RUBBER,MAIN ST
920751002
€ 4.00
92092
920921013
ref: 92092
BUSHING-RUBBER,MUFFLE
920921013
€ 11.50
