Genuine ZR Kawasaki Parts delivered quickly!


ENGINE COVER(S)

ZR1100A2 ZEPHYR 1100 1993 EUROPE UK FR AR FG GR IT NR SD SP ST

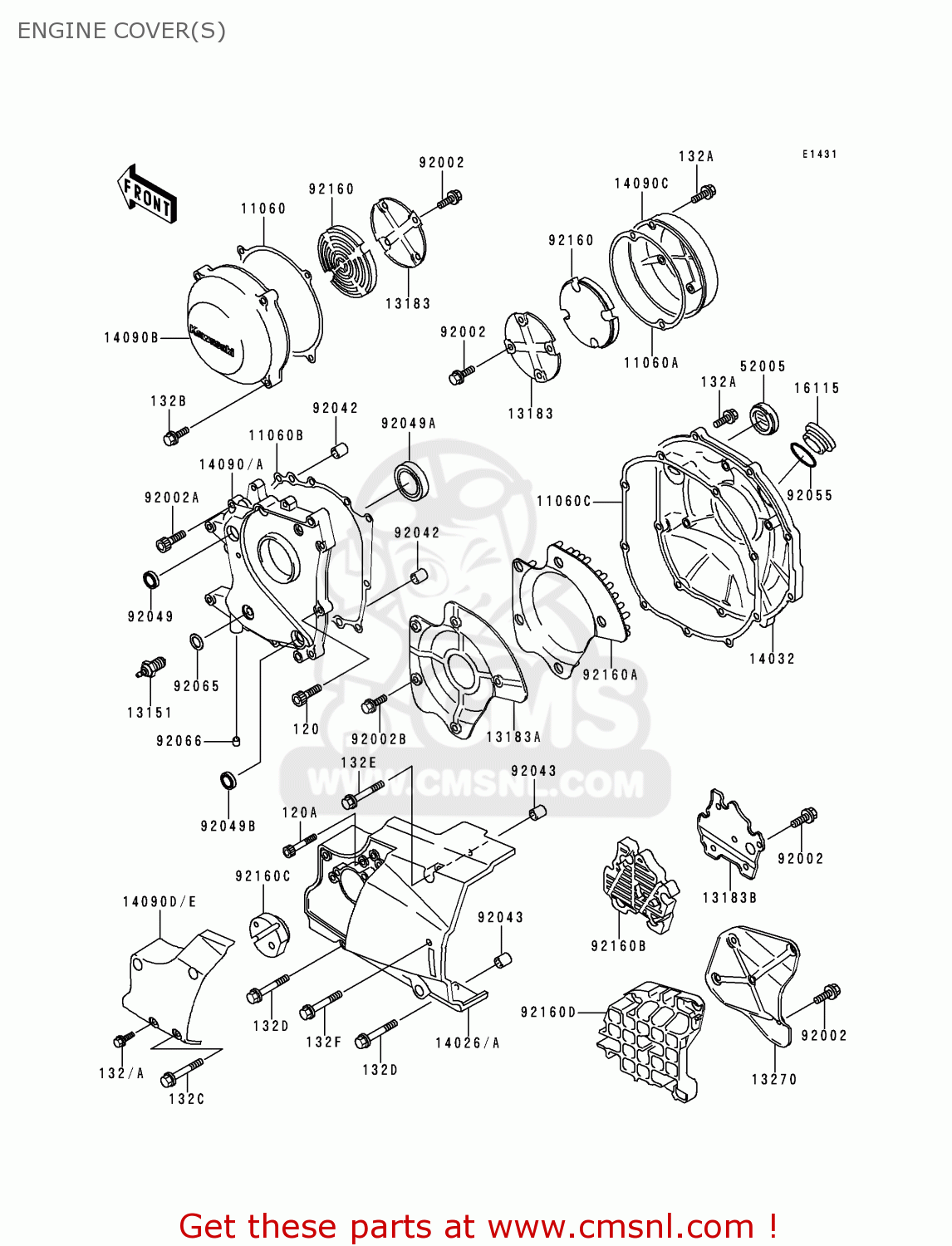

Engine cover(s) diagram ZR1100A2 ZEPHYR 1100 1993 EUROPE UK FR AR FG GR IT NR SD SP ST

ENGINE COVER(S) ZR1100A2 ZEPHYR 1100 1993 EUROPE UK FR AR FG GR IT NR SD SP ST
ENGINE COVER(S) ZR1100A2 ZEPHYR 1100 1993 EUROPE UK FR AR FG GR IT NR SD SP ST
ENGINE COVER(S) ZR1100A2 ZEPHYR 1100 1993 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
120
120P0625
ref: 120
BOLT,6X25
120P0625
€ 1.50
132
132E0612
ref: 132
BOLT-FLANGED-SMALL
132E0612
€ 3.50
132A
132E0625
ref: 132A
BOLT-FLANGED-SMALL
132E0625
€ 3.00
11060
110601097
ref: 11060
GASKET,LH,COVER (NAS)
110601097
€ 7.00
11060A
110601098
ref: 11060A
GASKET,PULSING COIL C (NAS)
110601098
€ 5.50
11060B
110601265
ref: 11060B
GASKET,GEAR CASE (NAS)
110601265
€ 25.50
11060C
110601284
ref: 11060C
GASKET,CLUTCH COVER (NAS)
110601284
€ 23.50
13151
131511080
ref: 13151
SWITCH-COMP,NEUTRAL
131511080
€ 9.00
13183
131831789
ref: 13183
PLATE
131831789
€ 7.00
13183A
131831790
ref: 13183A
PLATE,CLUTCH COVER (NAS)
131831790
€ 10.00
13183B
131831861
ref: 13183B
PLATE,CHAIN COVER
€ 10.00
13270
132701416
ref: 13270
PLATE,CHAIN COVER
€ 13.50
14026A
140261219
ref: 14026A
COVER-CHAIN
€ 145.50
14032
140321424
ref: 14032
COVER-CLUTCH
140321424
€ 221.00
14090
140901172
ref: 14090
COVER,GEAR CASE
€ 164.50
14090B
140901570
ref: 14090B
COVER,LH
140901570
€ 112.00
14090C
140901571
ref: 14090C
COVER,PULSING COIL
140901571
€ 79.50
14090E
140901587
ref: 14090E
COVER,CLUTCH RELEASE
€ 48.00
16115
161151056
ref: 16115
CAP-OIL FILLER
161151056
€ 19.50
52005
520051009
ref: 52005
GAUGE,OIL LEVEL
520051009
€ 12.00
92002
920021449
ref: 92002
BOLT,6X10
920021449
€ 2.50
92002A
920021696
ref: 92002A
BOLT,SOCKET,6X25
920021696
€ 1.50
92002B
920021944
ref: 92002B
BOLT,6X8
920021944
€ 3.00
92042
92042007
ref: 92042
PIN-DOWEL
92042007
€ 4.00
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92049
920491017
ref: 92049
SEAL-OIL,SD-8187
920491017
€ 6.50
92049A
920491070
ref: 92049A
SEAL-OIL,AE2343F0
920491070
€ 11.50
92049B
920491186
ref: 92049B
SEAL-OIL,TB13205
920491186
€ 5.50
92055
92055049
ref: 92055
'0'RING,31MM
92055049
€ 2.50
92065
92065058
ref: 92065
GASKET, 10,5X16X1 (NAS)
92065058
€ 2.50
92066
920661012
ref: 92066
PLUG,OIL LINE,7.2X8
920661012
€ 4.00
92160
921601332
ref: 92160
DAMPER
921601332
€ 16.00
92160A
921601333
ref: 92160A
DAMPER,CLUTCH COVER
921601333
€ 17.50
92160B
921601371
ref: 92160B
DAMPER,CHAIN COVER
€ 24.50
92160C
921601373
ref: 92160C
DAMPER,CLUTCH RELEASE
€ 7.50
92160D
921601599
ref: 92160D
DAMPER,CHAIN COVER
€ 26.50
132B
132E0630
ref: 132B
BOLT-FLANGED-SMALL
132E0630
€ 3.00
132C
132E0645
ref: 132C
BOLT-FLANGED-SMALL
132E0645
€ 3.00
132D
132E0650
ref: 132D
BOLT-FLANGED-SMALL
€ 3.00
132E
132E0670
ref: 132E
BOLT-FLANGED-SMALL
132E0670
€ 3.00
