OIL PAN

ZR1000A6F Z1000 2006 USA CALIFORNIA CANADA

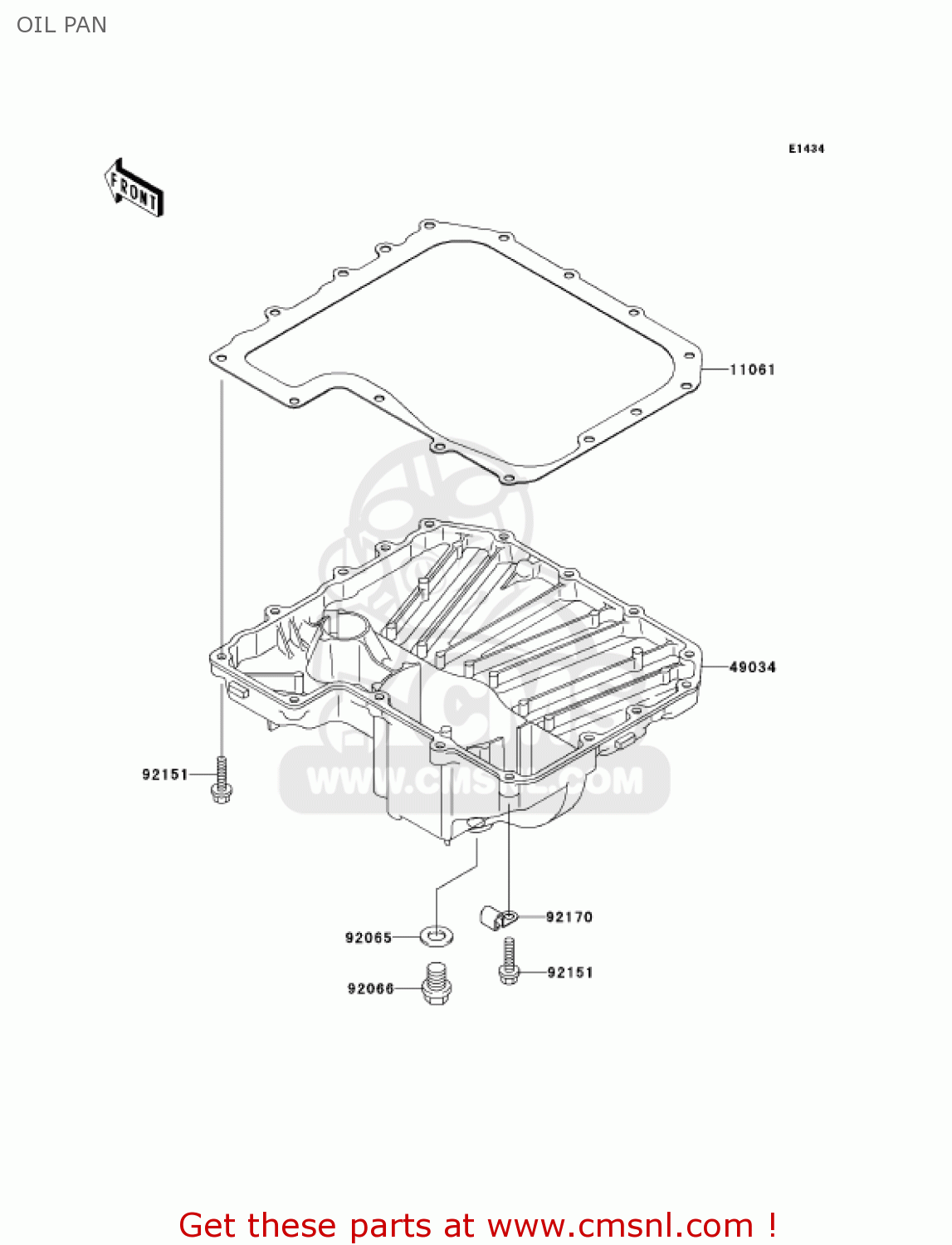

Oil pan diagram ZR1000A6F Z1000 2006 USA CALIFORNIA CANADA

OIL PAN ZR1000A6F Z1000 2006 USA CALIFORNIA CANADA

OIL PAN ZR1000A6F Z1000 2006 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

11061

110611167
ref: 11061

GASKET,OIL PAN (NAS)

€ 23.00

49034

490340002
ref: 49034

PAN-OIL

€ 205.00

92065

92065097
ref: 92065

GASKET,DRAIN PLUG BOL (NAS)

€ 1.00

92066

920661174
ref: 92066

PLUG,OIL DRAIN,12X15

€ 4.00

92151

921511546
ref: 92151

BOLT,6X25

€ 1.50

92170

921701804
ref: 92170

CLAMP

€ 3.00
