Genuine ZR Kawasaki Parts delivered quickly!


GEAR CHANGE MECHANISM

ZR1000A3 Z1000 2005 USA CALIFORNIA CANADA

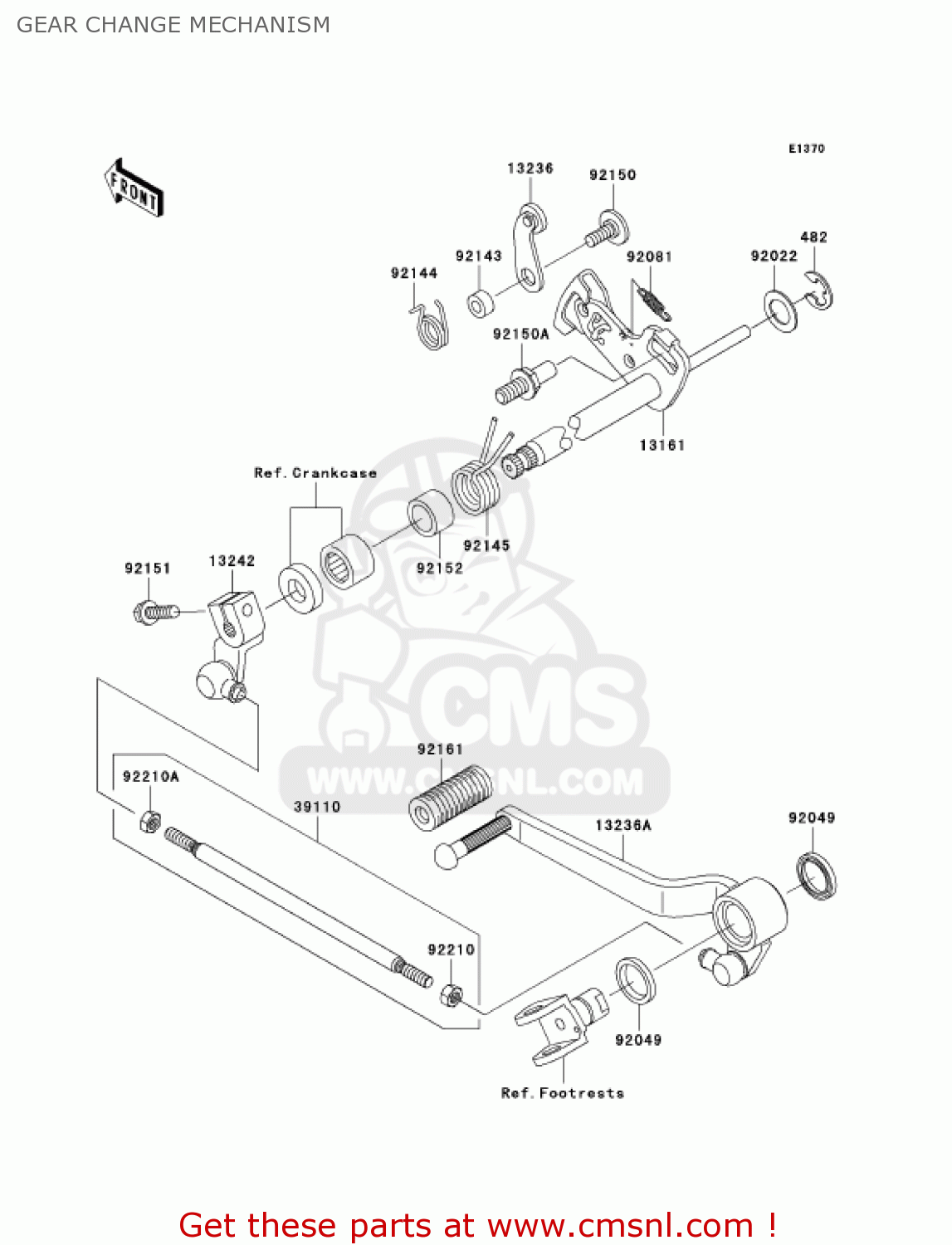

Gear change mechanism diagram ZR1000A3 Z1000 2005 USA CALIFORNIA CANADA

GEAR CHANGE MECHANISM ZR1000A3 Z1000 2005 USA CALIFORNIA CANADA
GEAR CHANGE MECHANISM ZR1000A3 Z1000 2005 USA CALIFORNIA CANADA
GEAR CHANGE MECHANISM ZR1000A3 Z1000 2005 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
482
482J0200
ref: 482
CIRCLIP-TYPE-E,12MM
482J0200
€ 2.50
13161
131611292
ref: 13161
LEVER-COMP-CHANGE SHA
131611292
€ 76.00
13236
132361243
ref: 13236
LEVER-COMP
132361243
€ 13.00
13236A
132361365
ref: 13236A
LEVER-COMP,PEDAL
132361365
€ 51.50
13242
132421395
ref: 13242
LEVER-ASSY-CHANGE
132421395
€ 40.50
39110
391101131
ref: 39110
ROD-ASSY-TIE
€ 17.50
92022
920221628
ref: 92022
WASHER,CHANGE SHAFT
920221628
€ 4.50
92049
920491492
ref: 92049
SEAL-OIL
920491492
€ 6.00
92081
920811708
ref: 92081
SPRING,PAWL RETURN
920811708
€ 4.00
92143
921431595
ref: 92143
COLLAR
921431595
€ 6.50
92144
921441857
ref: 92144
SPRING,GEAR POSITION
921441857
€ 6.00
92145
921451122
ref: 92145
SPRING
921451122
€ 6.50
92150
921501737
ref: 92150
BOLT
921501737
€ 7.00
92150A
921501869
ref: 92150A
BOLT,RETURN SPRING
€ 7.00
92151
921511226
ref: 92151
BOLT,6X20
921511226
€ 1.50
92152
921521383
ref: 92152
COLLAR
921521383
€ 2.50
92161
921611300
ref: 92161
DAMPER,CHANGE PEDAL
921611300
€ 4.00
92210
922101100
ref: 92210
NUT
922101100
€ 1.50
92210A
922101101
ref: 92210A
NUT
922101101
€ 1.50
