DRIVE SHAFT/FINAL GEAR

ZG1200B14 VOYAGER XII 2000 USA CALIFORNIA CANADA

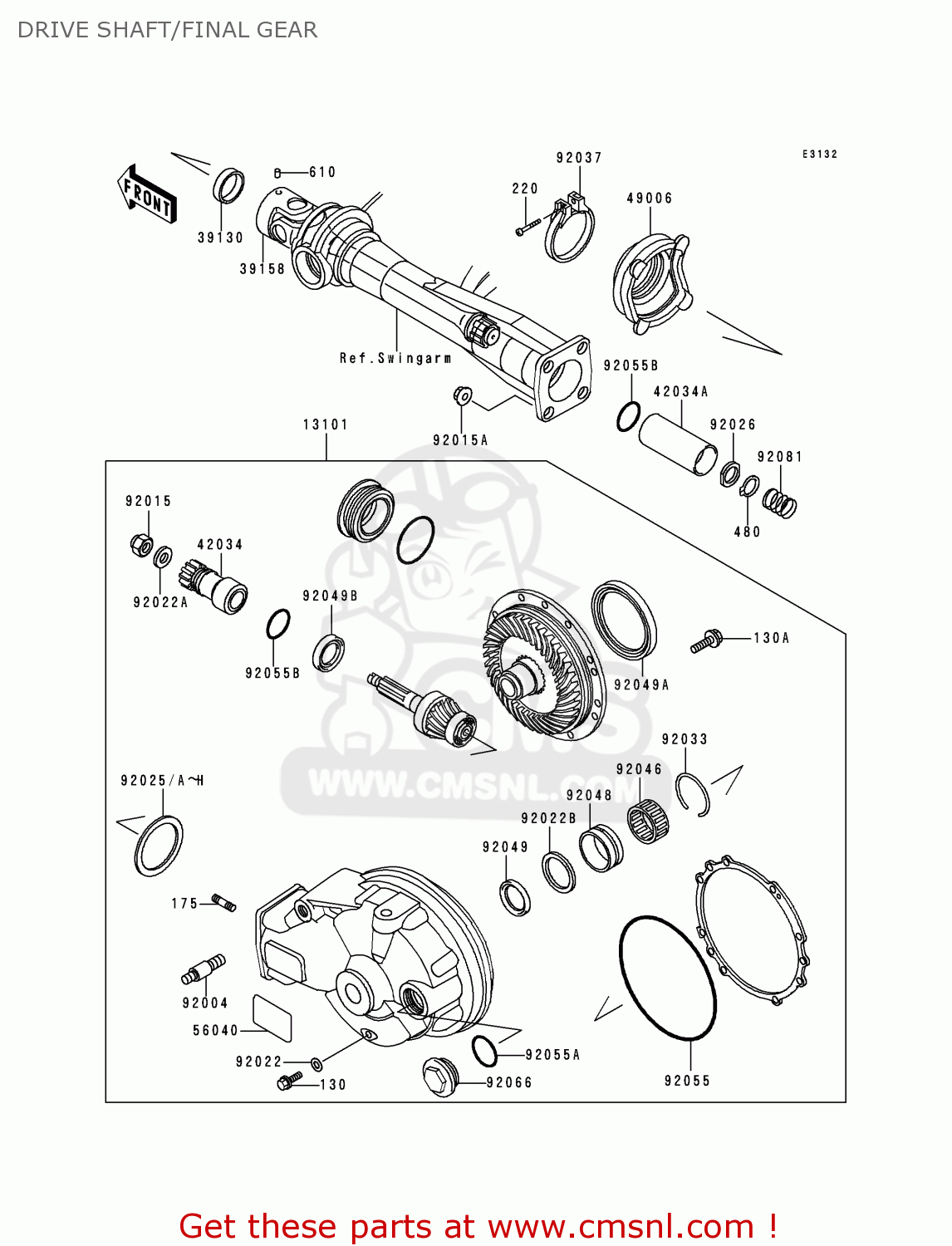

Drive shaft/final gear diagram ZG1200B14 VOYAGER XII 2000 USA CALIFORNIA CANADA

DRIVE SHAFT/FINAL GEAR ZG1200B14 VOYAGER XII 2000 USA CALIFORNIA CANADA
DRIVE SHAFT/FINAL GEAR ZG1200B14 VOYAGER XII 2000 USA CALIFORNIA CANADA
DRIVE SHAFT/FINAL GEAR ZG1200B14 VOYAGER XII 2000 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130X0812
ref: 130
BOLT-FLANGED
€ 2.50
130A
130Y0825
ref: 130A
BOLT-FLANGED
130Y0825
€ 2.50
175
175G1025
ref: 175
BOLT-STUD-FINE
€ 4.00
220
220B0430
ref: 220
SCREW-PAN-CROS
220B0430
€ 0.50
13101
1310111567J
ref: 13101
GEAR-ASSY,M.SILVER
€ 3,063.50
39130
391301002
ref: 39130
SPRING,LEAF
391301002
€ 3.00
39158
391581058
ref: 39158
SHAFT-ASSY-DRIVE
€ 309.00
42034
420341085
ref: 42034
COUPLING
420341085
€ 58.50
42034A
420341092
ref: 42034A
COUPLING,PROPELLER SH
420341092
€ 78.00
49006
490061188
ref: 49006
BOOT
490061188
€ 29.00
56040
560401230
ref: 56040
LABEL,WARNING,OIL
€ 3.00
92004
920041047
ref: 92004
STUD,RR SHOCKABSORBER
920041047
€ 10.00
92015
920151059
ref: 92015
NUT,16MM
920151059
€ 7.50
92015A
920151649
ref: 92015A
NUT,10MM
920151649
€ 3.50
92022
920221086
ref: 92022
WASHER,8.2X16X1
920221086
€ 2.50
92022A
920221105
ref: 92022A
WASHER,16X32X3.2
920221105
€ 7.00
92022B
920221294
ref: 92022B
WASHER,39X49.5X1
920221294
€ 4.50
92025
920251733
ref: 92025
SHIM,T=0.10
920251733
€ 14.00
92025A
920251734
ref: 92025A
SHIM,T=0.15
920251734
€ 10.50
92025B
920251735
ref: 92025B
SHIM,T=0.50
920251735
€ 8.50
92025C
920251736
ref: 92025C
SHIM,T=0.60
920251736
€ 6.00
92025D
920251737
ref: 92025D
SHIM,T=0.70
920251737
€ 7.50
92025E
920251738
ref: 92025E
SHIM,T=0.80
€ 6.00
92025F
920251739
ref: 92025F
SHIM,T=0.90
920251739
€ 6.00
92025G
920251740
ref: 92025G
SHIM,T=1.00
920251740
€ 6.00
92025H
920251741
ref: 92025H
SHIM,T=1.20
€ 6.00
92026
920261085
ref: 92026
SPACER,26.2X36X2
920261085
€ 5.00
92033
920331074
ref: 92033
RING-SNAP,52MM
920331074
€ 3.00
92037
920371112
ref: 92037
CLAMP,BOOT FITTING
920371112
€ 11.50
92046
920461057
ref: 92046
BEARING-NEEDLE,KTV384
920461057
€ 47.00
92048
920481019
ref: 92048
RACE,ORT465021E01
920481019
€ 35.00
92049
920491025
ref: 92049
OIL SEAL,S-35477HS
920491025
€ 10.00
92049A
920491034
ref: 92049A
OIL SEAL,S-831009HS
920491034
€ 26.00
92049B
920491248
ref: 92049B
SEAL-OIL
920491248
€ 15.50
92055
920551039
ref: 92055
RING-O,ID=150.4
920551039
€ 9.50
92055A
920551281
ref: 92055A
RING-O,35.8MM
920551281
€ 4.50
92055B
920551556
ref: 92055B
RING-O,32.7X3.5
920551556
€ 5.00
92066
9206610067J
ref: 92066
PLUG,OIL FILLER CAP,M
9206610067J
€ 10.00
92081
920811183
ref: 92081
SPRING,PROPELLER SHFT
920811183
€ 4.00
480
480J2600
ref: 480
CIRCLIP-TYPE-C,26MM
480J2600
€ 1.50
610
610A0406
ref: 610
ROLLER,4X6
610A0406
€ 2.50
