OIL PUMP

ZG1200B1 VOYAGER XII 1987 USA CALIFORNIA CANADA

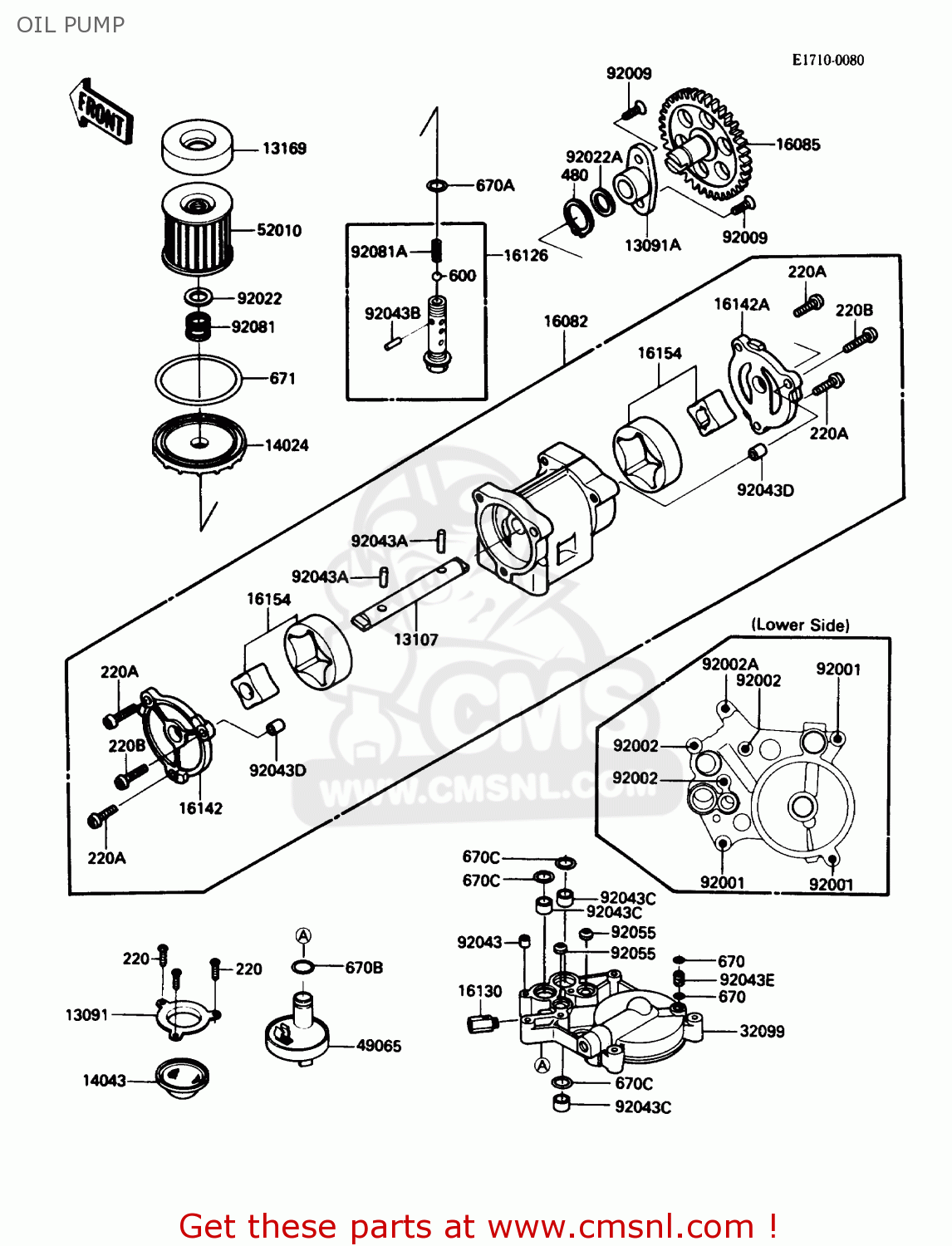

Oil pump diagram ZG1200B1 VOYAGER XII 1987 USA CALIFORNIA CANADA

OIL PUMP ZG1200B1 VOYAGER XII 1987 USA CALIFORNIA CANADA
OIL PUMP ZG1200B1 VOYAGER XII 1987 USA CALIFORNIA CANADA
OIL PUMP ZG1200B1 VOYAGER XII 1987 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
220
220B0612
ref: 220
SCREW-PAN HEAD,6X12
220B0612
€ 1.00
220A
220B0618
ref: 220A
SCREW-PAN HEAD,6X18
220B0618
€ 2.50
220B
220B0625
ref: 220B
SCREW-PAN HEAD,6X25
220B0625
€ 1.50
480
480J1400
ref: 480
CIRCLIP-TYPE-C,14MM
480J1400
€ 3.00
600
600A1200
ref: 600
BALL-STEEL,3/8
600A1200
€ 0.50
670
670B1505
ref: 670
O RING,5MM
670B1505
€ 1.00
670A
670B2016
ref: 670A
O RING,16MM
670B2016
€ 1.00
670B
670B2018
ref: 670B
O RING,18MM
670B2018
€ 1.00
670C
670D2020
ref: 670C
O RING,20MM
670D2020
€ 4.00
13091
130911274
ref: 13091
HOLDER,OIL FILTER
130911274
€ 9.50
13091A
130911333
ref: 13091A
HOLDER,PUMP GEAR
130911333
€ 21.00
13107
131071191
ref: 13107
SHAFT
€ 35.00
13169
131691313
ref: 13169
PLATE,OIL FILTER
131691313
€ 7.00
14024
16101004
ref: 14024
COVER,OIL FILTER
16101004
€ 31.00
14043
16111003
ref: 14043
STRAINER,OIL
16111003
€ 10.00
16082
160821076
ref: 16082
PUMP-ASSY-OIL
€ 248.50
16085
160851153
ref: 16085
GEAR,OIL PUMP,35T
€ 95.50
16126
161261108
ref: 16126
VALVE,OIL FILTER
161261108
€ 29.00
16130
161301001
ref: 16130
VALVE-ASSY-RELIEF
161301001
€ 28.50
16142
161421070
ref: 16142
COVER-PUMP,LH
€ 30.50
16142A
161421071
ref: 16142A
COVER-PUMP,RH
€ 30.50
16154
161541062
ref: 16154
ROTOR-PUMP
€ 40.00
32099
320991082
ref: 32099
CASE,OIL FILTER
€ 107.50
49065
490651055
ref: 49065
OIL FILTER
€ 21.00
52010
16099003
ref: 52010
FILTER,OIL
16099003
€ 6.50
92001
920011105
ref: 92001
BOLT,HEX HEAD,6X38
920011105
€ 3.00
92002
920021431
ref: 92002
BOLT,6X38
920021431
€ 3.50
92002A
920021881
ref: 92002A
BOLT, 6X43
920021881
€ 4.50
92009
920091360
ref: 92009
SCREW,6X16
920091360
€ 2.50
92022
920221012
ref: 92022
WASHER,20.5X30X1
920221012
€ 3.00
92022A
920221495
ref: 92022A
WASHER,14X20X1
920221495
€ 2.50
92043
92042007
ref: 92043
PIN-DOWEL
92042007
€ 4.00
92043A
920431061
ref: 92043A
PIN,DOWEL,5X17.8
920431061
€ 3.00
92043B
92043111
ref: 92043B
SPRING PIN
92043111
€ 4.00
92043C
920431213
ref: 92043C
PIN,18X20X12
920431213
€ 4.00
92043D
920431302
ref: 92043D
PIN,DOWEL,8X10
920431302
€ 1.00
92043E
920431304
ref: 92043E
PIN
€ 6.00
92055
92055077
ref: 92055
O RING
92055077
€ 4.00
92081
920811018
ref: 92081
SPRING,OIL FILTER
920811018
€ 3.00
92081A
92081109
ref: 92081A
SPRING
92081109
€ 7.50
671
671B2590
ref: 671
O RING,90MM
671B2590
€ 6.50
