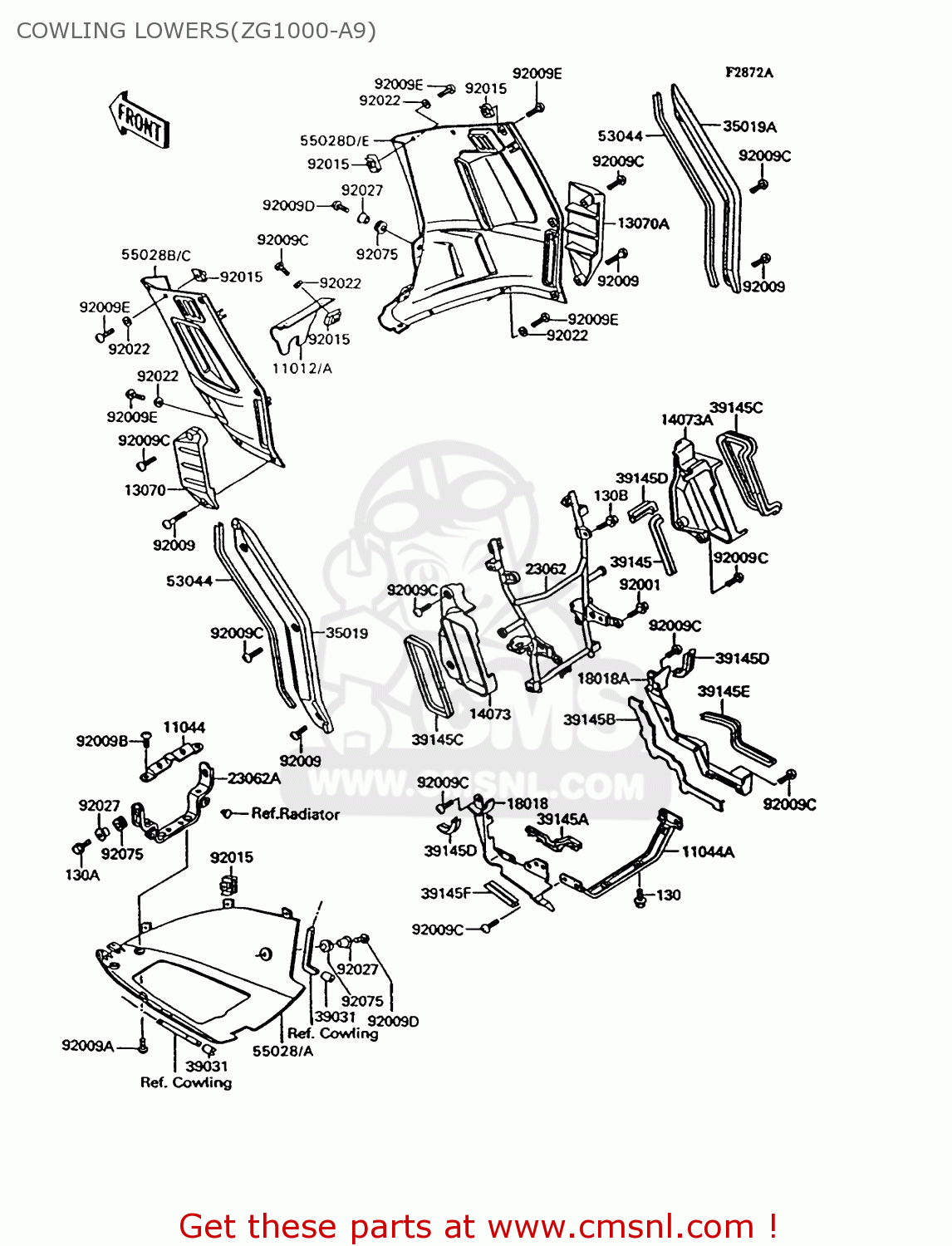

COWLING LOWERS(ZG1000-A9)

ref

part #

description

quantity

11012

110121534JR
ref: 11012
CAUS

RESERVOIR INSPECTION CAP,PEARL CHATEAU GRAY

€ 35.00

11012A

110121534T2
ref: 11012A
CN

CAP,RESERVOIR INSPECT

€ 54.00

11044

110441919
ref: 11044

BRACKET,RESERVOIR TAN

€ 5.50

11044A

110441920
ref: 11044A

BRACKET,LOWER COWLING

€ 25.50

13070

130701171
ref: 13070

GUIDE,SIDE COWLING,LH

€ 32.00

13070A

130701172
ref: 13070A

GUIDE,SIDE COWLING,RH

€ 30.50

14073

140731276
ref: 14073

DUCT,RADIATOR,RR,LH

€ 46.50

14073A

140731284
ref: 14073A

DUCT,RADIATOR,RR,RH

€ 81.50

18018

180181068
ref: 18018

PLATE-HEAT GUARD,SIDE

€ 76.50

18018A

180181069
ref: 18018A

PLATE-HEAT GUARD,SIDE

€ 81.50

23062

230621064
ref: 23062

BRACKET-COMP,RADIATOR

€ 216.50

23062A

230621065
ref: 23062A

BRACKET-COMP,LOWER CO

€ 24.50

35019

350191193
ref: 35019

FLAP,SIDE COWLING,LH

€ 46.00

35019A

350191194
ref: 35019A

FLAP,SIDE COWLING,RH

€ 38.50

39031

390311055
ref: 39031

CAP-END,TRIM

€ 3.50

39145

391451056
ref: 39145

TRIM-SEAL,SIDE COWLIN

€ 10.50

39145A

391451076
ref: 39145A

TRIM-SEAL,HEAT GUARD

€ 15.00

39145B

391451077
ref: 39145B

TRIM-SEAL,HEAT GUARD

€ 30.50

39145C

391451078
ref: 39145C

TRIM-SEAL,DUCT

€ 23.00

39145D

391451079
ref: 39145D

TRIM-SEAL,HEAT GUARD

€ 6.00

39145E

391451080
ref: 39145E

TRIM-SEAL,HEAT GUARD,

€ 15.00

39145F

391451084
ref: 39145F

TRIM-SEAL,HEAT GUARD,

€ 14.50

53044

530441184
ref: 53044

TRIM,INNER COWLING

€ 18.50

55028

550281124JR
ref: 55028
CAUS

FAIRING,LOWER,PEARL CHATEAU GRAY

€ 178.50

55028A

550281124T2
ref: 55028A
CN

COWLING,LWR,P.C.GRAY

€ 302.00

55028B

550281154TP
ref: 55028B
CN

COWLING,SIDE,LH,RED/G

€ 445.50

55028C

5502811542Z
ref: 55028C
CAUS

FAIRING,SIDE,LH,RED/GRAY

€ 232.50

55028D

550281155TP
ref: 55028D
CN

COWLING,SIDE,RH,RED/G

€ 468.00

55028E

5502811552Z
ref: 55028E
CAUS

FAIRING,SIDE,RH,RED/GRAY

€ 232.50

92001

920011844
ref: 92001

BOLT,FLANGED,10X41,BL

€ 5.00

130

130B0610
ref: 130

BOLT,FLANGED,6X10

€ 0.50

130A

130C0618
ref: 130A

BOLT-FLANGED

€ 1.50

130B

130J0812
ref: 130B

BOLT-FLANGED

€ 0.50

92009

920091400
ref: 92009

SCREW,6X22

€ 3.50

92009A

920091402
ref: 92009A

SCREW,6X10

€ 1.50

92009B

920091651
ref: 92009B

SCREW

€ 2.50

92009C

920091662
ref: 92009C

SCREW

€ 2.50

92009D

920091663
ref: 92009D

SCREW

€ 2.50

92009E

920091664
ref: 92009E

SCREW

€ 2.50

92015

920151602
ref: 92015

NUT,6MM

€ 4.50

92022

920221818
ref: 92022

WASHER,6X16X1

€ 1.50

92027

920271935
ref: 92027

COLLAR,L=9.1,BLACK

€ 4.00

92075

920751634
ref: 92075

DAMPER

€ 3.00
