IGNITION SWITCH(ZG1000-A9)

ZG1000A9 1000GTR 1994 UNITED KINGDOM FR NL AR FG NR SD ST

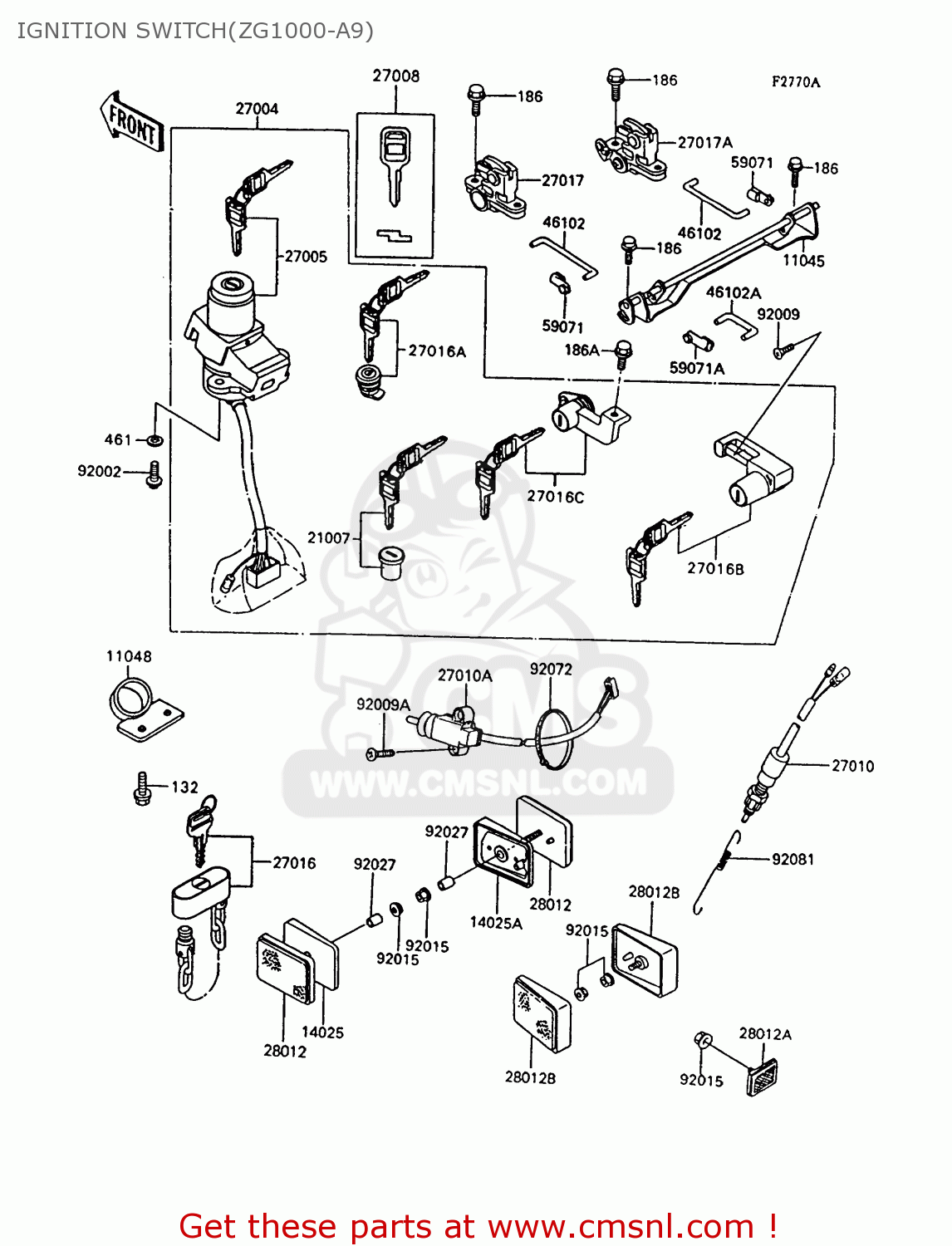

Ignition switch(zg1000-a9) diagram ZG1000A9 1000GTR 1994 UNITED KINGDOM FR NL AR FG NR SD ST

IGNITION SWITCH(ZG1000-A9) ZG1000A9 1000GTR 1994 UNITED KINGDOM FR NL AR FG NR SD ST
IGNITION SWITCH(ZG1000-A9) ZG1000A9 1000GTR 1994 UNITED KINGDOM FR NL AR FG NR SD ST
IGNITION SWITCH(ZG1000-A9) ZG1000A9 1000GTR 1994 UNITED KINGDOM FR NL AR FG NR SD ST
prices are in EUR
ref
part #
description
quantity
132
132J0612
ref: 132
BOLT-FLANGED-SMALL
132J0612
€ 2.50
186
186C0614
ref: 186
BOLT-UPSET-WP
€ 2.50
186A
186C0616
ref: 186A
BOLT-UPSET-WP
€ 2.50
11045
110451544
ref: 11045
BRACKET,SEAT LOCK
€ 26.00
11048
110481451
ref: 11048
BRACKET,IGNITION GUAR
110481451
€ 22.00
14025
140251886
ref: 14025
AR
COVER,REFLECTOR,FR
140251886
€ 9.50
14025A
140251887
ref: 14025A
AR
COVER,REFLECTOR,FR
140251887
€ 9.50
21007
210075037
ref: 21007
ROTOR,LOCK,TANK CAP
210075037
€ 65.50
27004
270045475
ref: 27004
SWITCH-ASSY
€ 349.00
27005
270055102
ref: 27005
SWITCH-ASSY-IGNITION
270055102
€ 249.50
27008
270081173
ref: 27008
KEY-LOCK,BLANK
270081173
€ 13.00
27010
270101019
ref: 27010
SWITCH,REAR BRAKE
270101019
€ 23.00
27010A
270101220
ref: 27010A
SWITCH,SIDE STAND
270101220
€ 60.00
27016
270161051
ref: 27016
LOCK-ASSY,WHEEL
270161051
€ 104.50
27016A
270165204
ref: 27016A
LOCK-ASSY,TOOL BOX
270165204
€ 48.00
27016B
270165211
ref: 27016B
LOCK-ASSY,HELMET
270165211
€ 56.50
27016C
270165221
ref: 27016C
LOCK-ASSY,SEAT
€ 56.50
27017
270171112
ref: 27017
LOCK,SEAT,LH
€ 61.50
27017A
270171113
ref: 27017A
LOCK,SEAT,RH
€ 61.50
28012
280121052
ref: 28012
AR
REFLECTOR-REFLEX,FR
280121052
€ 17.50
28012A
280121054
ref: 28012A
REFLECTOR-REFLEX,RR
280121054
€ 15.00
28012B
280121060
ref: 28012B
AR
REFLECTOR-REFLEX
280121060
€ 23.50
46102
461021187
ref: 46102
ROD,SEAT LOCK,FR
€ 5.50
46102A
461021188
ref: 46102A
ROD,SEAT LOCK,RR
€ 2.50
59071
590711103
ref: 59071
JOINT
590711103
€ 5.50
59071A
590711125
ref: 59071A
JOINT
590711125
€ 5.00
92002
920021333
ref: 92002
BOLT
920021333
€ 1.50
92009
920091401
ref: 92009
SCREW
920091401
€ 2.50
92009A
920091459
ref: 92009A
SCREW
920091459
€ 2.50
92015
920151259
ref: 92015
FGFRNLNRSDSTUK
NUT,FLANGED,5MM
920151259
€ 2.50
92015
920151259
ref: 92015
AR
NUT,FLANGED,5MM
920151259
€ 2.50
92027
920271789
ref: 92027
AR
COLLAR,5X8X14.5
920271789
€ 3.00
92072
920721195
ref: 92072
BAND,L=185
920721195
€ 1.00
92081
920811990
ref: 92081
SPRING,BRAKE LAMP SWI
€ 4.00
461
461L0600
ref: 461
WASHER-SPRING
€ 0.50
