STARTER MOTOR

ZG1000A8 CONCOURS 1993 USA CALIFORNIA CANADA

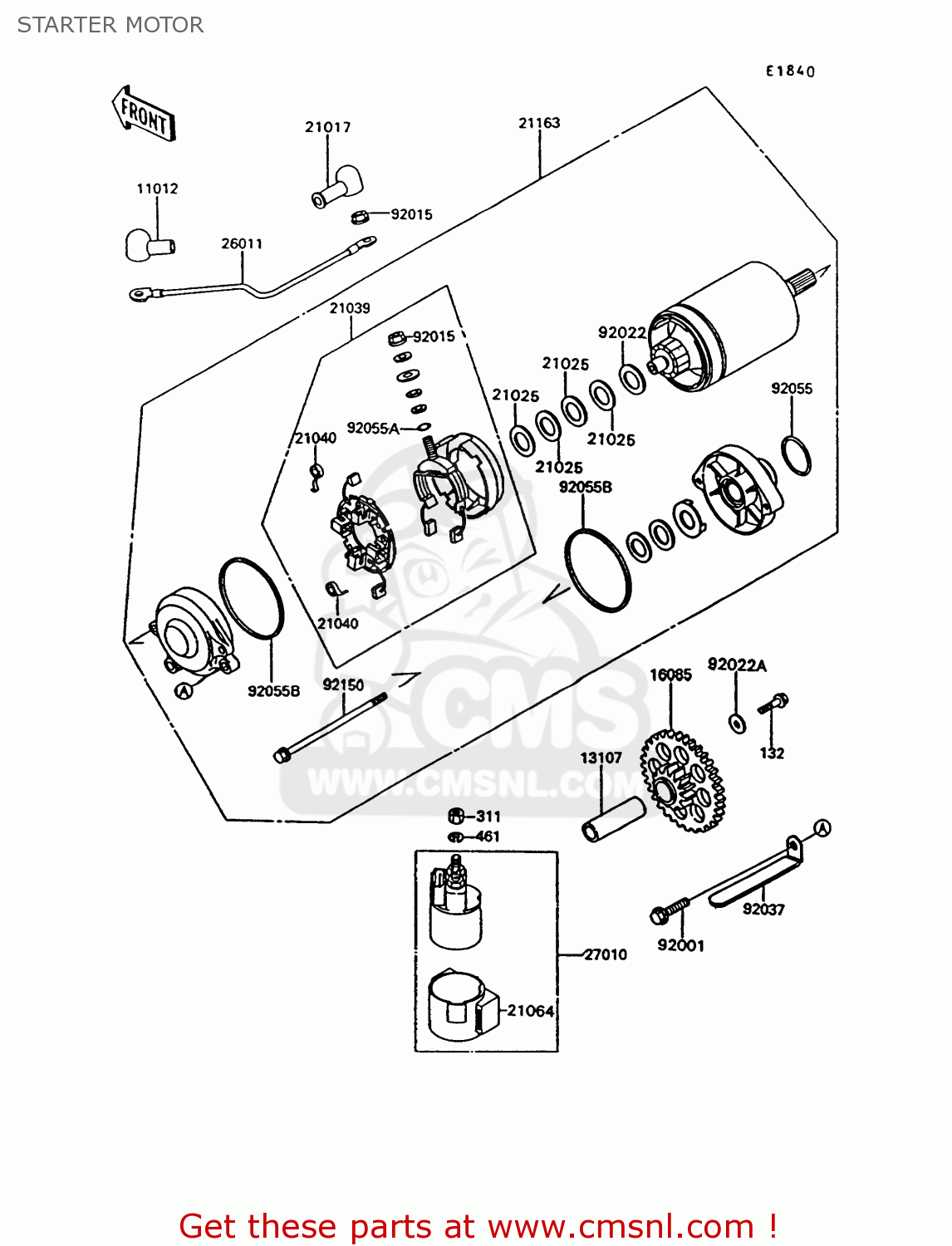

Starter motor diagram ZG1000A8 CONCOURS 1993 USA CALIFORNIA CANADA

STARTER MOTOR ZG1000A8 CONCOURS 1993 USA CALIFORNIA CANADA
STARTER MOTOR ZG1000A8 CONCOURS 1993 USA CALIFORNIA CANADA
STARTER MOTOR ZG1000A8 CONCOURS 1993 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
132
132G0612
ref: 132
BOLT-FLANGED-SMALL
132G0612
€ 1.50
311
311B0600
ref: 311
NUT,6MM
311B0600
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
461F0600
€ 0.50
11012
110121354
ref: 11012
CAP,TERMINAL
110121354
€ 7.00
13107
131071106
ref: 13107
SHAFT,IDLE GEAR
131071106
€ 11.50
16085
160851104
ref: 16085
GEAR,IDLE
160851104
€ 90.50
21017
21017017
ref: 21017
GROMMET-CORD
21017017
€ 6.50
21025
21025011
ref: 21025
WASHER, THRUST, 0.2T
21025011
€ 4.00
21039
210391060
ref: 21039
BRUSH,CARBON
210391060
€ 74.00
21040
210401055
ref: 21040
SPRING-BRUSH
210401055
€ 5.50
21064
21064002
ref: 21064
DAMPER,MAGNETIC SWITC
21064002
€ 13.50
21163
211631161
ref: 21163
STARTER-ELECTRIC
€ 574.50
26011
260111316
ref: 26011
WIRE-LEAD,MOTOR
€ 48.00
27010
270101235
ref: 27010
SWITCH,MAGNETIC
270101235
€ 102.50
92001
920011947
ref: 92001
BOLT,6X20
920011947
€ 3.00
92015
920151476
ref: 92015
NUT,6MM
920151476
€ 2.50
92022
920221132
ref: 92022
WASHER,9.1X18X0.8
920221132
€ 4.00
92022A
920221517
ref: 92022A
WASHER,6X19.5X2
920221517
€ 1.50
92037
920371679
ref: 92037
CLAMP
920371679
€ 3.50
92055
920551276
ref: 92055
RING-O
920551276
€ 6.50
92055A
920551370
ref: 92055A
RING-O,4.5X2.0
920551370
€ 3.00
92055B
920551381
ref: 92055B
RING-O,STARTER MOTOR
920551381
€ 6.50
92150
921501143
ref: 92150
BOLT,MOTOR
€ 6.50
