Genuine ZG Kawasaki Parts delivered quickly!


COWLING LOWERS

ZG1000A6 CONCOURS 1991 USA CALIFORNIA CANADA

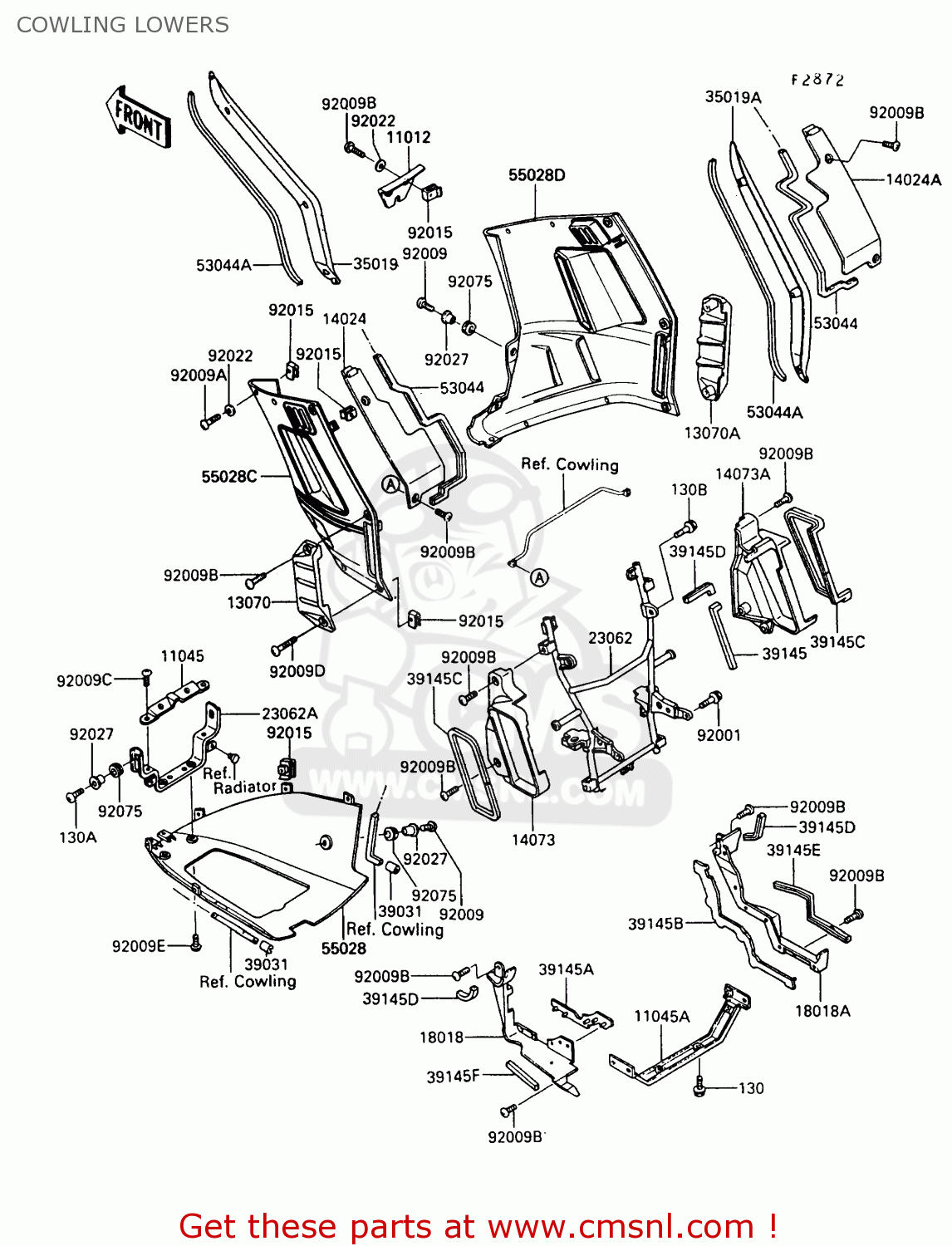

Cowling lowers diagram ZG1000A6 CONCOURS 1991 USA CALIFORNIA CANADA

COWLING LOWERS ZG1000A6 CONCOURS 1991 USA CALIFORNIA CANADA
COWLING LOWERS ZG1000A6 CONCOURS 1991 USA CALIFORNIA CANADA
COWLING LOWERS ZG1000A6 CONCOURS 1991 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11012
110121534A5
ref: 11012
CAP,RESERVOIR INSPECT
€ 44.50
11045
110441919
ref: 11045
BRACKET,RESERVOIR TAN
110441919
€ 5.50
11045A
110441920
ref: 11045A
BRACKET,LOWER COWLING
110441920
€ 25.50
13070
130701171
ref: 13070
GUIDE,SIDE COWLING,LH
130701171
€ 32.00
13070A
130701172
ref: 13070A
GUIDE,SIDE COWLING,RH
130701172
€ 30.50
14024
140241460
ref: 14024
COVER,INNER COWLING,S
140241460
€ 28.50
14024A
140241461
ref: 14024A
COVER,INNER COWLING,S
140241461
€ 28.50
14073
140731276
ref: 14073
DUCT,RADIATOR,RR,LH
140731276
€ 46.50
14073A
140731284
ref: 14073A
DUCT,RADIATOR,RR,RH
€ 81.50
18018
180181068
ref: 18018
PLATE-HEAT GUARD,SIDE
€ 76.50
18018A
180181069
ref: 18018A
PLATE-HEAT GUARD,SIDE
180181069
€ 81.50
23062
230621064
ref: 23062
BRACKET-COMP,RADIATOR
230621064
€ 216.50
23062A
230621065
ref: 23062A
BRACKET-COMP,LOWER CO
230621065
€ 24.50
35019
350191193
ref: 35019
FLAP,SIDE COWLING,LH
350191193
€ 46.00
35019A
350191194
ref: 35019A
FLAP,SIDE COWLING,RH
350191194
€ 38.50
39031
390311055
ref: 39031
CAP-END,TRIM
390311055
€ 3.50
39145
391451056
ref: 39145
TRIM-SEAL,SIDE COWLIN
391451056
€ 10.50
39145A
391451076
ref: 39145A
TRIM-SEAL,HEAT GUARD
391451076
€ 15.00
39145B
391451077
ref: 39145B
TRIM-SEAL,HEAT GUARD
€ 30.50
39145C
391451078
ref: 39145C
TRIM-SEAL,DUCT
€ 23.00
39145D
391451079
ref: 39145D
TRIM-SEAL,HEAT GUARD
€ 6.00
39145E
391451080
ref: 39145E
TRIM-SEAL,HEAT GUARD,
€ 15.00
39145F
391451084
ref: 39145F
TRIM-SEAL,HEAT GUARD,
€ 14.50
53044
530441184
ref: 53044
TRIM,INNER COWLING
530441184
€ 18.50
53044A
530441184
ref: 53044A
TRIM,INNER COWLING
530441184
€ 18.50
55028
550281124A5
ref: 55028
COWLING,LWR,C.P.RED
€ 282.00
55028C
550285410A5
ref: 55028C
COWLING,SIDE,LH,C.P.R
€ 402.50
55028D
550285411A5
ref: 55028D
COWLING,SIDE,RH,C.P.R
€ 451.50
92001
920011844
ref: 92001
BOLT,FLANGED,10X41,BL
920011844
€ 5.00
130
130B0610
ref: 130
BOLT,FLANGED,6X10
130B0610
€ 0.50
130A
130C0618
ref: 130A
BOLT-FLANGED
€ 1.50
130B
130J0812
ref: 130B
BOLT-FLANGED
130J0812
€ 0.50
92009
920091306
ref: 92009
SCREW,6X18
€ 2.00
92009A
920091307
ref: 92009A
SCREW,6X22
€ 1.50
92009B
920091308
ref: 92009B
SCREW,6X14
€ 2.00
92009C
920091335
ref: 92009C
SCREW,5X10
920091335
€ 2.50
92009D
920091400
ref: 92009D
SCREW,6X22
920091400
€ 3.50
92009E
920091402
ref: 92009E
SCREW,6X10
920091402
€ 1.50
92015
920151602
ref: 92015
NUT,6MM
920151602
€ 4.50
92022
920221818
ref: 92022
WASHER,6X16X1
920221818
€ 1.50
92027
920271935
ref: 92027
COLLAR,L=9.1,BLACK
920271935
€ 4.00
92075
920751634
ref: 92075
DAMPER
920751634
€ 3.00
