FUEL EVAPORATIVE SYSTEM

ZG1000A20 CONCOURS 2005 USA CALIFORNIA CANADA

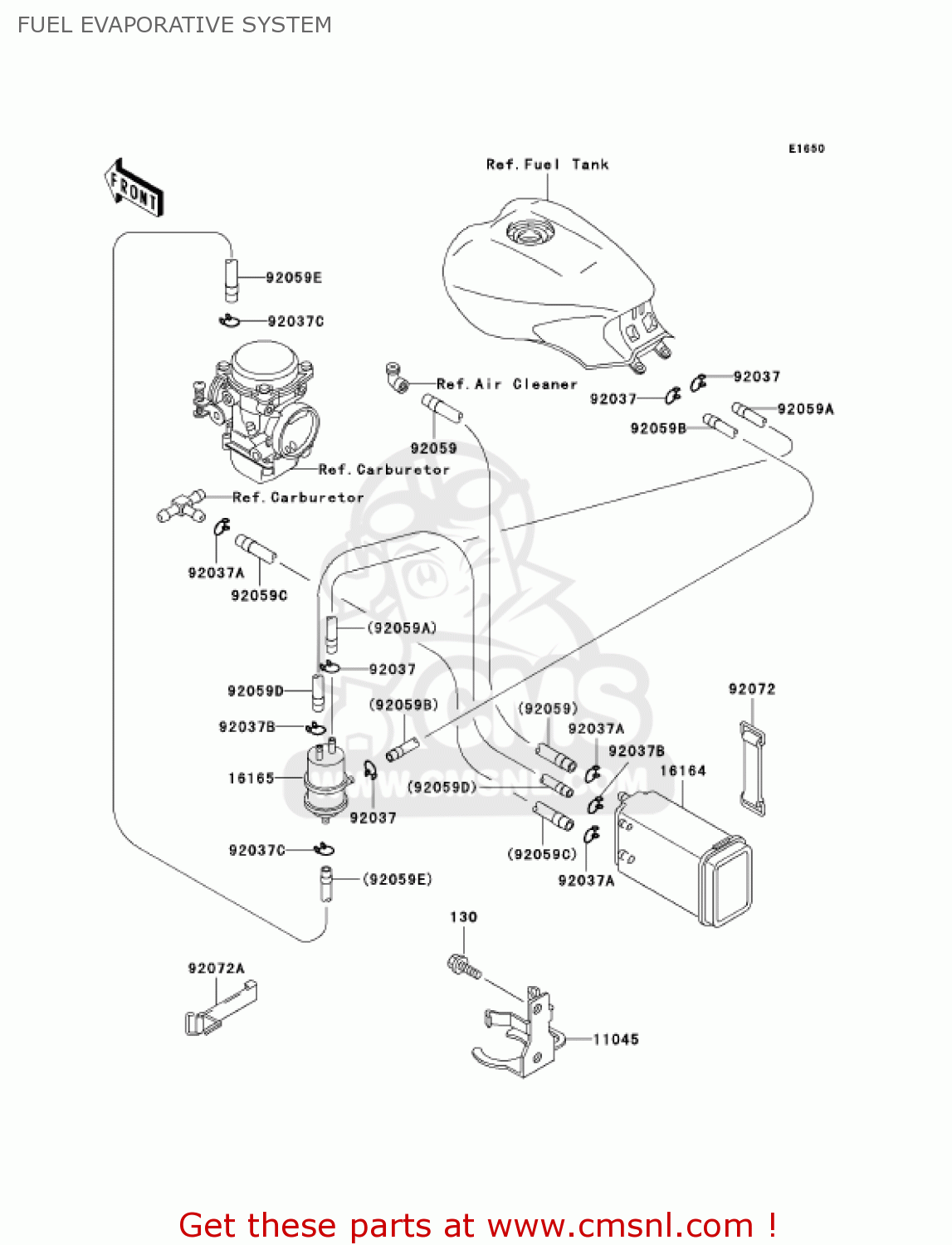

Fuel evaporative system diagram ZG1000A20 CONCOURS 2005 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130C0610
ref: 130
[CA]

BOLT-FLANGED,6X10,BLA

€ 1.50

11045

110451163
ref: 11045
[CA]

SEPARATOR BRACKET

€ 7.00

16164

161641064
ref: 16164
[CA]

CANISTER

€ 77.00

16165

161651001
ref: 16165
[CA]

SEPARATOR

€ 69.50

92037

92037010
ref: 92037
[CA]

CLAMP-FUEL PIPE

€ 2.50

92037A

920371104
ref: 92037A
[CA]

CLAMP,HOSE

€ 1.00

92037B

92037147
ref: 92037B
[CA]

CLAMP,CHAIN OILER

€ 4.50

92037C

920371712
ref: 92037C
[CA]

CLAMP

€ 3.00

92059

920591406
ref: 92059
[CA]

TUBE 7X12X390 GREEN

€ 28.00

92059A

920591407
ref: 92059A
[CA]

TUBE,5X8X430

€ 18.50

92059B

920591419
ref: 92059B
[CA]

TUBE,5X8X550

€ 14.00

92059C

920591440
ref: 92059C
[CA]

TUBE,7X1 2X440

€ 28.00

92059D

920591498
ref: 92059D
[CA]

TUBE,5X10X230,BLUE

€ 13.00

92059E

920591690
ref: 92059E
[CA]

TUBE,4X9X705,WHITE

€ 7.50

92072

92072071
ref: 92072
[CA]

BAND,BATTERY

€ 6.50

92072A

920721214
ref: 92072A
[CA]

BAND

€ 6.50
