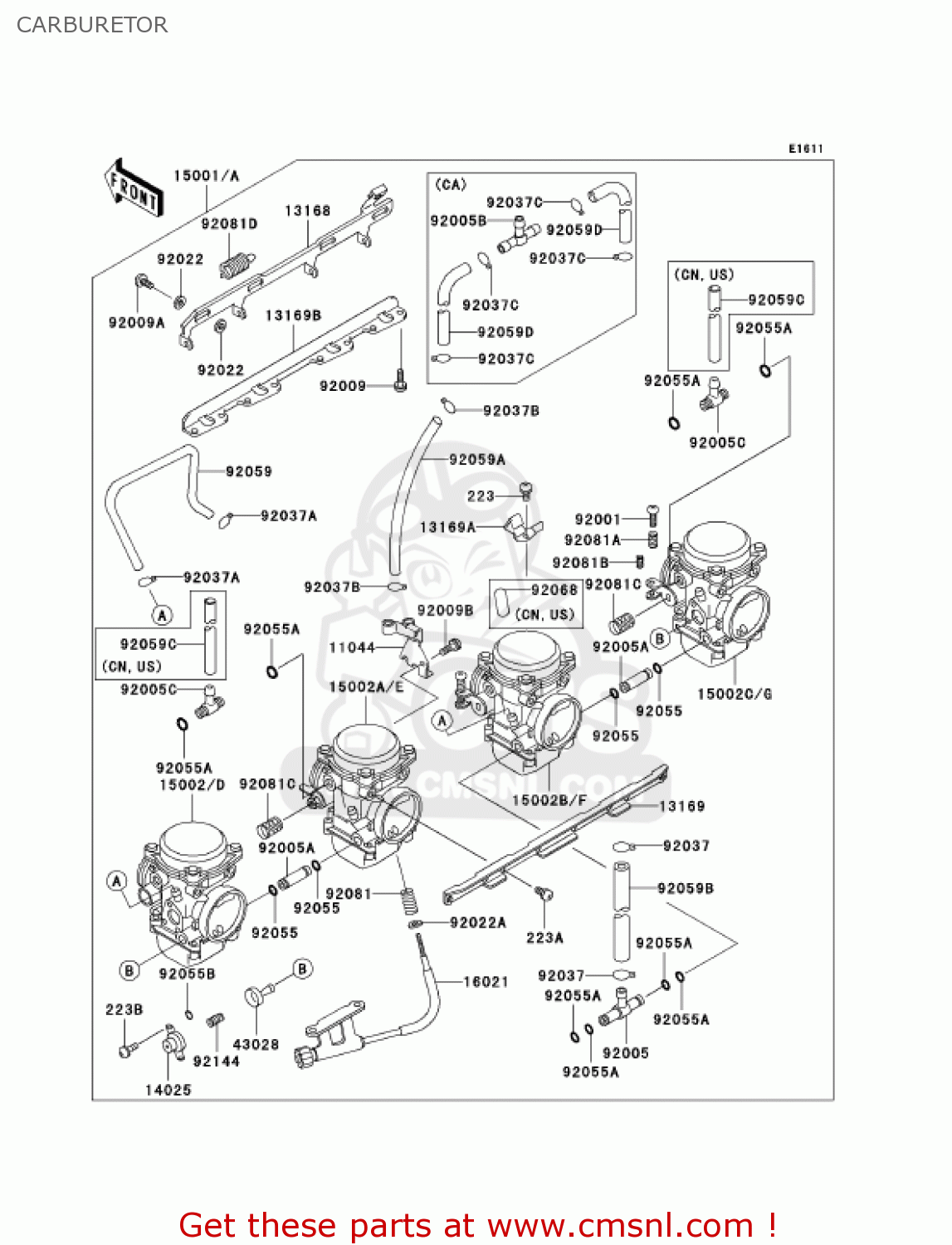

CARBURETOR

ref

part #

description

quantity

11044

110441546
ref: 11044

BRACKET,THROTTLE CABL

€ 41.00

13168

131681245
ref: 13168

LEVER,STARTER

€ 95.50

13169

131691869
ref: 13169

PLATE,CARBURETOR STAY

€ 80.50

13169A

131691871
ref: 13169A

PLATE,STARTER CABLE

€ 16.00

13169B

131691873
ref: 13169B

PLATE,CARBURETOR STAY

€ 85.00

14025

140251903
ref: 14025

COVER,AIR CUT VALVE

€ 43.00

15001

150011251
ref: 15001
[CN,US

CARBURETOR ASSEMBLY

€ 1,427.50

15001A

150011252
ref: 15001A
[CA]

CARBURETOR ASSEMBLY

€ 1,401.50

15002

150021362
ref: 15002
[CN,US

CARBURETOR,OUTSIDE,LH

€ 393.50

15002A

150021363
ref: 15002A
[CN,US

CARBURETOR,INSIDE,LH

€ 386.50

15002B

150021364
ref: 15002B
[CN,US

CARBURETOR,INSIDE,RH

€ 393.50

15002C

150021365
ref: 15002C
[CN,US

CARBURETOR,OUTSIDE,RH

€ 386.50

15002D

150021366
ref: 15002D
[CA]

CARBURETOR,OUTSIDE,LH

€ 413.50

15002E

150021367
ref: 15002E
[CA]

CARBURETOR,INSIDE,LH

€ 413.50

15002F

150021368
ref: 15002F
[CA]

CARBURETOR,INSIDE,RH

€ 413.50

15002G

150021369
ref: 15002G
[CA]

CARBURETOR,OUTSIDE,RH

€ 421.00

16021

160211101
ref: 16021

SCREW-THROTTLE STOP

€ 83.50

43028

430281053
ref: 43028

DIAPHRAGM,5.9MM,AIR C

€ 62.50

92001

920011998
ref: 92001

BOLT,THROTTLE ADJUST

€ 11.50

223

223C0420
ref: 223

SCREW-PAN-WS-CROS

€ 3.00

223A

223C0510
ref: 223A

SCREW-PAN-WS-CROS

€ 2.50

92005

920051108
ref: 92005

FITTING,FUEL,T-TYPE

€ 16.50

92005A

920051109
ref: 92005A

FITTING,FUEL,I-TYPE

€ 25.00

92005B

920051119
ref: 92005B
[CA]

FITTING,T-TYPE

€ 17.50

92005C

920051125
ref: 92005C

FITTING,T-TYPE

€ 18.00

92009

920091129
ref: 92009

SCREW,6X16

€ 3.00

92009A

920091262
ref: 92009A

SCREW

€ 4.00

92009B

920091365
ref: 92009B

SCREW

€ 4.50

92022

920221199
ref: 92022

WASHER,6.1X11X0.8,POL

€ 3.00

92022A

920221480
ref: 92022A

WASHER,PLAIN,STOP SPR

€ 3.00

92037

920371075
ref: 92037

CLAMP,FUEL INLET TUBE

€ 2.50

92037A

920371142
ref: 92037A

CLAMP,TUBE

€ 2.50

92037B

920371477
ref: 92037B

CLAMP,TUBE

€ 3.00

92037C

920371606
ref: 92037C
[CA]

TUBE CLAMP

€ 2.50

92055

920551004
ref: 92055

O RING

€ 2.50

92055A

920551223
ref: 92055A

RING-O,FUEL FITTING

€ 3.50

92055B

920551245
ref: 92055B

RING-O

€ 3.50

92059

920591140
ref: 92059

TUBE,3.5X6.5X180

€ 17.50

92059A

920591173
ref: 92059A

TUBE,5X9X200

€ 16.50

92059B

920591492
ref: 92059B

TUBE,7.3X12.5X260

€ 25.00

92059C

920591598
ref: 92059C
[CN,US

TUBE,6.5X9.5X260

€ 20.50

92059D

920591688
ref: 92059D
[CA]

TUBE

€ 17.00

92068

92068006
ref: 92068
[CN,US

RUBBER PLUG

€ 2.50

92081

920811617
ref: 92081

SPRING,THROTTLE STOP

€ 3.50

92081A

920811620
ref: 92081A

SPRING,THROTTLE ADJUS

€ 3.00

92081B

920811621
ref: 92081B

SPRING,THROTTLE ADJUS

€ 3.00

92081C

920811622
ref: 92081C

SPRING,THROTTLE ADJUS

€ 6.50

92081D

920811762
ref: 92081D

SPRING,STARTER LEVER

€ 14.00

92144

921441072
ref: 92144

SPRING,AIR CUT VALVE

€ 6.50

223B

223D0408
ref: 223B

SCREW-PAN-WS-CROS

€ 1.00
