HEADLIGHT(S)

ZG1000A14 1000GTR 1999 UNITED KINGDOM FR NL FG NR SD ST

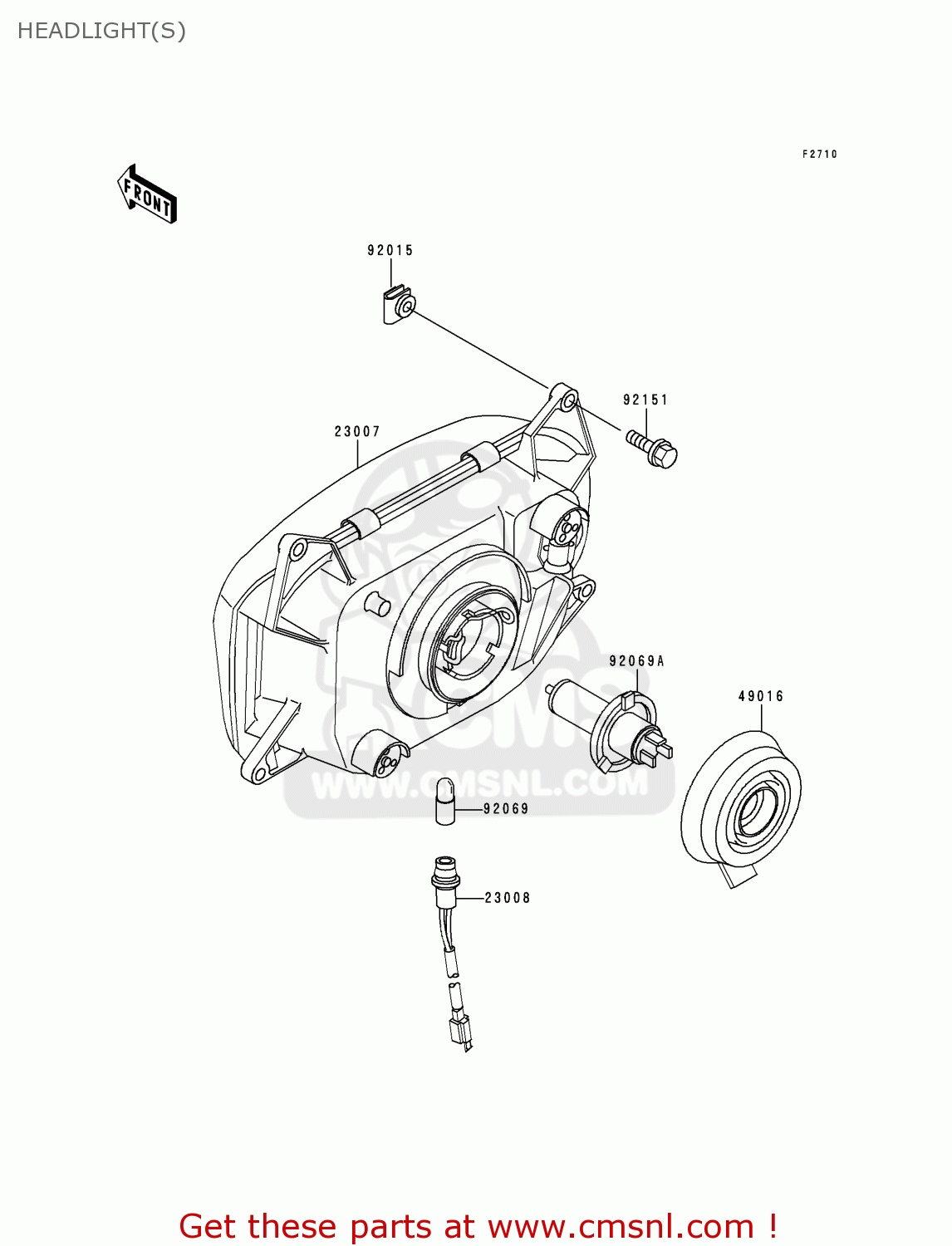

Headlight(s) diagram ZG1000A14 1000GTR 1999 UNITED KINGDOM FR NL FG NR SD ST

prices are in EUR

ref

part #

description

quantity

23007

230071186
ref: 23007
FGFRNLNRSDST

LENS-COMP,HEAD LAMP

€ 172.00

23008

230081362
ref: 23008
FGFRNLNRSDST

SOCKET-ASSY,HEAD LAMP

€ 15.50

49016

490161108
ref: 49016
FGFRNLNRSDST

COVER-SEAL,HEAD LAMP

€ 11.00

92015

920151094
ref: 92015
FGFRNLNRSDST

NUT,MUFFLER

€ 5.50

92069

92069071
ref: 92069
FGFRNLNRSDST

BULB,12V 4W

€ 4.50

92069A

920691002
ref: 92069A
FGFRNLNRSDST

BULB,12V-60155W

€ 15.00

92151

921511241
ref: 92151
FGFRNLNRSDST

BOLT

€ 3.00
