COWLING LOWERS(ZG1000-A1)

ZG1000A1 1000GTR 1986 EUROPE FR UK FG GR IT NR SD SP ST

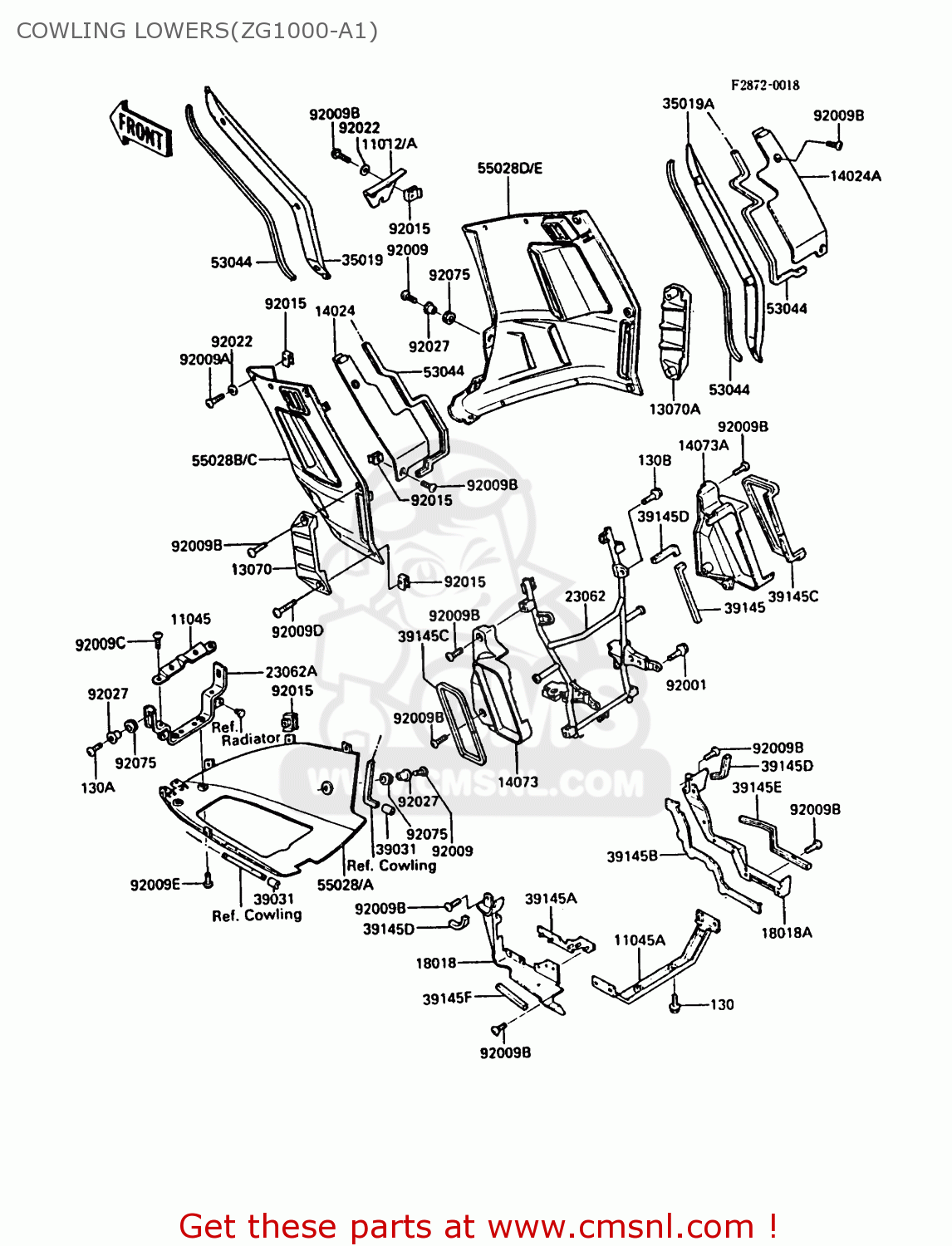

Cowling lowers(zg1000-a1) diagram ZG1000A1 1000GTR 1986 EUROPE FR UK FG GR IT NR SD SP ST

COWLING LOWERS(ZG1000-A1) ZG1000A1 1000GTR 1986 EUROPE FR UK FG GR IT NR SD SP ST
COWLING LOWERS(ZG1000-A1) ZG1000A1 1000GTR 1986 EUROPE FR UK FG GR IT NR SD SP ST
COWLING LOWERS(ZG1000-A1) ZG1000A1 1000GTR 1986 EUROPE FR UK FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11012
110121534H3
ref: 11012
EUFGITNRSDUK
CAP,RESERVOIR INSPECT
€ 46.50
11012A
110121534T8
ref: 11012A
CAP,RESERVOIR INSPECT
110121534T8
€ 46.50
11045
110441919
ref: 11045
BRACKET,RESERVOIR TAN
110441919
€ 5.50
11045A
110441920
ref: 11045A
BRACKET,LOWER COWLING
110441920
€ 25.50
13070
130701171
ref: 13070
GUIDE,SIDE COWLING,LH
130701171
€ 32.00
13070A
130701172
ref: 13070A
GUIDE,SIDE COWLING,RH
130701172
€ 30.50
14024
140241460
ref: 14024
COVER,INNER COWLING,S
140241460
€ 28.50
14024A
140241461
ref: 14024A
COVER,INNER COWLING,S
140241461
€ 28.50
14073
140731276
ref: 14073
DUCT,RADIATOR,RR,LH
140731276
€ 46.50
14073A
140731284
ref: 14073A
DUCT,RADIATOR,RR,RH
€ 81.50
18018
180181068
ref: 18018
PLATE-HEAT GUARD,SIDE
€ 76.50
18018A
180181069
ref: 18018A
PLATE-HEAT GUARD,SIDE
180181069
€ 81.50
23062
230621064
ref: 23062
BRACKET-COMP,RADIATOR
230621064
€ 216.50
23062A
230621065
ref: 23062A
BRACKET-COMP,LOWER CO
230621065
€ 24.50
35019
350191193
ref: 35019
FLAP,SIDE COWLING,LH
350191193
€ 46.00
35019A
350191194
ref: 35019A
FLAP,SIDE COWLING,RH
350191194
€ 38.50
39031
390311055
ref: 39031
CAP-END,TRIM
390311055
€ 3.50
39145
391451056
ref: 39145
TRIM-SEAL,SIDE COWLIN
391451056
€ 10.50
39145A
391451076
ref: 39145A
TRIM-SEAL,HEAT GUARD
391451076
€ 15.00
39145B
391451077
ref: 39145B
TRIM-SEAL,HEAT GUARD
€ 30.50
39145C
391451078
ref: 39145C
TRIM-SEAL,DUCT
€ 23.00
39145D
391451079
ref: 39145D
TRIM-SEAL,HEAT GUARD
€ 6.00
39145E
391451080
ref: 39145E
TRIM-SEAL,HEAT GUARD,
€ 15.00
39145F
391451084
ref: 39145F
TRIM-SEAL,HEAT GUARD,
€ 14.50
53044
530441184
ref: 53044
TRIM,INNER COWLING
530441184
€ 18.50
55028
550281124H3
ref: 55028
EUFGITNRSDUK
COWLING,LWR,C.W.RED
€ 216.00
55028A
550281124T8
ref: 55028A
COWLING,LWR,P.G.GRAY
€ 311.00
55028B
550281159H3
ref: 55028B
EUFGITNRSDUK
COWLING,SIDE,LH,C.W.R
€ 281.00
55028C
550281159T8
ref: 55028C
COWLING,SIDE,LH,P.G.G
€ 366.50
55028D
550281160H3
ref: 55028D
EUFGITNRSDUK
COWLING,SIDE,RH,C.W.R
€ 349.50
55028E
550281160T8
ref: 55028E
COWLING,SIDE,RH,P.G.G
550281160T8
€ 385.00
92001
920011844
ref: 92001
BOLT,FLANGED,10X41,BL
920011844
€ 5.00
92009
920091306
ref: 92009
SCREW,6X18
€ 2.00
92009A
920091307
ref: 92009A
SCREW,6X22
€ 1.50
92009B
920091308
ref: 92009B
SCREW,6X14
€ 2.00
130
130B0610
ref: 130
BOLT,FLANGED,6X10
130B0610
€ 0.50
130A
130C0618
ref: 130A
BOLT-FLANGED
€ 1.50
130B
130J0812
ref: 130B
BOLT-FLANGED
130J0812
€ 0.50
92009C
920091335
ref: 92009C
SCREW,5X10
920091335
€ 2.50
92009D
920091400
ref: 92009D
SCREW,6X22
920091400
€ 3.50
92009E
920091402
ref: 92009E
SCREW,6X10
920091402
€ 1.50
92015
920151602
ref: 92015
NUT,6MM
920151602
€ 4.50
92022
920221818
ref: 92022
WASHER,6X16X1
920221818
€ 1.50
92027
920271935
ref: 92027
COLLAR,L=9.1,BLACK
920271935
€ 4.00
92075
920751634
ref: 92075
DAMPER
920751634
€ 3.00
