FRONT BEVEL GEAR
Z750P5 1987 UNITED KINGDOM / MPH

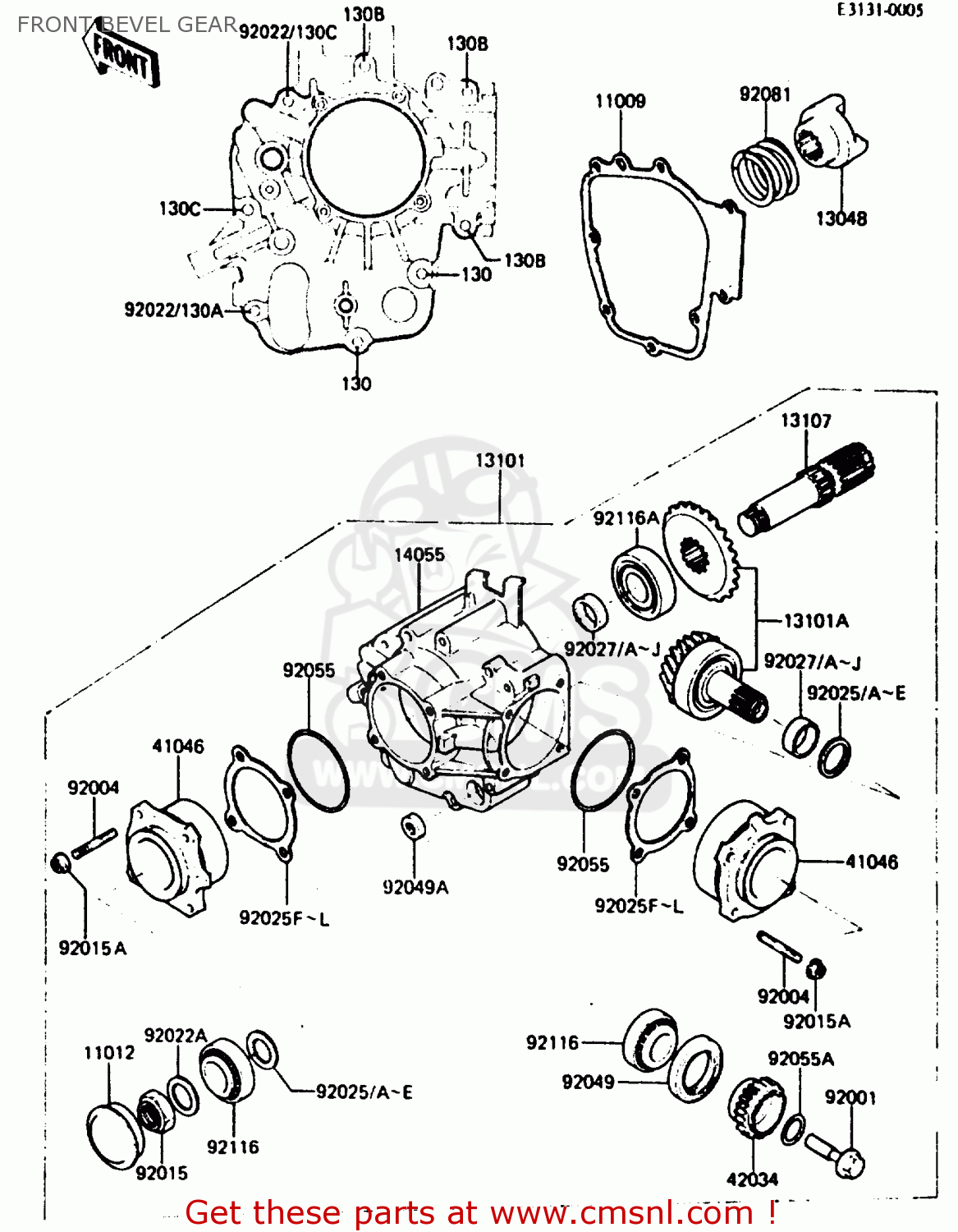

Front bevel gear diagram Z750P5 1987 UNITED KINGDOM / MPH
FRONT BEVEL GEAR Z750P5 1987 UNITED KINGDOM / MPH
×
prices are in EUR
ref
part #
description
quantity
11009
110091293
ref: 11009
GASKET,GEAR CASE (MCA)
€ 7.50
11012
110121071
ref: 11012
CAP
€ 21.50
13048
130481013
ref: 13048
CAM-DAMPER,BEVEL GEAR
€ 76.00
13101
131011019
ref: 13101
GEAR-ASSY,BEVEL,FR
€ 1,750.00
13101A
131015034
ref: 13101A
GEAR-ASSY,FRONT BEVEL
€ 682.00
13107
131071032
ref: 13107
SHAFT,BEVEL GEAR,FR
€ 114.50
14055
140551006
ref: 14055
CASE-GEAR,BEVEL,FR
€ 463.00
41046
410461014
ref: 41046
HOUSING-BEARING,FR
€ 185.50
42034
420341014
ref: 42034
COUPLING,FRONT DRIVEN
€ 96.00
92001
920011169
ref: 92001
BOLT,12X42
€ 15.50
92004
92004059
ref: 92004
STUD
€ 4.00
92015
920151065
ref: 92015
NUT,20MM
€ 6.00
92015A
920151078
ref: 92015A
NUT,6M/M
€ 1.50
92022
92022077
ref: 92022
WASHER,6.1X12X1
€ 0.50
92022A
920221116
ref: 92022A
WASHER,20.3X36X2.3
€ 5.50
92025
920251072
ref: 92025
SHIM,1.70T
€ 6.50
92025A
920251073
ref: 92025A
SHIM,1.72T
€ 6.50
92025B
920251074
ref: 92025B
SHIM,1.74T
€ 6.50
92025C
920251075
ref: 92025C
SHIM,1.76T
€ 6.50
92025D
920251076
ref: 92025D
SHIM,1.78T
€ 6.50
92025E
920251077
ref: 92025E
SHIM,1.80T
€ 6.50
92025F
920251258
ref: 92025F
SHIM,T=0.10
€ 7.50
92025G
920251259
ref: 92025G
SHIM,T=0.15
€ 8.00
92025H
920251260
ref: 92025H
SHIM,T=0.20
€ 7.00
92025I
920251261
ref: 92025I
SHIM,T=0.30
€ 6.50
92025J
920251262
ref: 92025J
SHIM,T=0.60
€ 7.00
92025K
920251263
ref: 92025K
SHIM,T=0,90
€ 6.50
92025L
920251264
ref: 92025L
SHIM,T=1.20
€ 8.00
92027
920271401
ref: 92027
COLLAR,25.2X29.8X10.2
€ 7.50
92027A
920271402
ref: 92027A
COLLAR,25.2X29.8X10.3
€ 7.50
92027B
920271403
ref: 92027B
COLLAR,25.2X29.8X10.4
€ 7.50
92027C
920271404
ref: 92027C
COLLAR,25.2X29.8X10.5
€ 7.50
92027D
920271405
ref: 92027D
COLLAR,25.2X29.8X10.6
€ 7.50
92027E
920271406
ref: 92027E
COLLAR,25.2X29.8X10.7
€ 7.50
92027F
920271407
ref: 92027F
COLLAR,25.2X29.8X10.8
€ 7.50
92027G
920271408
ref: 92027G
COLLAR,25.2X29.8X10.9
€ 7.50
92027H
920271409
ref: 92027H
COLLAR,25.2X29.8X11.0
€ 7.50
92027I
920271410
ref: 92027I
COLLAR,25.2X29.8X11.1
€ 7.50
92027J
920271411
ref: 92027J
COLLAR,25.2X29.8X11.2
€ 7.50
92049
920491038
ref: 92049
OIL SEAL,TC35527
€ 12.50
92049A
92051005A
ref: 92049A
OIL SEAL,TB13225.5
€ 5.50
92055
920551043
ref: 92055
0RING,I.D=64.4M/M
€ 6.00
92055A
920551044
ref: 92055A
RING-O,ID=18.64
€ 3.00
92081
920811425
ref: 92081
SPRING,CAM DAMPER
€ 20.50
92116
921161003
ref: 92116
BEARING,R,4T-30205
€ 41.00
92116A
921161006
ref: 92116A
BEARING-ROLLER,4T3030
€ 52.00
130
130G0625
ref: 130
BOLT,FLANGED,6X25
€ 0.50
130A
130G0640
ref: 130A
BOLT,FLANGED,6X40
€ 0.50
130B
130G0675
ref: 130B
BOLT-FLANGED,6X75
€ 1.50
130C
130G0690
ref: 130C
BOLT,FLANGED,6X90
€ 1.00
