RADIATOR

XZ900B2 NINJA ZX9R 1995 USA CALIFORNIA CANADA

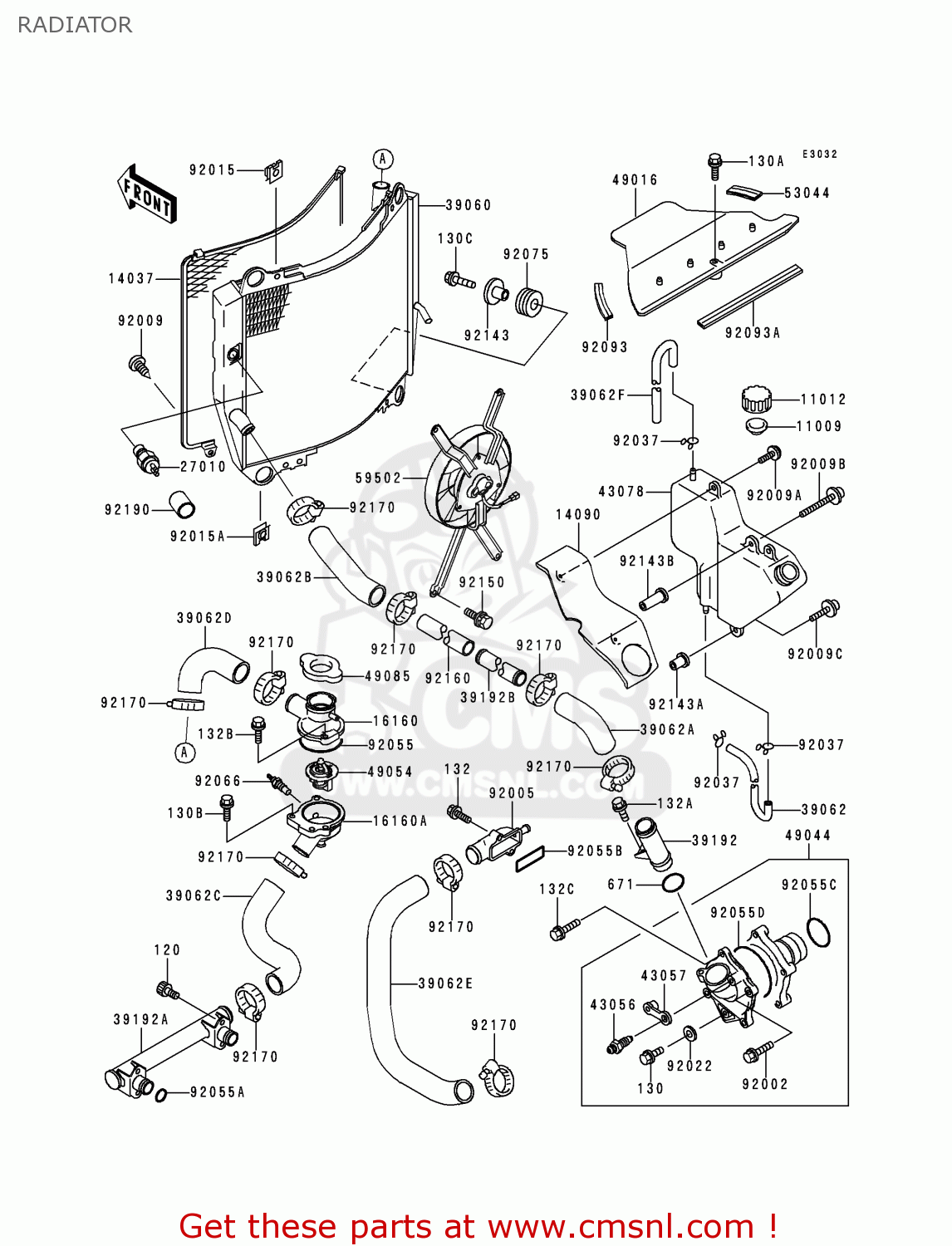

Radiator diagram XZ900B2 NINJA ZX9R 1995 USA CALIFORNIA CANADA

RADIATOR XZ900B2 NINJA ZX9R 1995 USA CALIFORNIA CANADA
RADIATOR XZ900B2 NINJA ZX9R 1995 USA CALIFORNIA CANADA
RADIATOR XZ900B2 NINJA ZX9R 1995 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
110091145
€ 1.00
11012
110121084
ref: 11012
CAP
110121084
€ 1.50
14037
140371187
ref: 14037
SCREEN,RADIATOR
140371187
€ 49.50
14090
140901387
ref: 14090
COVER,RESERVOIR
140901387
€ 15.00
16160
161601152
ref: 16160
BODY,UPP
€ 57.00
16160A
161601231
ref: 16160A
BODY,THERMOSTAT,LWR
161601231
€ 39.00
27010
270101202
ref: 27010
SWITCH,FAN
270101202
€ 74.00
39060
390601126
ref: 39060
RADIATOR
390601126
€ 576.50
39062
390621341
ref: 39062
HOSE-COOLING,OVERFLOW
€ 20.00
39062A
390621472
ref: 39062A
HOSE-COOLING,WATER PU
390621472
€ 17.00
39062B
390621473
ref: 39062B
HOSE-COOLING,RADIATOR
390621473
€ 28.50
39062C
390621573
ref: 39062C
HOSE-COOLING,HEAD-THE
390621573
€ 26.00
39062D
390621574
ref: 39062D
HOSE-COOLING,THERMO-R
390621574
€ 16.00
39062E
390621575
ref: 39062E
HOSE-COOLING,PUMP-CYL
390621575
€ 36.50
39062F
390621610
ref: 39062F
HOSE-COOLING,DRAIN
390621610
€ 7.50
39192
391921041
ref: 39192
PIPE-WATER
391921041
€ 23.50
39192A
391921042
ref: 39192A
PIPE-WATER
391921042
€ 80.00
39192B
391921047
ref: 39192B
PIPE-WATER
391921047
€ 21.50
43056
430561051
ref: 43056
BREATHER-BRAKE
430561051
€ 10.00
43057
430571001
ref: 43057
CAP-BREATHER
430571001
€ 3.00
43078
430781141
ref: 43078
RESERVOIR
430781141
€ 54.00
49016
490161163
ref: 49016
COVER-SEAL
490161163
€ 23.50
49044
490441069
ref: 49044
PUMP-WATER
€ 261.50
49054
490541051
ref: 49054
THERMOSTAT
490541051
€ 44.50
49085
490851066
ref: 49085
CAP-ASSY-PRESSURE
490851066
€ 23.50
53044
530441220
ref: 53044
TRIM
530441220
€ 4.50
59502
595021100
ref: 59502
FAN-ASSY
595021100
€ 446.00
92002
920021392
ref: 92002
BOLT,6X22
920021392
€ 3.00
92005
920051268
ref: 92005
FITTING
920051268
€ 23.00
92009
920091261
ref: 92009
SCREW,TAPPING,6MM
920091261
€ 2.00
92009A
920091436
ref: 92009A
SCREW
920091436
€ 2.00
92009B
920091735
ref: 92009B
SCREW,6X55
920091735
€ 3.00
92009C
920091736
ref: 92009C
SCREW,6X40
920091736
€ 3.50
92015
920151487
ref: 92015
NUT
920151487
€ 3.00
92015A
920151758
ref: 92015A
NUT
920151758
€ 4.50
92022
920221976
ref: 92022
WASHER,6.2X6.2X1.0
920221976
€ 4.00
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
92037147
€ 4.50
92055
92055112
ref: 92055
O RING, 53.5 M/M
92055112
€ 4.00
92055A
920551282
ref: 92055A
RING-O
920551282
€ 3.00
92055B
920551402
ref: 92055B
RING-O
920551402
€ 5.00
120
120P0612
ref: 120
BOLT,SOCKET,6X12
120P0612
€ 1.00
130
130C0610
ref: 130
BOLT-FLANGED,6X10,BLA
130C0610
€ 1.50
130A
130G0640
ref: 130A
BOLT,FLANGED,6X40
130G0640
€ 0.50
130B
130J0618
ref: 130B
BOLT-FLANGED,6X18
130J0618
€ 1.50
130C
130J0625
ref: 130C
BOLT-FLANGED,6X25
130J0625
€ 2.00
132
132G0625
ref: 132
BOLT-FLANGED-SMALL
132G0625
€ 3.00
132A
132J0612
ref: 132A
BOLT-FLANGED-SMALL
132J0612
€ 2.50
132B
132J0620
ref: 132B
BOLT-FLANGED-SMALL
132J0620
€ 2.00
132C
132J0645
ref: 132C
BOLT-FLANGED-SMALL
€ 3.00
671
671B2525
ref: 671
O RING,25MM
671B2525
€ 3.00
92055C
920551424
ref: 92055C
RING-O,33.2X2.4
920551424
€ 4.00
92055D
920551495
ref: 92055D
RING-O,WATER PUMP
920551495
€ 8.00
92066
920661183
ref: 92066
PLUG,SENSOR WATER
920661183
€ 38.00
92075
920751665
ref: 92075
DAMPER
920751665
€ 5.00
92093
920931276
ref: 92093
SEAL
920931276
€ 8.00
92093A
920931327
ref: 92093A
SEAL
920931327
€ 15.00
92143
921431063
ref: 92143
COLLAR
921431063
€ 6.00
92143A
921431700
ref: 92143A
COLLAR
921431700
€ 4.50
92143B
921431701
ref: 92143B
COLLAR
€ 4.00
92150
921501186
ref: 92150
BOLT
921501186
€ 3.00
92160
921601297
ref: 92160
DAMPER,WATER PIPE
921601297
€ 7.00
92170
921701284
ref: 92170
CLAMP,CABLE
921701284
€ 7.50
92190
921901233
ref: 92190
TUBE,SWITCH
€ 2.00
