OIL PUMP

VN900B6F VULCAN 900 CLASSIC 2006 USA CALIFORNIA CANADA

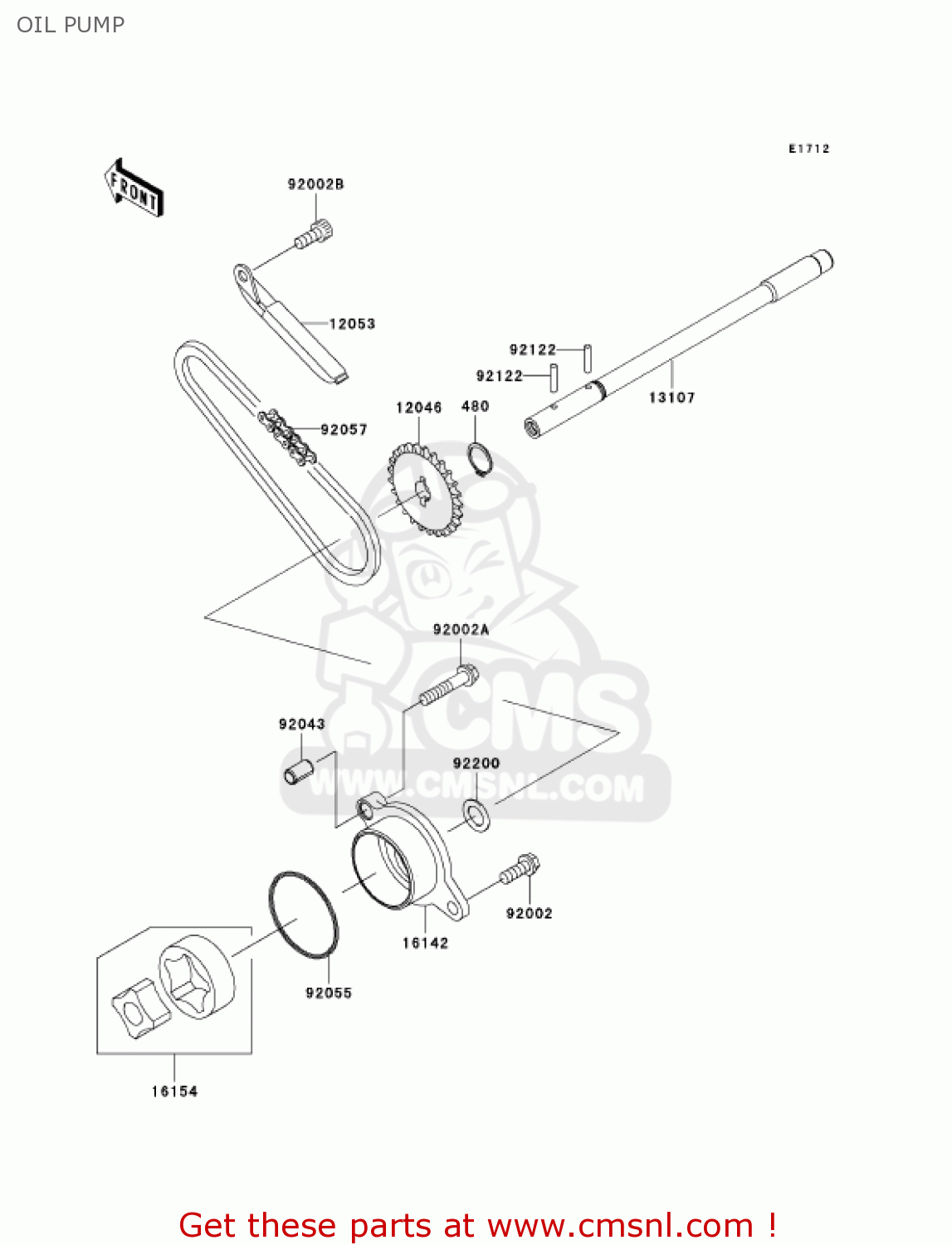

Oil pump diagram VN900B6F VULCAN 900 CLASSIC 2006 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

480

480J1100
ref: 480

CIRCLIP-TYPE-C,11MM

€ 0.50

12046

120460045
ref: 12046

SPROCKET,24T

€ 36.50

12053

120530070
ref: 12053

GUIDE-CHAIN

€ 31.00

13107

131070116
ref: 13107

SHAFT

€ 36.50

16142

161420028
ref: 16142

COVER-PUMP,OIL

€ 37.50

16154

161541056
ref: 16154

ROTOR-PUMP

€ 49.50

92002

920021439
ref: 92002

BOLT,6X16

€ 3.00

92002A

920021534
ref: 92002A

BOLT,6X30

€ 4.00

92002B

920021592
ref: 92002B

BOLT,6X12

€ 2.50

92043

920431263
ref: 92043

PIN,DOWEL,6.2X8X14

€ 0.50

92055

920551279
ref: 92055

RING-O,45MM

€ 4.50

92057

920570113
ref: 92057

CHAIN,DID 25H,54LE

€ 6.50

92122

921221126
ref: 92122

ROLLER,3X15.8

€ 2.50

92200

922001009
ref: 92200

WASHER

€ 3.00
