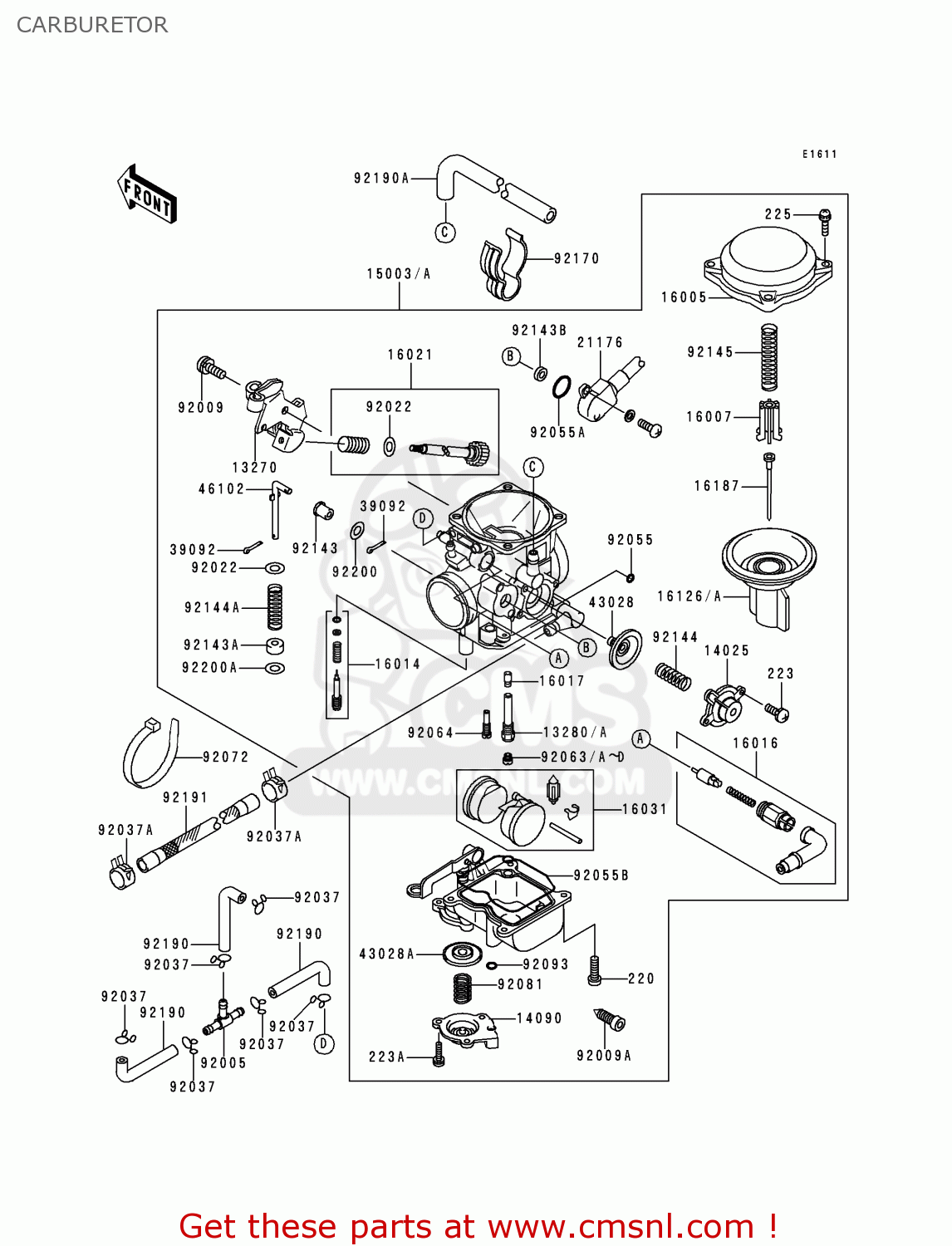

CARBURETOR

ref

part #

description

quantity

13270

132701513
ref: 13270

PLATE

€ 31.00

13280

132801140
ref: 13280

HOLDER,NEEDLE JET

€ 20.00

14025

140251903
ref: 14025

COVER,AIR CUT VALVE

€ 43.00

14090

140901635
ref: 14090

COVER,ACCELERATOR

€ 40.50

15003A

150031562
ref: 15003A

CARBURETOR-ASSY

€ 1,193.50

16005

160051057
ref: 16005

TOP-CHAMBER,MIXING,27

€ 30.50

16007

160071117
ref: 16007

SEAT-SPRING,THROTTLE

€ 16.50

16014

160141081
ref: 16014

SCREW-PILOT AIR

€ 15.50

16016

160161100
ref: 16016

PLUNGER,STARTER

€ 32.00

16017

160171405
ref: 16017

JET-NEEDLE,#6

€ 36.00

16021

160211207
ref: 16021

SCREW-THROTTLE STOP

€ 83.00

16031

160311102
ref: 16031

FLOAT

€ 41.50

16126

161261170
ref: 16126

VALVE,VACUUM

€ 168.00

16126A

161261377
ref: 16126A

VALVE,VACUUM,25KW

€ 62.50

16187

161871097
ref: 16187

NEEDLE-JET,N5AY

€ 20.50

21176

211761096
ref: 21176

SENSOR

€ 166.50

39092

390921058
ref: 39092

PIN-HAIR

€ 2.00

43028

430281053
ref: 43028

DIAPHRAGM,5.9MM,AIR C

€ 62.50

43028A

430281077
ref: 43028A

DIAPHRAGM

€ 62.50

46102

461021385
ref: 46102

ROD

€ 13.00

92005

920051017
ref: 92005

FITTING,TUBE

€ 6.50

92009

920091365
ref: 92009

SCREW

€ 4.50

92009A

920091551
ref: 92009A

SCREW,DRAIN

€ 6.50

92022

920221480
ref: 92022

WASHER,PLAIN,STOP SPR

€ 3.00

92037

920371610
ref: 92037

CLAMP

€ 1.50

92037A

920372082
ref: 92037A

CLAMP

€ 1.00

92055

920551245
ref: 92055

RING-O

€ 3.50

92055A

920551574
ref: 92055A

RING-O

€ 2.50

92055B

920551615
ref: 92055B

RING-O,FLOAT CHAMBER

€ 18.00

92063

920631013
ref: 92063

MAIN JET,#140

€ 9.00

92063A

920631014
ref: 92063A

MAIN JET,#135

€ 9.50

92063B

920631015
ref: 92063B

MAIN JET,#138

€ 9.50

92063C

920631075
ref: 92063C

MAIN JET,2ND #130

€ 9.50

92063D

920631076
ref: 92063D

JET-MAIN,#132

€ 9.50

220

220D0414
ref: 220

SCREW-PAN-CROS

€ 2.00

223

223C0408
ref: 223

SCREW-PAN-WS-CROS

€ 1.00

223A

223D0410
ref: 223A

SCREW-PAN-WS-CROS

€ 2.50

225

225C0418
ref: 225

SCREW-PAN-WSP-CROS

€ 2.50

92064

920641174
ref: 92064

JET-PILOT

€ 12.50

92072

920721197
ref: 92072

BAND

€ 5.00

92081

920811092
ref: 92081

SPRING,DIAPHRAGM

€ 8.00

92093

920931046
ref: 92093

SEAL-"U"RING

€ 4.00

92143

921431790
ref: 92143

COLLAR

€ 1.50

92143A

921431791
ref: 92143A

COLLAR

€ 5.50

92143B

921431907
ref: 92143B

COLLAR

€ 6.00

92144

921441885
ref: 92144

SPRING

€ 7.50

92144A

921441886
ref: 92144A

SPRING

€ 6.00

92145

921451064
ref: 92145

SPRING,VACUUM VALVE

€ 18.50

92170

921701703
ref: 92170

CLAMP,HOSE

€ 5.50

92190

921901610
ref: 92190

TUBE,4X9X80

€ 3.00

92190A

921901619
ref: 92190A

TUBE,7X12X540,GREEN

€ 17.50

92191

921911351
ref: 92191

TUBE,FUEL

€ 15.50

92200

922001274
ref: 92200

WASHER

€ 1.50

92200A

922001275
ref: 92200A

WASHER

€ 1.50
