HEADLIGHT(S)

VN800B8 VULCAN 800 CLASSIC 2003 USA CALIFORNIA CANADA

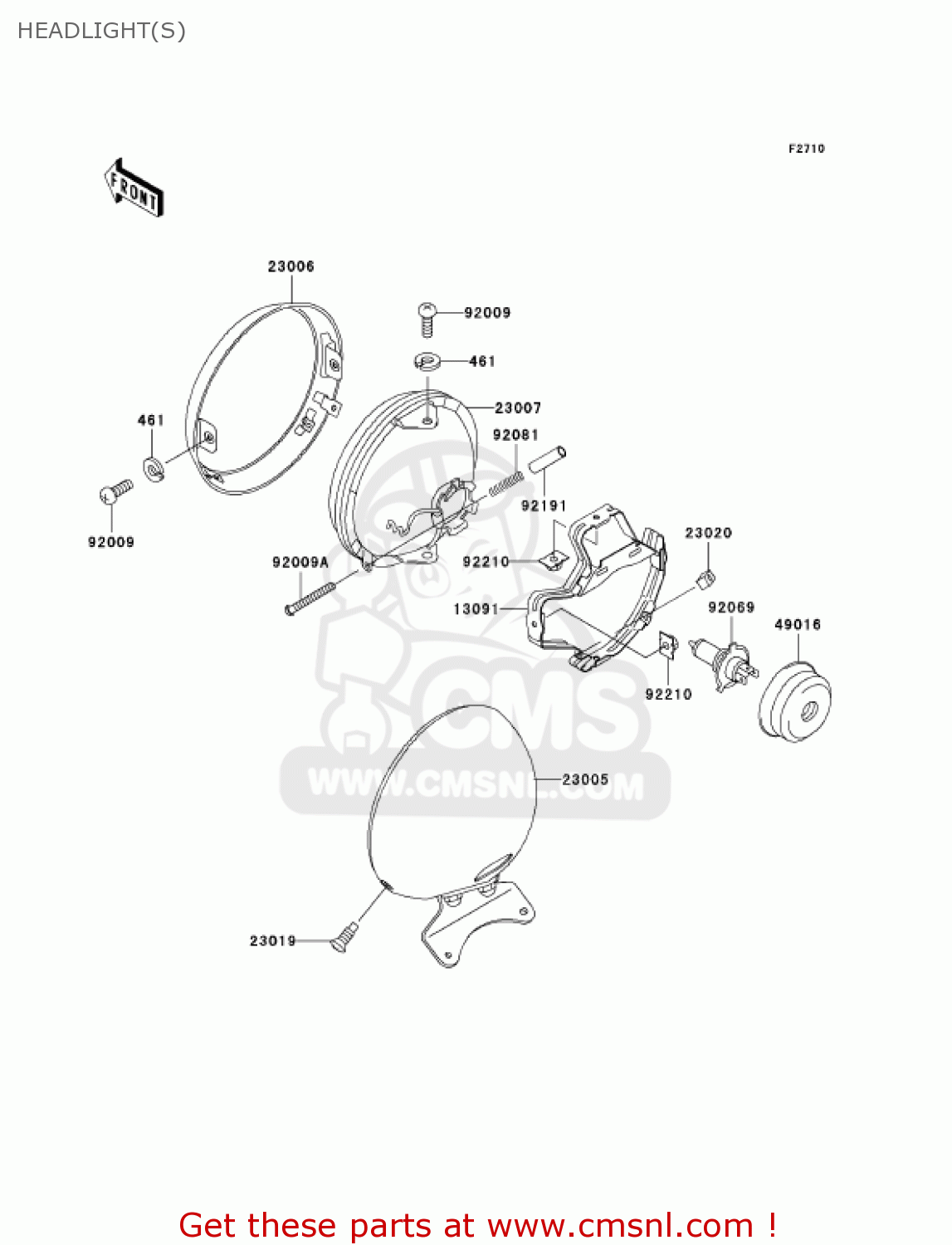

Headlight(s) diagram VN800B8 VULCAN 800 CLASSIC 2003 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

461

461F0500
ref: 461

WASHER-SPRING,5MM

€ 0.50

13091

130911948
ref: 13091

HOLDER,HEAD LAMP

€ 33.50

23005

230051152
ref: 23005

BODY-COMP-HEAD LAMP

€ 233.50

23006

230061071
ref: 23006

RIM-LAMP

€ 68.00

23007

230071338
ref: 23007

LENS-COMP,HEAD LAMP

€ 162.50

23019

23019024
ref: 23019

SCREW, SPECIAL 5X14

€ 1.50

23020

23020018
ref: 23020

NUT,4MM,FOCUS ADJUST

€ 3.00

49016

490161046
ref: 49016

COVER-SEAL,HEAD LAMP

€ 7.50

92009

920091296
ref: 92009

SCREW,5X12

€ 2.50

92009A

920091816
ref: 92009A

SCREW

€ 3.50

92069

920691002
ref: 92069

BULB,12V-60155W

€ 15.00

92081

920811103
ref: 92081

SPRING,HEAD LAMP LENS

€ 3.00

92191

921911217
ref: 92191

TUBE

€ 1.50

92210

922101060
ref: 92210

NUT

€ 1.50

HEADLIGHT(S)

all assemblies
