GEAR CHANGE MECHANISM

VN800B7 VULCAN 800 CLASSIC 2002 USA CALIFORNIA CANADA

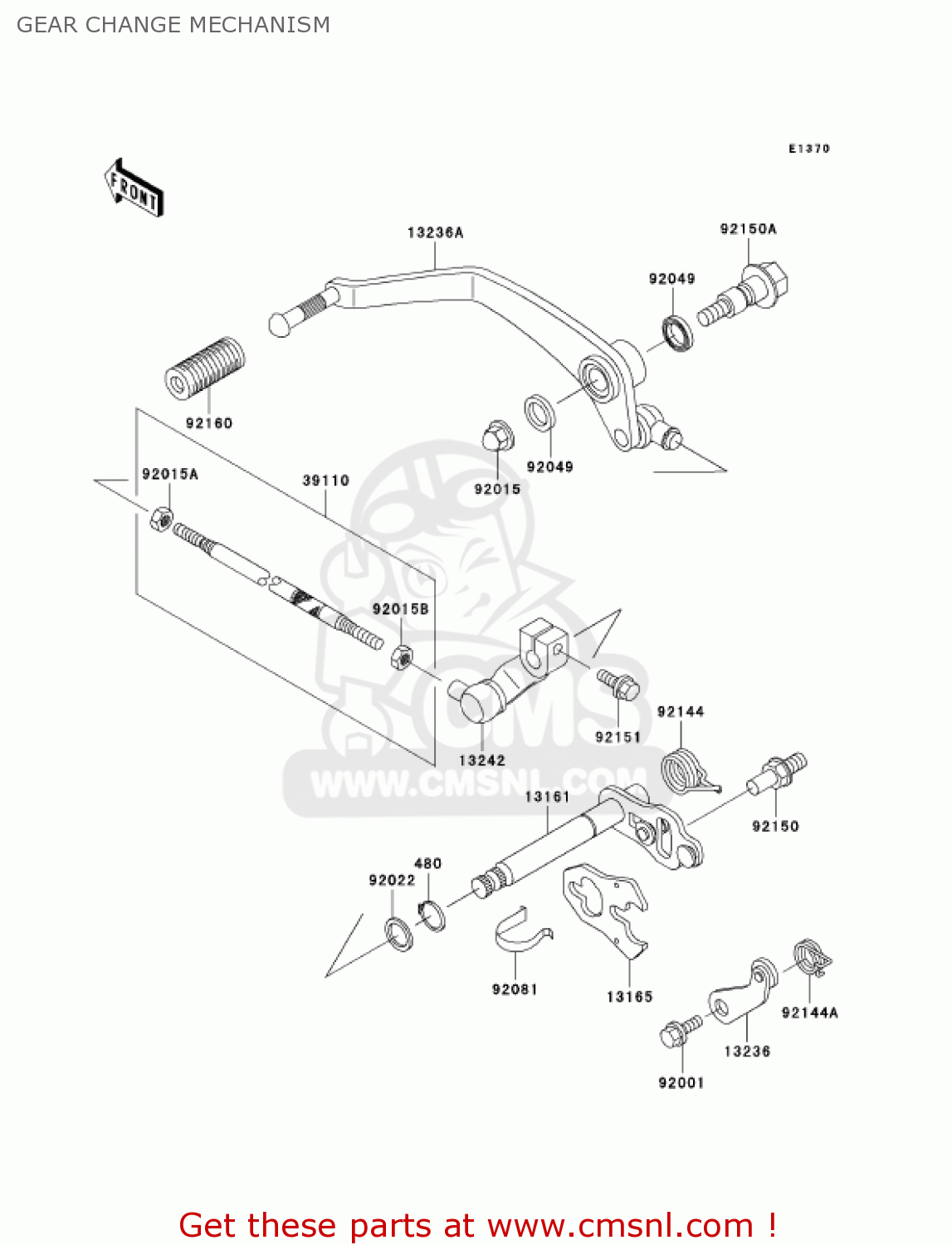

Gear change mechanism diagram VN800B7 VULCAN 800 CLASSIC 2002 USA CALIFORNIA CANADA

GEAR CHANGE MECHANISM VN800B7 VULCAN 800 CLASSIC 2002 USA CALIFORNIA CANADA
GEAR CHANGE MECHANISM VN800B7 VULCAN 800 CLASSIC 2002 USA CALIFORNIA CANADA
GEAR CHANGE MECHANISM VN800B7 VULCAN 800 CLASSIC 2002 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
480
480J1300
ref: 480
CIRCLIP-TYPE-C,13MM
480J1300
€ 2.50
13161
131611218
ref: 13161
LEVER-COMP-CHANGE SHA
€ 57.00
13165
131651151
ref: 13165
PAWL,CHANGE LEVER
131651151
€ 9.50
13236
132361126
ref: 13236
LEVER-COMP,POSITION
132361126
€ 9.00
13236A
132361407
ref: 13236A
LEVER-COMP
132361407
€ 59.00
13242
132421290
ref: 13242
LEVER-ASSY-CHANGE
132421290
€ 38.50
39110
391101124
ref: 39110
ROD-ASSY-TIE
391101124
€ 13.50
92001
920011715
ref: 92001
BOLT
920011715
€ 7.00
92015
920151370
ref: 92015
NUT,CAP,8MM
920151370
€ 3.00
92015A
920151443
ref: 92015A
NUT
920151443
€ 2.50
92015B
920151444
ref: 92015B
NUT
920151444
€ 3.00
92022
920221224
ref: 92022
WASHER,13.2X20X0.5
920221224
€ 2.50
92049
920491398
ref: 92049
SEAL-OIL,VB13193
920491398
€ 4.00
92081
920811829
ref: 92081
SPRING,CHANGE LEVER
920811829
€ 6.00
92144
921441345
ref: 92144
SPRING,CHANGE PEDAL R
921441345
€ 11.50
92144A
921441850
ref: 92144A
SPRING,LEVER
921441850
€ 2.00
92150
921501869
ref: 92150
BOLT,RETURN SPRING
€ 7.00
92150A
921501908
ref: 92150A
BOLT,CHANGE PEDAL
921501908
€ 14.50
92151
921511450
ref: 92151
BOLT,6X20
921511450
€ 1.50
92160
921601637
ref: 92160
DAMPER,CHANGE PEDAL
921601637
€ 5.50
