SEAT

VN800B2 VULCAN 800 CLASSIC 1997 USA CALIFORNIA CANADA

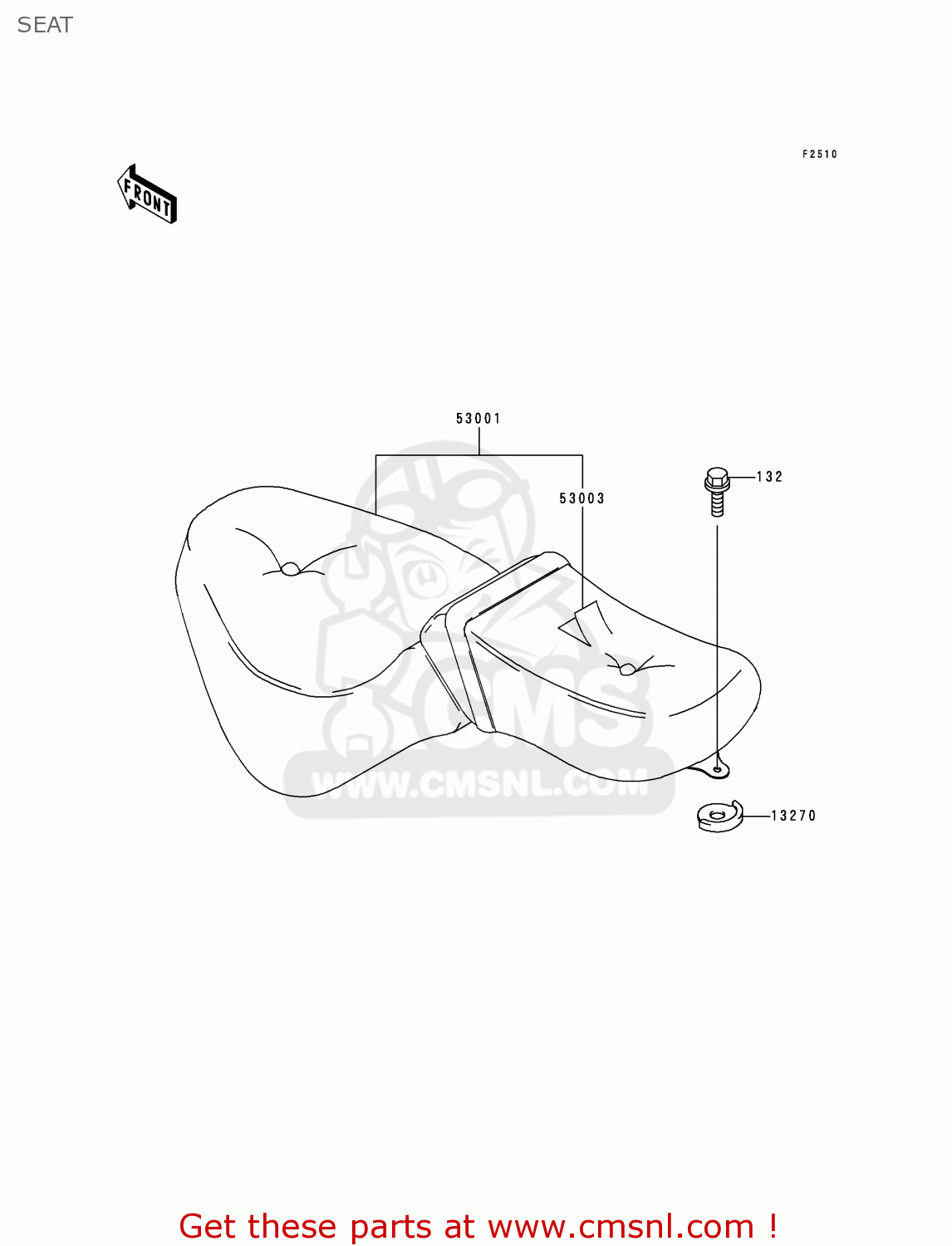

Seat diagram VN800B2 VULCAN 800 CLASSIC 1997 USA CALIFORNIA CANADA

SEAT VN800B2 VULCAN 800 CLASSIC 1997 USA CALIFORNIA CANADA

SEAT VN800B2 VULCAN 800 CLASSIC 1997 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

132

132E0614
ref: 132

BOLT-FLANGED-SMALL,6X

€ 2.50

13270

132701484
ref: 13270

PLATE,RR SEAT,FR

€ 5.00

53001

530011802MA
ref: 53001

SEAT-ASSY,DUAL,W/BAND

€ 423.50

53003

530031352MA
ref: 53003

LEATHER,SEAT,BLACK

€ 251.50
