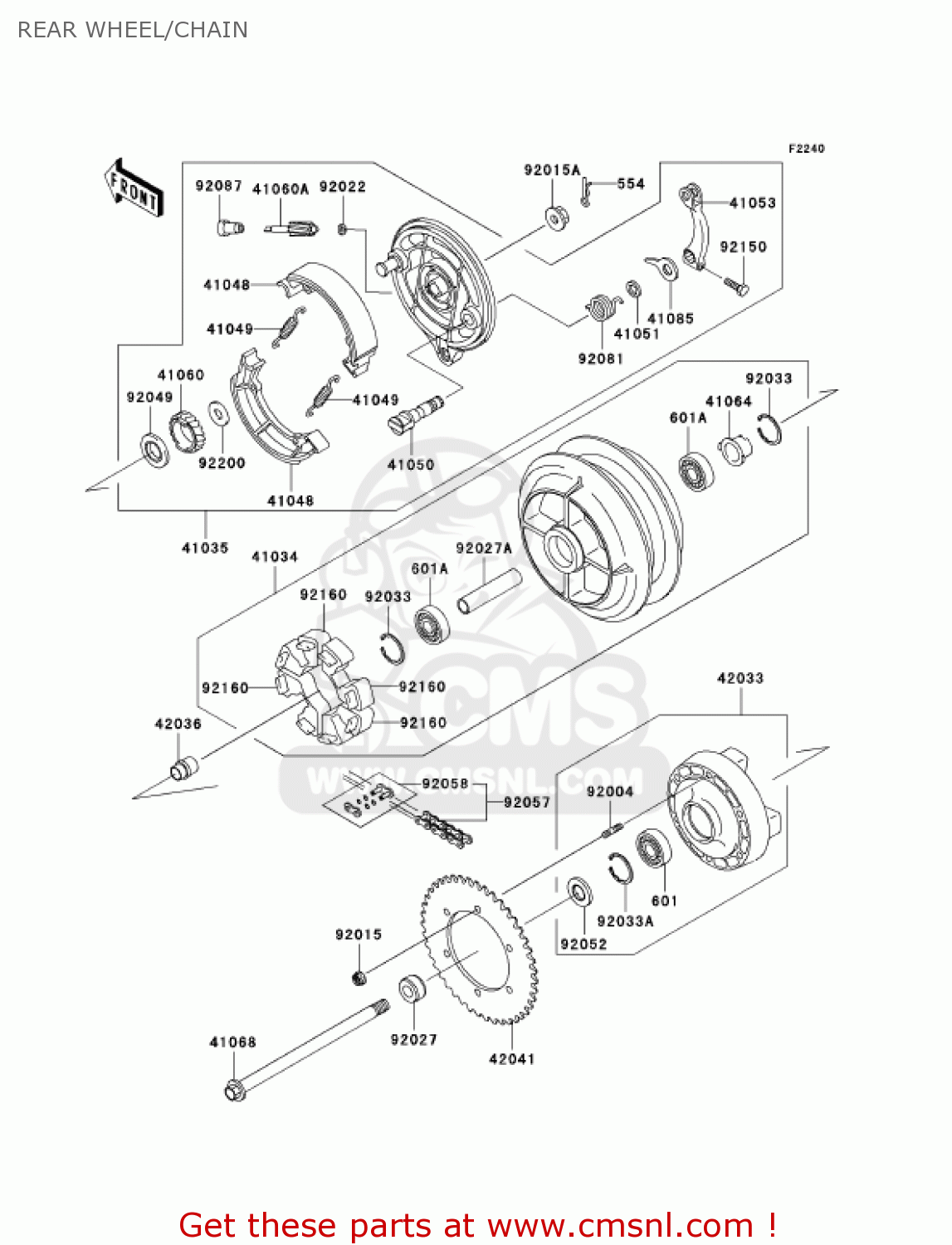

REAR WHEEL/CHAIN

ref

part #

description

quantity

554

554A1000
ref: 554

PIN-SNAP,10MM

€ 1.00

601

601B6205UG
ref: 601

BEARING-BALL,#6205UG

€ 27.00

601A

601B6303UU
ref: 601A

BEARING-BALL,6303LLUC

€ 30.50

41034

410341248
ref: 41034

DRUM-ASSY,REAR BRAKE

€ 393.00

41035

410351482
ref: 41035

PANEL-ASSY-BRAKE,RR

€ 498.00

41048

410481070
ref: 41048

SHOE-BRAKE (NAS)

€ 26.00

41049

41049012
ref: 41049

SPRING, BRKE SHOE

€ 6.00

41050

410501013
ref: 41050

CAM-BRAKE

€ 35.00

41051

41051003
ref: 41051

DUST SHIELD-BRAKE CAM

€ 2.50

41053

410531063
ref: 41053

LEVER-BRAKE CAM

€ 43.00

41060

410601154
ref: 41060

GEAR-METER SCREW,23T

€ 20.50

41060A

410601155
ref: 41060A

GEAR-METER SCREW,8T

€ 22.00

41064

410641057
ref: 41064

RECEIVER-SPEEDOMETER

€ 41.50

41068

410681365
ref: 41068

AXLE,RR

€ 59.50

41085

410851054
ref: 41085

INDICATOR

€ 9.00

42033

420331219
ref: 42033

COUPLING-ASSY,RR HUB

€ 194.50

42036

420361146
ref: 42036

SLEEVE,RR HUB,L=33

€ 34.00

42041

420411473
ref: 42041

SPROCKET-HUB,42T

€ 56.00

92004

920041275
ref: 92004

STUD

€ 6.50

92015

920151335
ref: 92015

NUT,FLANGED,10MM

€ 1.50

92015A

920151946
ref: 92015A

NUT

€ 8.50

92022

920221511
ref: 92022

WASHER,5X9.5X0.8

€ 2.50

92027

920271321
ref: 92027

COLLAR,REAR AXLE,LH,L

€ 17.00

92027A

920271555
ref: 92027A

COLLAR,17.2X25X96

€ 13.00

92033

920331042
ref: 92033

CIRCLIP,47M/M

€ 4.00

92033A

920331043
ref: 92033A

RING,SNAP,56.2M/M

€ 6.00

92049

920491057
ref: 92049

OIL SEAL,BJN30427-C3

€ 7.50

92052

92052006
ref: 92052

OIL SEAL WTC35527

€ 6.50

92057

920570002
ref: 92057

CHAIN,DRIVE,EK50MV-XX

€ 215.00

92058

920581098
ref: 92058

JOINT-CHAIN,DRIVE

€ 8.50

92081

920811816
ref: 92081

SPRING,BRAKE CAM LEVE

€ 6.50

92087

920871060
ref: 92087

BUSHING-METER GEAR

€ 12.50

92150

921501797
ref: 92150

BOLT

€ 3.50

92160

921601697
ref: 92160

DAMPER,SHOCK,RR HUB

€ 16.00

92200

922001269
ref: 92200

WASHER,24X32X1.5

€ 4.00

all assemblies
