TAILLIGHT(S)

VN800B1 VULCAN 800 CLASSIC 1996 USA CALIFORNIA CANADA

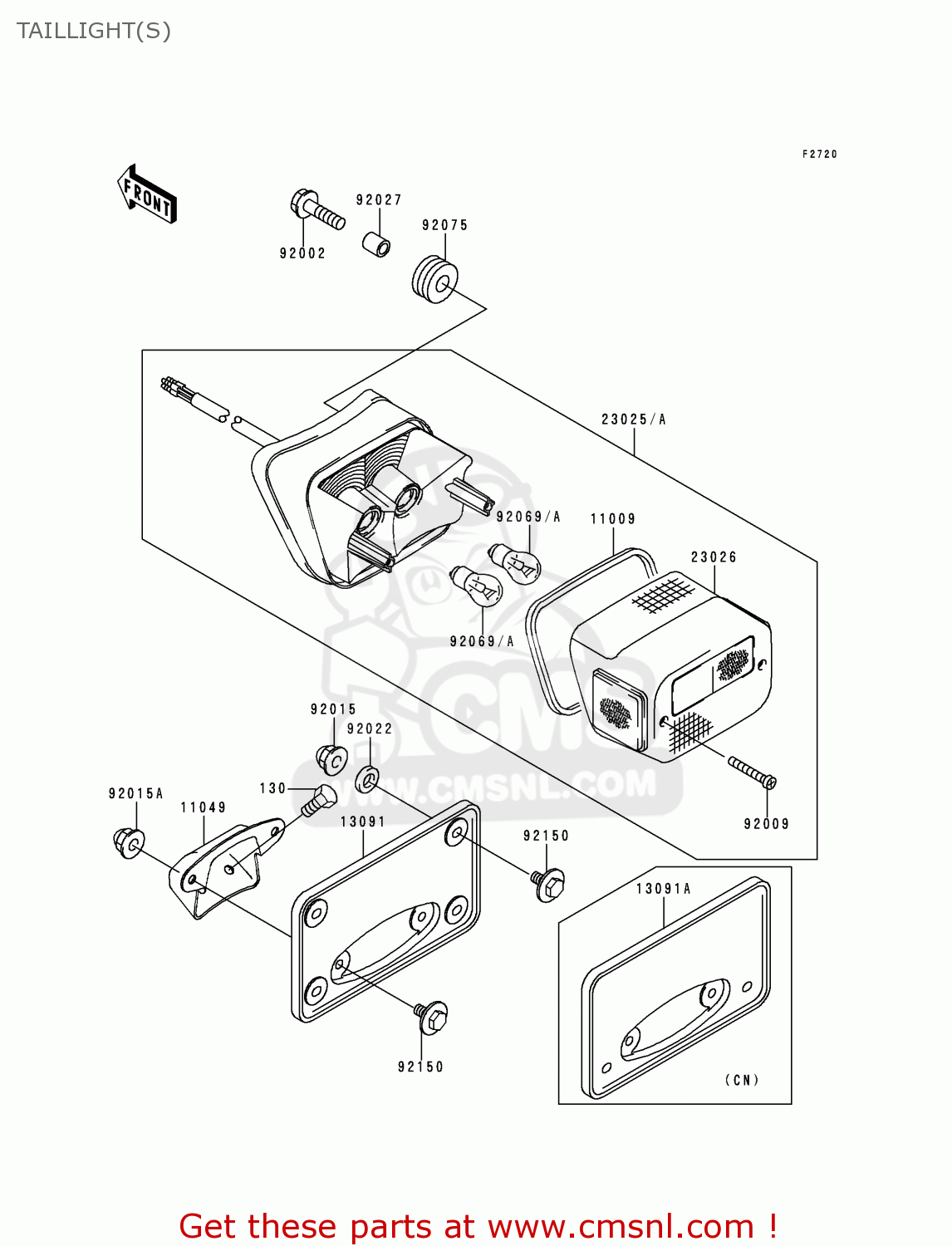

Taillight(s) diagram VN800B1 VULCAN 800 CLASSIC 1996 USA CALIFORNIA CANADA

TAILLIGHT(S) VN800B1 VULCAN 800 CLASSIC 1996 USA CALIFORNIA CANADA
TAILLIGHT(S) VN800B1 VULCAN 800 CLASSIC 1996 USA CALIFORNIA CANADA
TAILLIGHT(S) VN800B1 VULCAN 800 CLASSIC 1996 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130V0610
ref: 130
BOLT-FLANGED,6X10
130V0610
€ 0.50
11009
110091660
ref: 11009
GASKET,TAIL LAMP LENS (NAS)
110091660
€ 5.50
11049
110491436
ref: 11049
BRACKET,LICENSE PLATE
€ 54.00
13091
130911500
ref: 13091
CAUS
HOLDER,LICENSE PLATE
130911500
€ 16.00
13091A
130911952
ref: 13091A
CN
HOLDER,LICENSE PLATE
€ 0.00
23025
230251252
ref: 23025
LAMP-TAIL
€ 252.00
23026
230261087
ref: 23026
LENS,TAIL LAMP
230261087
€ 64.50
92002
920021262
ref: 92002
BOLT,6X22
920021262
€ 2.00
92009
920091378
ref: 92009
SCREW,TAPPING,4X20
920091378
€ 2.50
92015
920151170
ref: 92015
CN
NUT,CAP 6MM,BLACK
920151170
€ 0.50
92015
920151170
ref: 92015
CAUS
NUT,CAP 6MM,BLACK
920151170
€ 0.50
92015A
920151385
ref: 92015A
NUT,CAP,6MM
920151385
€ 2.50
92022
920221346
ref: 92022
CN
WASHER,6.5X20X1.6,BLA
920221346
€ 0.50
92022
920221346
ref: 92022
CAUS
WASHER,6.5X20X1.6,BLA
920221346
€ 0.50
92027
92027162
ref: 92027
COLLAR-REAR FENDER
92027162
€ 4.50
92069
92069059
ref: 92069
BULB,12V 32/3CP
92069059
€ 5.50
92075
92075209
ref: 92075
DAMPER RUBBER
92075209
€ 3.00
92150
921501133
ref: 92150
CN
BOLT,6X14
921501133
€ 2.50
92150
921501133
ref: 92150
CAUS
BOLT,6X14
921501133
€ 2.50
