HEADLIGHT(S)
VN800A6 VULCAN 800 2000 USA CALIFORNIA

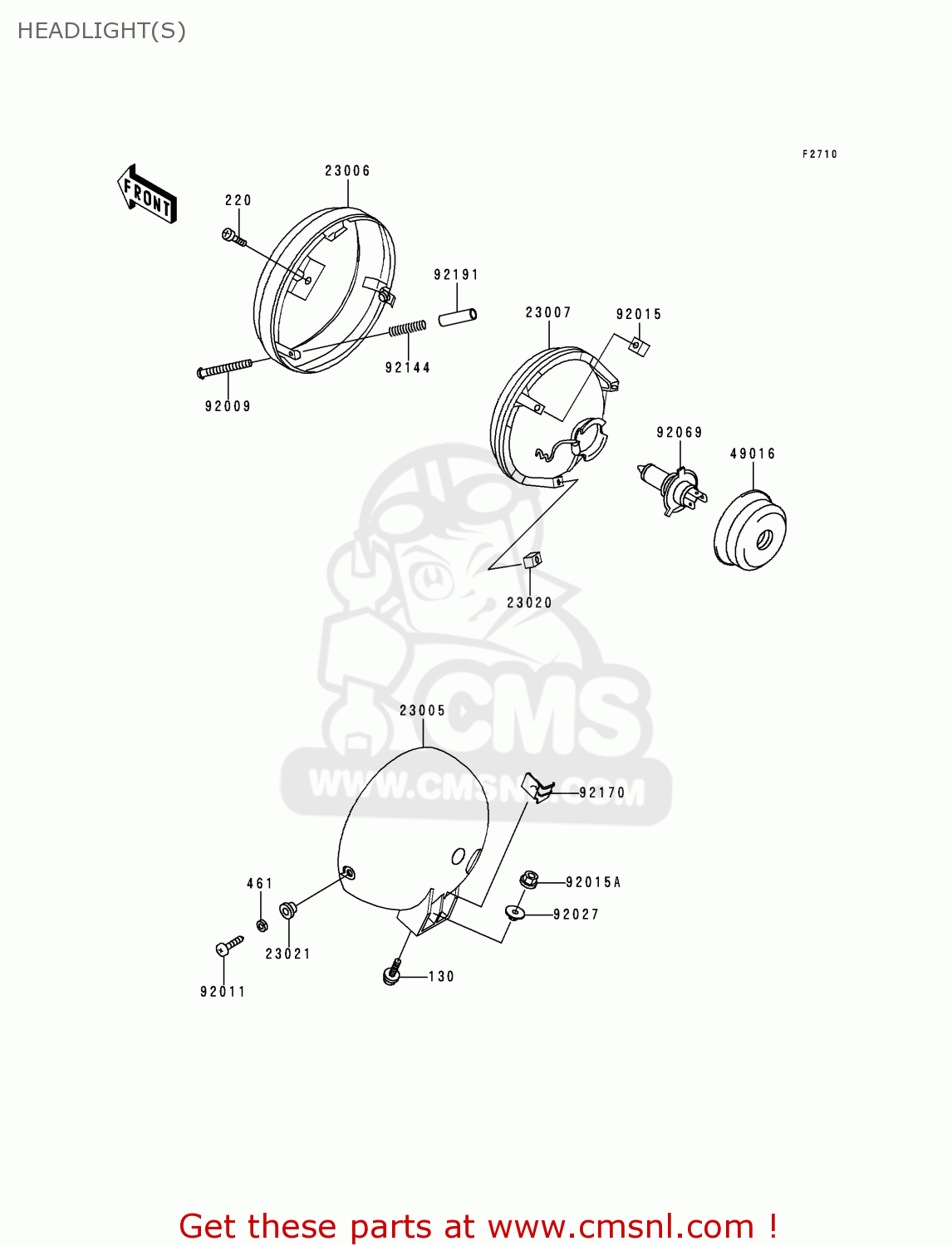

Headlight(s) diagram VN800A6 VULCAN 800 2000 USA CALIFORNIA
HEADLIGHT(S) VN800A6 VULCAN 800 2000 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
130
130V0620
ref: 130
BOLT-FLANGED
€ 2.00
220
220D0512
ref: 220
SCREW-PAN-CROS,5X12
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
€ 0.50
23005
230051149
ref: 23005
BODY-COMP-HEAD LAMP
€ 117.00
23006
230061070
ref: 23006
RIM-LAMP
€ 61.50
23007
230071169
ref: 23007
LENS-COMP, HEAD LAMP
€ 138.50
23020
23020018
ref: 23020
NUT,4MM,FOCUS ADJUST
€ 3.00
23021
23021010
ref: 23021
WASHER
€ 2.50
49016
490161129
ref: 49016
COVER-SEAL,HEAD LAMP
€ 8.00
92009
920091472
ref: 92009
SCREW,FOCUS ADJUST,4X
€ 3.50
92011
92011024
ref: 92011
SCREW-PAN HEAD,5MM
€ 2.00
92015
920151157
ref: 92015
NUT,5MM
€ 3.50
92015A
920151367
ref: 92015A
NUT,FLANGED,6MM
€ 0.50
92027
92027252
ref: 92027
COLLAR,L=6.5
€ 3.50
92069
920691002
ref: 92069
BULB,12V-60155W
€ 15.00
92144
921441149
ref: 92144
SPRING,FOCUS ADJUST
€ 5.50
92170
921701624
ref: 92170
CLAMP
€ 3.50
92191
921911217
ref: 92191
TUBE
€ 1.50
