MUFFLER(S)

VN800A4 1998 EUROPA UK FR NL AR FG GR IT NR SD ST

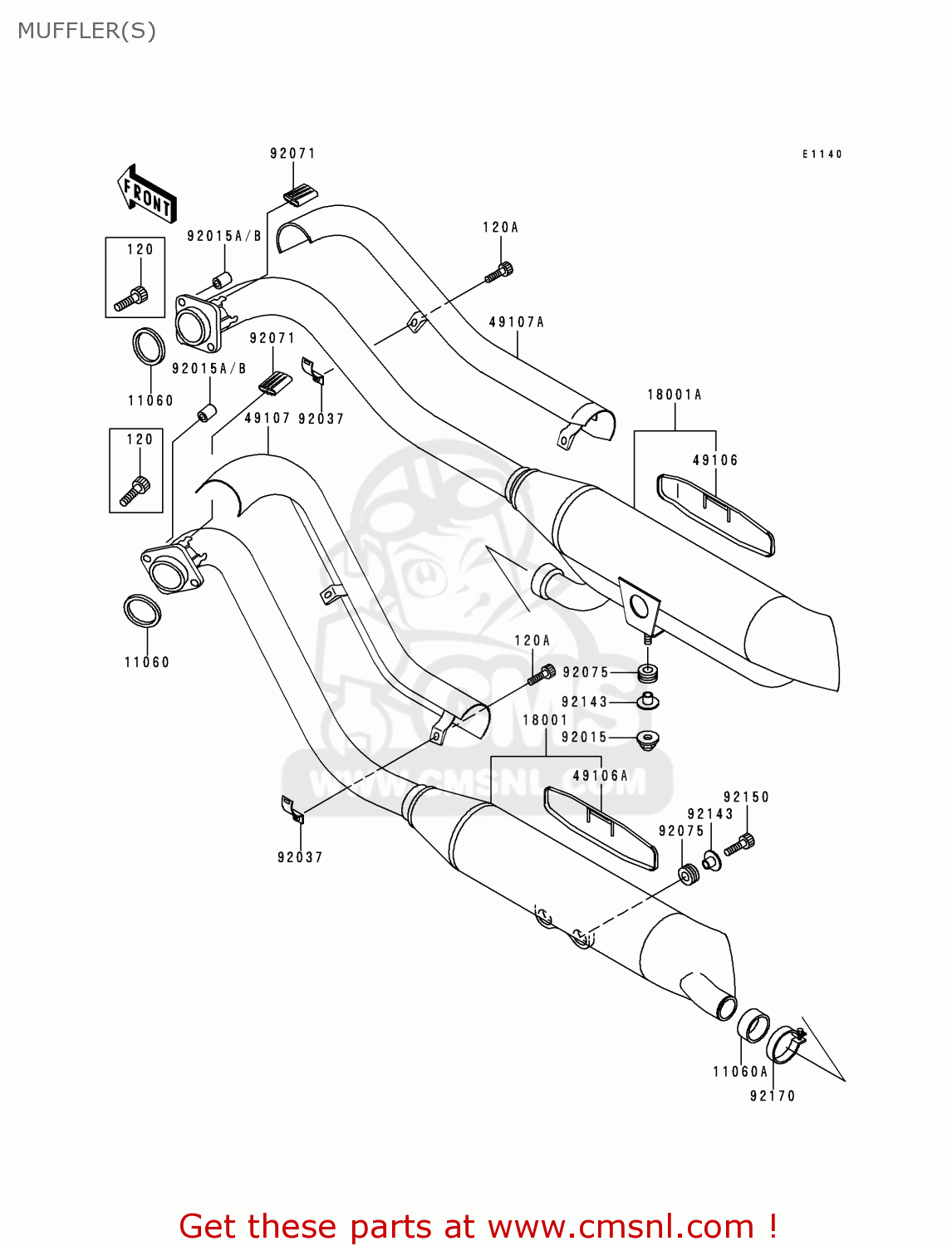

Muffler(s) diagram VN800A4 1998 EUROPA UK FR NL AR FG GR IT NR SD ST

prices are in EUR

ref

part #

description

quantity

120A

120Z0620
ref: 120A

BOLT-SOCKET,6X20

€ 3.00

11060

110601680
ref: 11060

GASKET,EXHAUST PIPE (NAS)

€ 8.00

11060A

110601681
ref: 11060A

GASKET,JOINT (NAS)

€ 20.50

18001

180011941
ref: 18001

MUFFLER,FR

€ 563.50

18001A

180011942
ref: 18001A

MUFFLER,RR

€ 711.00

49106

491061179
ref: 49106

COVER-MUFFLER,RR

€ 19.00

49106A

491061182
ref: 49106A

COVER-MUFFLER,FR

€ 23.00

49107

491071113
ref: 49107

COVER-EXHAUST PIPE,FR

€ 107.00

49107A

491071114
ref: 49107A

COVER-EXHAUST PIPE,RR

€ 101.50

92015

920151370
ref: 92015

NUT,CAP,8MM

€ 3.00

92015A

920151983
ref: 92015A

NUT

€ 7.50

92037

920371613
ref: 92037

CLAMP,EXHAUST PIPE CO

€ 9.50

92071

920711226
ref: 92071

GROMMET

€ 4.00

92075

920751898
ref: 92075

DAMPER

€ 3.00

92143

921431753
ref: 92143

COLLAR

€ 6.00

92150

921501912
ref: 92150

BOLT,SOCKET,8X25

€ 3.00

92170

921701538
ref: 92170

CLAMP

€ 15.00

MUFFLER(S)

all assemblies
