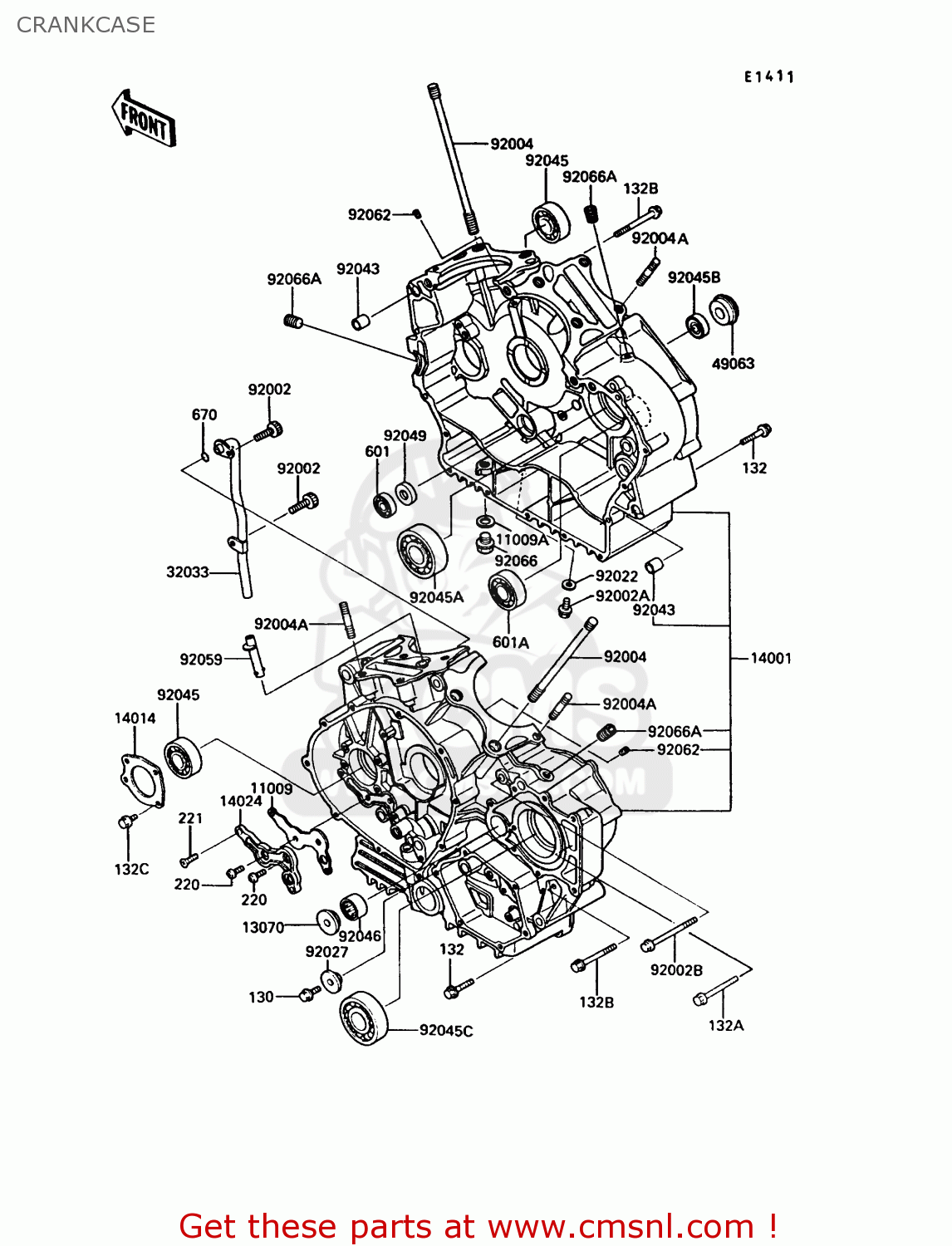

CRANKCASE

ref

part #

description

quantity

130

130P0616
ref: 130

BOLT-FLANGED

€ 1.00

132

132E0630
ref: 132

BOLT-FLANGED-SMALL

€ 3.00

132A

132E0640
ref: 132A

BOLT-FLANGED-SMALL

€ 3.50

132B

132E0660
ref: 132B

BOLT-FLANGED-SMALL

€ 2.50

132C

132G0616
ref: 132C

BOLT-FLANGED-SMALL

€ 1.00

220

220B0616
ref: 220

SCREW-PAN HEAD,6X16

€ 2.50

221

221B0620
ref: 221

SCREW-CNTSNK HD,6X20

€ 0.50

601

601A6001
ref: 601

BEARING-BALL

€ 9.00

601A

601A6204Z
ref: 601A

BEARING-BALL

€ 28.00

670

670B1508
ref: 670

O RING,8MM

€ 1.00

11009

110091471
ref: 11009

GASKET,OIL LINE COVER (MCA)

€ 4.50

11009A

92065097
ref: 11009A

GASKET,DRAIN PLUG BOL (NAS)

€ 1.00

13070

130701127
ref: 13070

GUIDE

€ 15.50

14001

140015205
ref: 14001

SET-CRANKCASE

€ 1,904.00

14014

140141068
ref: 14014

PLATE-POSITION

€ 10.50

14024

140241074
ref: 14024

COVER,OIL LINE

€ 19.00

32033

320331649
ref: 32033

PIPE,BREATHER

€ 31.00

49063

490631052
ref: 49063

SEAL-MECHANICAL

€ 32.50

92002

920021592
ref: 92002

BOLT,6X12

€ 2.50

92002A

920021628
ref: 92002A

BOLT,6X10

€ 3.00

92002B

920021629
ref: 92002B

BOLT,10X80

€ 6.50

92004

920041140
ref: 92004

STUD,10X163

€ 10.00

92004A

920041142
ref: 92004A

STUD,8X28.5

€ 6.00

92022

92022077
ref: 92022

WASHER,6.1X12X1

€ 0.50

92027

920271844
ref: 92027

COLLAR

€ 7.50

92043

920431266
ref: 92043

PIN,11X14X12.3

€ 1.00

92045

920451041
ref: 92045

BEARING-BALL,TMB204 J

€ 32.50

92045A

920451137
ref: 92045A

BEARING-BALL,TMB305

€ 43.50

92045B

920451151
ref: 92045B

BEARING-BALL,6001JRXL

€ 26.00

92045C

920451167
ref: 92045C

BEARING-BALL,TMB305X3

€ 43.50

92046

920461054
ref: 92046

BEARING-NEEDLE,HK2016

€ 20.00

92049

920491228
ref: 92049

SEAL-OIL,AC037AE0

€ 7.00

92059

920591620
ref: 92059

TUBE

€ 7.00

92062

92062011
ref: 92062

NOZZLE,OIL

€ 5.50

92066

920661174
ref: 92066

PLUG,OIL DRAIN,12X15

€ 4.00

92066A

920661227
ref: 92066A

PLUG,OIL LINE,1/8X7

€ 4.00
