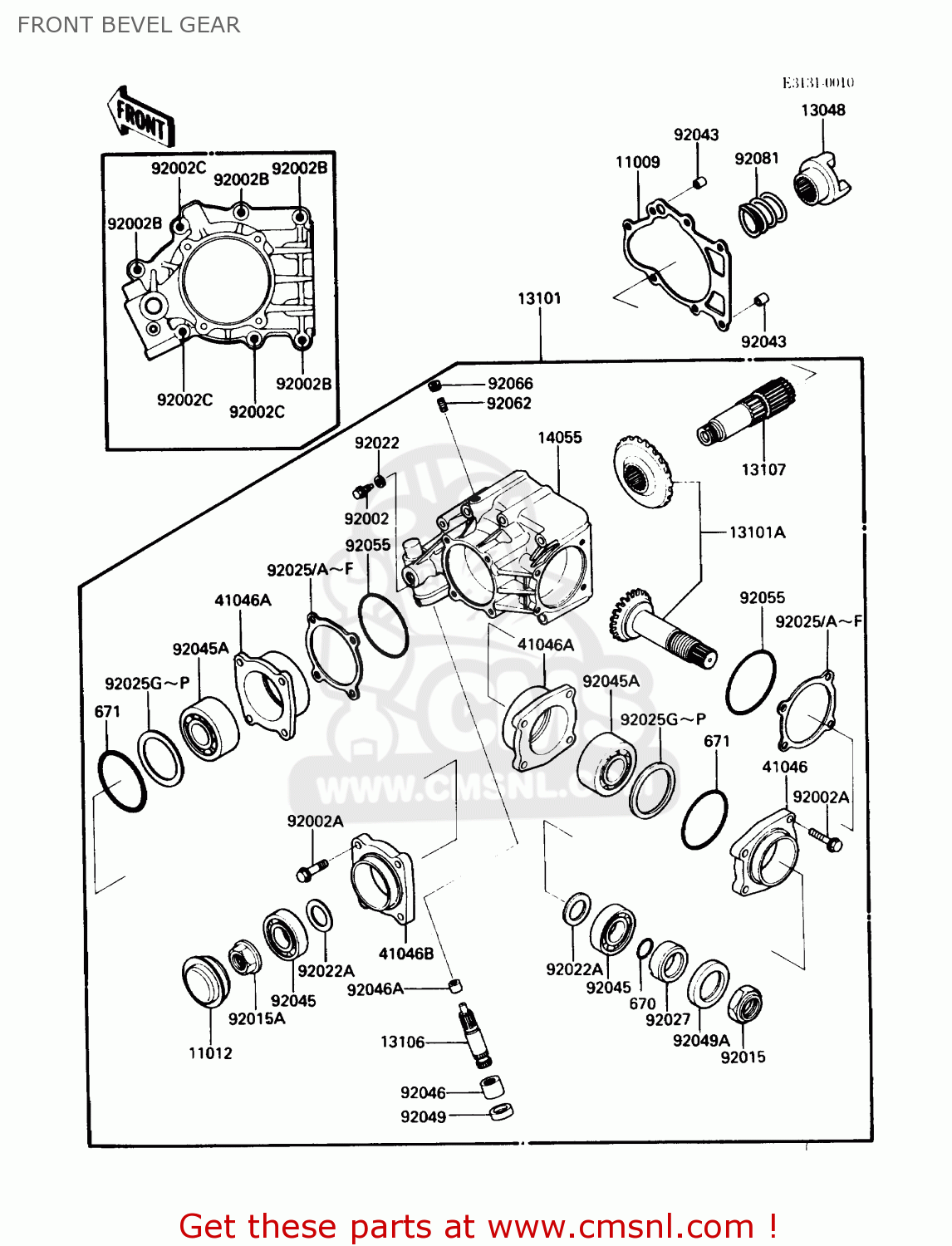

FRONT BEVEL GEAR

ref

part #

description

quantity

11009

110091510
ref: 11009

GASKET,GEAR CASE

€ 13.50

11012

110121672
ref: 11012

CAP,FRONT BEVEL

€ 29.00

13048

130481058
ref: 13048

CAM-DAMPER

€ 73.00

13101

131011094
ref: 13101

GEAR-ASSY,BEVEL,FR

€ 2,243.00

13101A

131015048
ref: 13101A

GEAR-ASSY,BEVEL,FR

€ 656.00

13106

131061068
ref: 13106

SHAFT-CLUTCH RELEASE

€ 29.50

13107

131071166
ref: 13107

SHAFT,BEVEL GEAR,FR

€ 105.00

14055

140551068
ref: 14055

CASE-GEAR,BEVEL,FR

€ 622.50

41046

410461072
ref: 41046

HOUSING-BEARING,BEVEL

€ 100.00

41046A

410461073
ref: 41046A

HOUSING-BEARING,BEVEL

€ 100.00

41046B

410461090
ref: 41046B

HOUSING-BEARING,BEVEL

€ 100.00

92002

920021357
ref: 92002

BOLT

€ 3.00

92002A

920021623
ref: 92002A

BOLT,6X32

€ 2.50

92002B

920021624
ref: 92002B

BOLT,6X85

€ 4.00

92002C

920021625
ref: 92002C

BOLT

€ 7.50

92015

920151480
ref: 92015

NUT,25MM

€ 13.00

92015A

920151543
ref: 92015A

NUT

€ 12.00

92022

92022077
ref: 92022

WASHER,6.1X12X1

€ 0.50

92022A

920221719
ref: 92022A

WASHER

€ 9.00

92025

920251258
ref: 92025

SHIM,T=0.10

€ 7.50

92025A

920251259
ref: 92025A

SHIM,T=0.15

€ 8.00

92025B

920251260
ref: 92025B

SHIM,T=0.20

€ 7.00

92025C

920251261
ref: 92025C

SHIM,T=0.30

€ 6.50

92025D

920251262
ref: 92025D

SHIM,T=0.60

€ 7.00

92025E

920251263
ref: 92025E

SHIM,T=0,90

€ 6.50

92025F

920251264
ref: 92025F

SHIM,T=1.20

€ 8.00

92025G

920251668
ref: 92025G

SHIM,52.5X61.5X0.12

€ 6.50

92025H

920251669
ref: 92025H

SHIM,52.5X61.5X0.15

€ 7.50

92025I

920251670
ref: 92025I

SHIM,52.5X61.5X0.18

€ 7.50

92025J

920251671
ref: 92025J

SHIM,52.5X61.5X0.8

€ 7.50

92025K

920251672
ref: 92025K

SHIM,52.5X61.5X0.9

€ 7.00

92025L

920251673
ref: 92025L

SHIM,52.5X61.5X1.0

€ 7.50

92025M

920251674
ref: 92025M

SHIM,52.5X61.5X1.1

€ 8.50

92025N

920251675
ref: 92025N

SHIM,52.5X61.5X1.2

€ 9.50

92025O

920251676
ref: 92025O

SHIM,52.5X61.5X1.3

€ 9.50

92025P

920251677
ref: 92025P

SHIM,52.5X61.5X1.4

€ 9.50

92027

920271843
ref: 92027

COLLAR

€ 23.50

92043

92042007
ref: 92043

PIN-DOWEL

€ 4.00

92045

920451115
ref: 92045

BEARING-BALL,6205

€ 23.00

92045A

920451147
ref: 92045A

BEARING-BALL,5305SH2C

€ 94.50

670

670B2021
ref: 670

O RING,21MM

€ 3.00

671

671B2565
ref: 671

O RING,65MM

€ 6.00

92046

92046037
ref: 92046

BEARING-NEEDLE,7E-HK1

€ 17.00

92046A

920461142
ref: 92046A

BEARING-NEEDLE,HK0709

€ 15.00

92049

920491037
ref: 92049

OIL SEAL,TC14244.8

€ 6.50

92049A

920491038
ref: 92049A

OIL SEAL,TC35527

€ 12.50

92055

920551306
ref: 92055

RING-O

€ 7.00

92062

92062011
ref: 92062

NOZZLE,OIL

€ 5.50

92066

920661227
ref: 92066

PLUG,OIL LINE,1/8X7

€ 4.00

92081

920811552
ref: 92081

SPRING

€ 25.50
