TAILLIGHT(S)

VN750A3 VN750 TWIN 1987 EUROPE FR UK AR IT NR ST

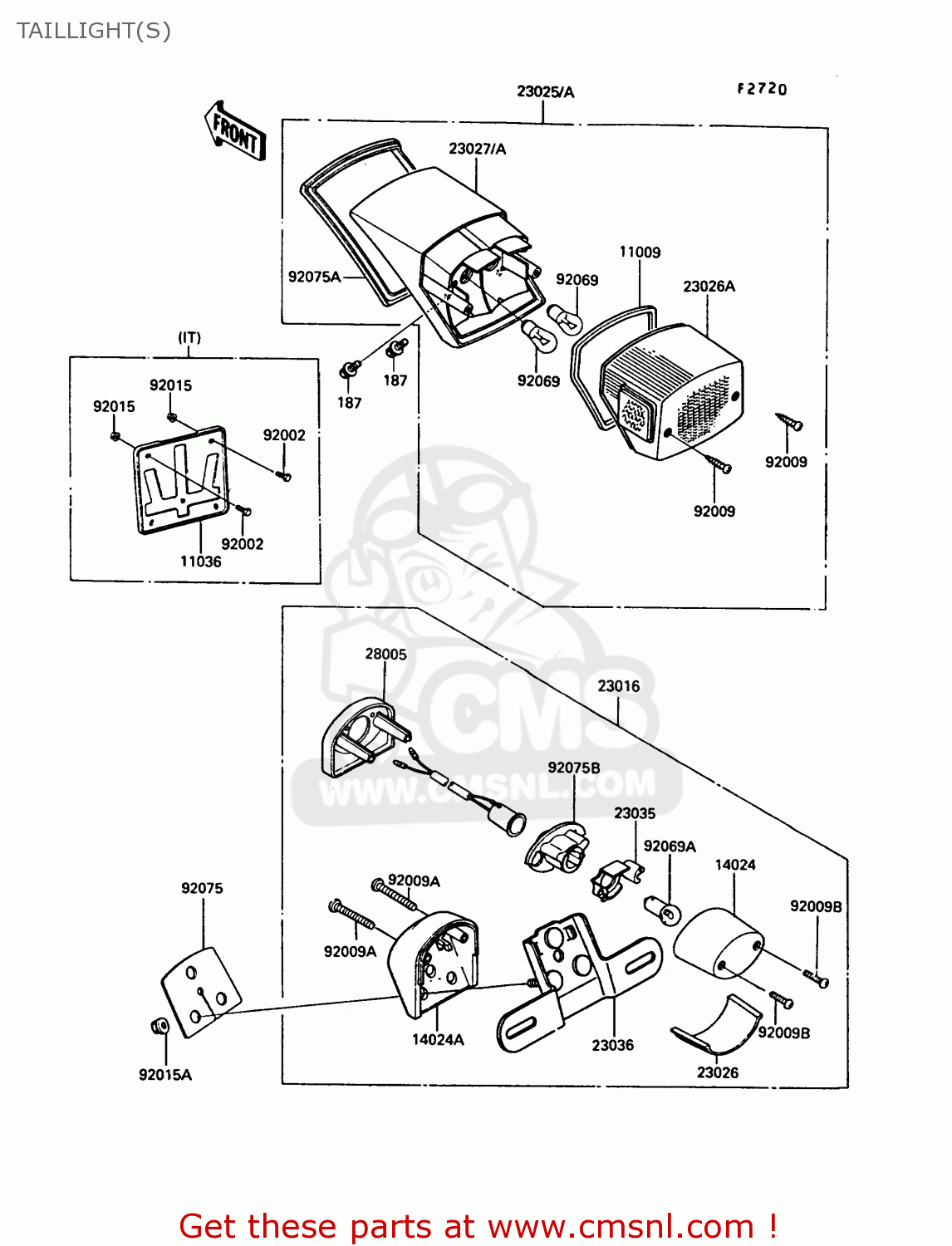

Taillight(s) diagram VN750A3 VN750 TWIN 1987 EUROPE FR UK AR IT NR ST

TAILLIGHT(S) VN750A3 VN750 TWIN 1987 EUROPE FR UK AR IT NR ST
TAILLIGHT(S) VN750A3 VN750 TWIN 1987 EUROPE FR UK AR IT NR ST
TAILLIGHT(S) VN750A3 VN750 TWIN 1987 EUROPE FR UK AR IT NR ST
prices are in EUR
ref
part #
description
quantity
187
187D0614
ref: 187
BOLT-UPSET-WSP
€ 0.50
11009
110091496
ref: 11009
GASKET,TAIL LAMP (NAS)
110091496
€ 11.50
11036
110361820
ref: 11036
IT
BRACKET-A,LICENSE PLA
110361820
€ 13.50
14024
140251725
ref: 14024
COVER,LICENSE LAMP
140251725
€ 12.50
14024A
140251728
ref: 14024A
COVER,LICENSE LAMP
140251728
€ 43.00
23016
230161069
ref: 23016
LAMP-ASSY,LICENSE
€ 113.50
23025
230251132
ref: 23025
LAMP-TAIL
230251132
€ 163.50
23026
230261064
ref: 23026
LENS,LICENSE LAMP
230261064
€ 24.00
23026A
230261074
ref: 23026A
LENS,TAIL LAMP
230261074
€ 33.00
23027
230271065
ref: 23027
BODY-COMP-TAIL LAMP
€ 116.50
23035
230351066
ref: 23035
REFLECTOR-LAMP,LICENS
230351066
€ 13.00
23036
230361109
ref: 23036
BRACKET-TAIL LAMP
€ 61.50
28005
280051051
ref: 28005
BODY-LAMP,LICENSE
280051051
€ 19.50
92002
920021132
ref: 92002
IT
BOLT,6X12
€ 2.50
92009
920091069
ref: 92009
SCREW,TAPPING,4X25
920091069
€ 2.50
92009A
920091263
ref: 92009A
SCREW,TAPPING,5X40
920091263
€ 2.50
92009B
920091378
ref: 92009B
SCREW,TAPPING,4X20
920091378
€ 2.50
92015
920151193
ref: 92015
IT
NUT,FLANGED,6MM
920151193
€ 0.50
92015A
920151367
ref: 92015A
NUT,FLANGED,6MM
920151367
€ 0.50
92069
92069063
ref: 92069
BULB 12V 21/5W
92069063
€ 4.50
92069A
920691055
ref: 92069A
BULB,12V 5W
920691055
€ 4.00
92075
920751676
ref: 92075
DAMPER,LICENSE LAMP
920751676
€ 5.50
92075A
920751692
ref: 92075A
DAMPER,TAIL LAMP
€ 17.50
92075B
920751694
ref: 92075B
DAMPER,LICENSE LAMP
920751694
€ 12.00
