Genuine VN Kawasaki Parts delivered quickly!


CARBURETOR PARTS

VN750A17 VULCAN 750 2001 USA CALIFORNIA

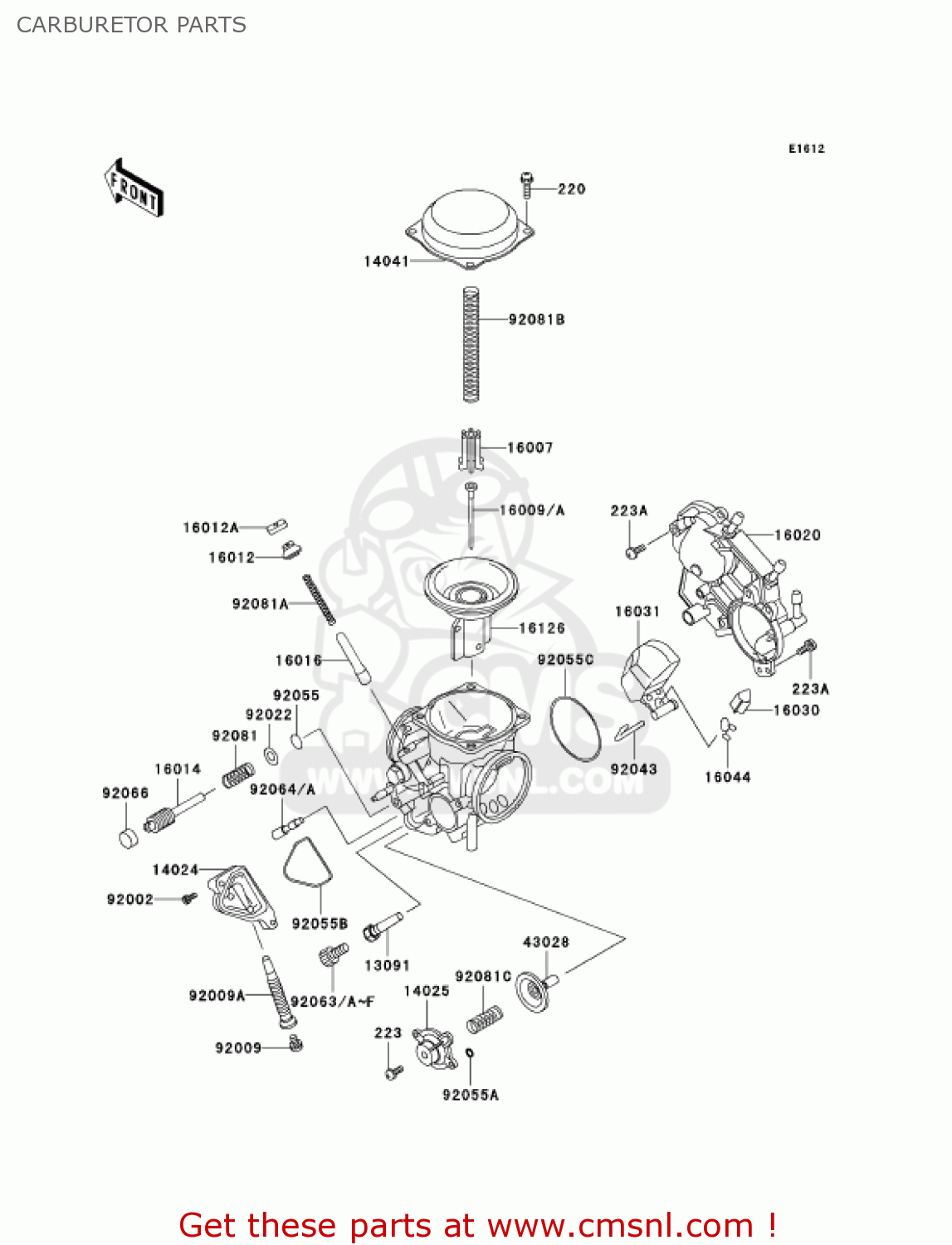

Carburetor parts diagram VN750A17 VULCAN 750 2001 USA CALIFORNIA

CARBURETOR PARTS VN750A17 VULCAN 750 2001 USA CALIFORNIA
CARBURETOR PARTS VN750A17 VULCAN 750 2001 USA CALIFORNIA
CARBURETOR PARTS VN750A17 VULCAN 750 2001 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
13091
130911384
ref: 13091
HOLDER,NEEDLE JET
130911384
€ 21.00
14024
140241094
ref: 14024
COVER,DRAIN
€ 98.50
14025
140251903
ref: 14025
COVER,AIR CUT VALVE
140251903
€ 43.00
14041
140411061
ref: 14041
COVER-COMP,MIXING CHA
€ 47.50
16007
160071117
ref: 16007
SEAT-SPRING,THROTTLE
160071117
€ 16.50
16009
160091327
ref: 16009
NEEDLE-JET,N53A,FR
€ 25.00
16009A
160091328
ref: 16009A
NEEDLE-JET,N53B,RR
€ 25.00
16012
160121051
ref: 16012
CAP-STARTER PLUNGER
160121051
€ 7.00
16012A
160121052
ref: 16012A
CAP-STARTER PLUNGER
160121052
€ 10.00
16014
160141054
ref: 16014
SCREW-PILOT AIR
160141054
€ 15.50
16016
160161066
ref: 16016
PLUNGER,STARTER
160161066
€ 30.50
16020
160201051
ref: 16020
CHAMBER-FLOAT,COMP
160201051
€ 235.50
16030
160301057
ref: 16030
VALVE-FLOAT
160301057
€ 37.00
16031
160311059
ref: 16031
FLOAT
160311059
€ 43.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
16044007
€ 4.00
16126
161261173
ref: 16126
VALVE,VACUUM
161261173
€ 159.50
43028
430281053
ref: 43028
DIAPHRAGM,5.9MM,AIR C
430281053
€ 62.50
92002
920021761
ref: 92002
BOLT
€ 3.50
92009
920091434
ref: 92009
SCREW
€ 10.00
92009A
920091551
ref: 92009A
SCREW,DRAIN
920091551
€ 6.50
92022
920221003
ref: 92022
WASHER,PLAIN
920221003
€ 2.50
92043
920431285
ref: 92043
PIN,FLOAT
920431285
€ 12.00
92055
920551002
ref: 92055
O RING,PILOT ADJUST
920551002
€ 2.50
92055A
920551245
ref: 92055A
RING-O
920551245
€ 3.50
92055B
920551290
ref: 92055B
RING-O
920551290
€ 12.00
92055C
920551291
ref: 92055C
RING-O
920551291
€ 14.50
92063
920631014
ref: 92063
(RACING USE ONLY)
MAIN JET,#135
920631014
€ 9.50
92063A
920631015
ref: 92063A
(RACING USE ONLY)
MAIN JET,#138
920631015
€ 9.50
92063B
920631069
ref: 92063B
(RACING USE ONLY)
MAIN JET,2ND #125
920631069
€ 9.50
92063C
920631073
ref: 92063C
(RACING USE ONLY)
MAIN JET,2ND #122
920631073
€ 9.50
92063D
920631074
ref: 92063D
(RACING USE ONLY)
MAIN JET,2ND #128
920631074
€ 9.50
92063E
920631075
ref: 92063E
(RACING USE ONLY)
MAIN JET,2ND #130
920631075
€ 9.50
92063F
920631076
ref: 92063F
JET-MAIN,#132
920631076
€ 9.50
92064
920641118
ref: 92064
JET-PILOT,#38
920641118
€ 12.50
92064A
920641123
ref: 92064A
(OPTION)
JET-PILOT,#35
€ 11.50
220
220D0408
ref: 220
SCREW-PAN-CROS
220D0408
€ 0.50
223
223D0410
ref: 223
SCREW-PAN-WS-CROS
223D0410
€ 2.50
223A
223D0512
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
92066
920661051
ref: 92066
PLUG,PILOT AIR SCREW,
920661051
€ 3.00
92081
920811002
ref: 92081
SPRING,PIROT ADJ SCRW
920811002
€ 3.50
92081A
920811761
ref: 92081A
SPRING,STARTER PLUNGE
920811761
€ 6.00
92081B
920811874
ref: 92081B
SPRING,VACUUM VALVE
920811874
€ 17.50
92081C
920811891
ref: 92081C
SPRING,AIR CUT VALVE
920811891
€ 8.50
