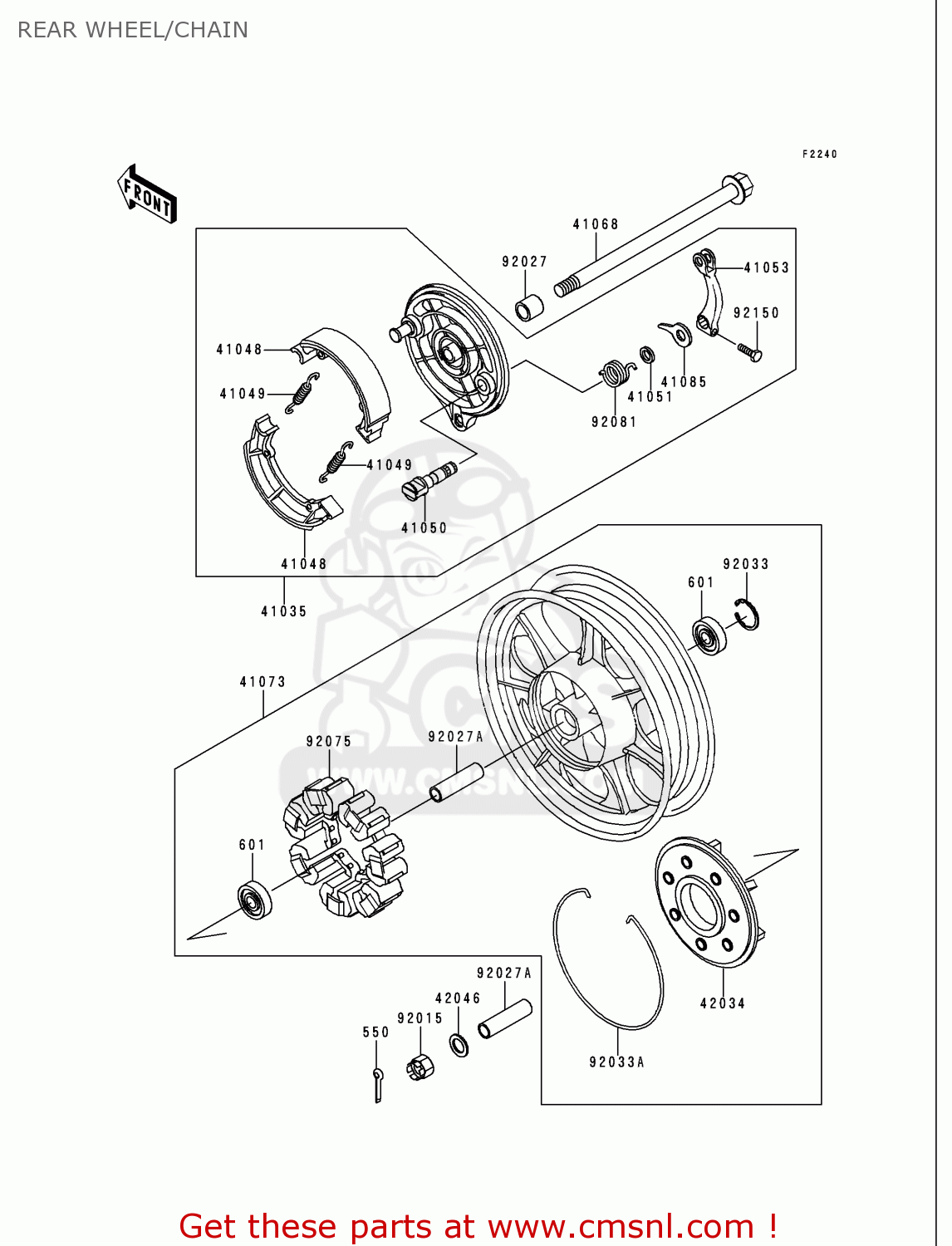

REAR WHEEL/CHAIN

ref

part #

description

quantity

550

550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6303UU
ref: 601

BEARING-BALL,6303LLUC

€ 30.50

41035

410351288
ref: 41035

PANEL-ASSY-BRAKE,RR

€ 432.00

41048

410481070
ref: 41048

SHOE-BRAKE (NAS)

€ 26.00

41049

41049012
ref: 41049

SPRING, BRKE SHOE

€ 6.00

41050

410501059
ref: 41050

CAM-BRAKE

€ 41.00

41051

41051003
ref: 41051

DUST SHIELD-BRAKE CAM

€ 2.50

41053

410531063
ref: 41053

LEVER-BRAKE CAM

€ 43.00

41068

410681191
ref: 41068

AXLE,RR

€ 55.50

41073

410731590CX
ref: 41073

WHEEL-ASSY,RR,SILVER

€ 819.00

41085

410851054
ref: 41085

INDICATOR

€ 9.00

42034

420341029
ref: 42034

COUPLING,RR HUB

€ 154.50

42046

42046009
ref: 42046

WASHER-SLEEVE

€ 5.00

92015

920151951
ref: 92015

NUT,CASTLE,16MM

€ 8.00

92027

920271486
ref: 92027

COLLAR

€ 12.00

92027A

920271867
ref: 92027A

COLLAR,17.2X25X74

€ 14.50

92033

920331042
ref: 92033

CIRCLIP,47M/M

€ 4.00

92033A

920331075
ref: 92033A

RING-SNAP,194MM

€ 10.50

92075

920751372
ref: 92075

DAMPER,RR HUB SHOCK

€ 66.00

92081

920811816
ref: 92081

SPRING,BRAKE CAM LEVE

€ 6.50

92150

921501797
ref: 92150

BOLT

€ 3.50
