FRAME FITTINGS

VN750A15 VULCAN 750 1999 USA CALIFORNIA

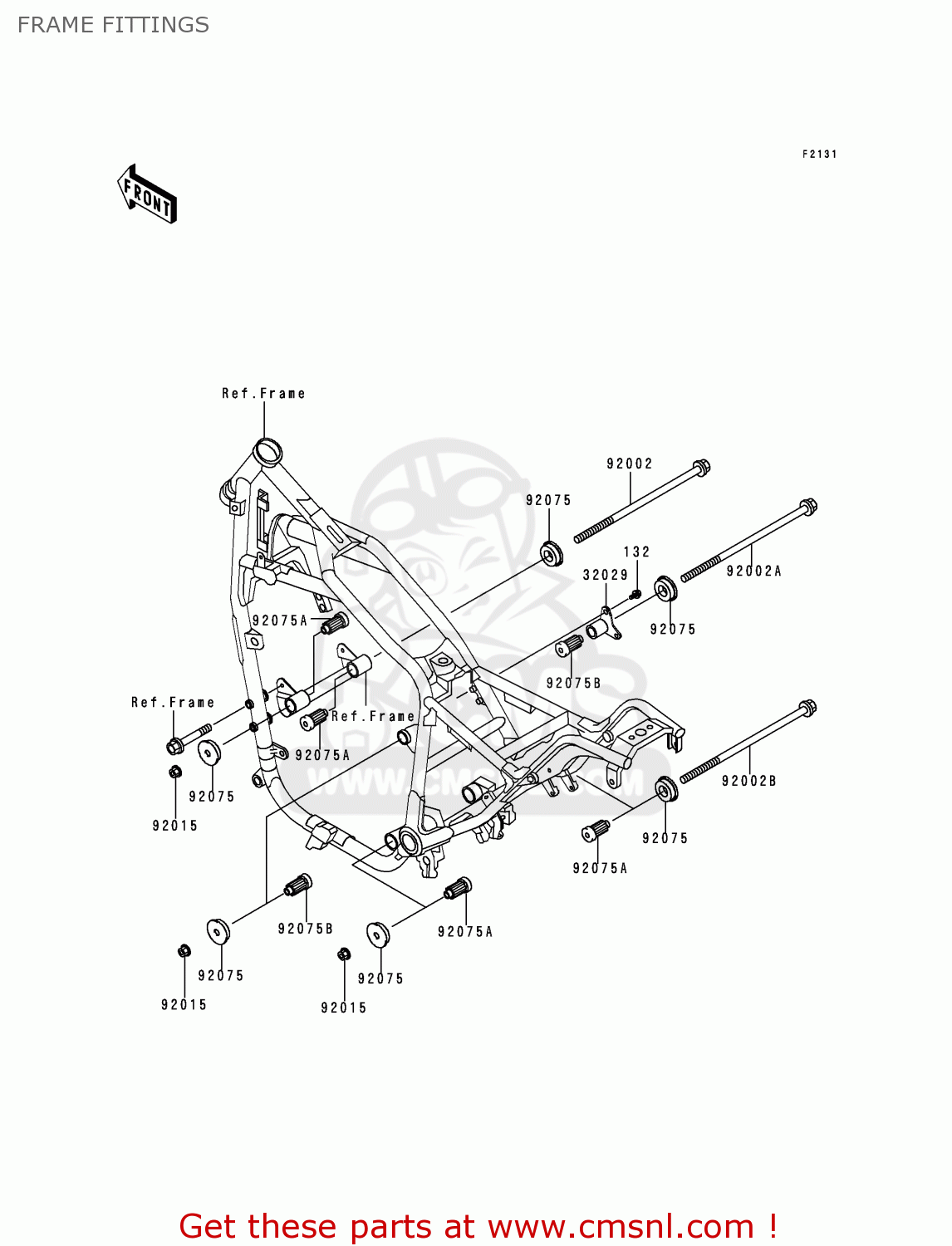

Frame fittings diagram VN750A15 VULCAN 750 1999 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

132

132J0820
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

32029

320291392
ref: 32029

BRACKET-ENGINE

€ 29.50

92002

920021206
ref: 92002

BOLT,10X285

€ 16.50

92002A

920021454
ref: 92002A

BOLT,FLANGED,10X265

€ 16.00

92002B

920021540
ref: 92002B

BOLT,FLANGED,10X330

€ 16.00

92015

920151180
ref: 92015

NUT,FLANGED,10MM,BLAC

€ 2.50

92075

920751738
ref: 92075

DAMPER,ENGINE BRACKET

€ 16.00

92075A

920751739
ref: 92075A

DAMPER,ENGINE MOUNT,M

€ 32.50

92075B

920751740
ref: 92075B

DAMPER,ENGINE MOUNT

€ 28.50

all assemblies
