CHASSIS ELECTRICAL EQUIPMENT

VN750A14 VULCAN 750 1998 USA CALIFORNIA

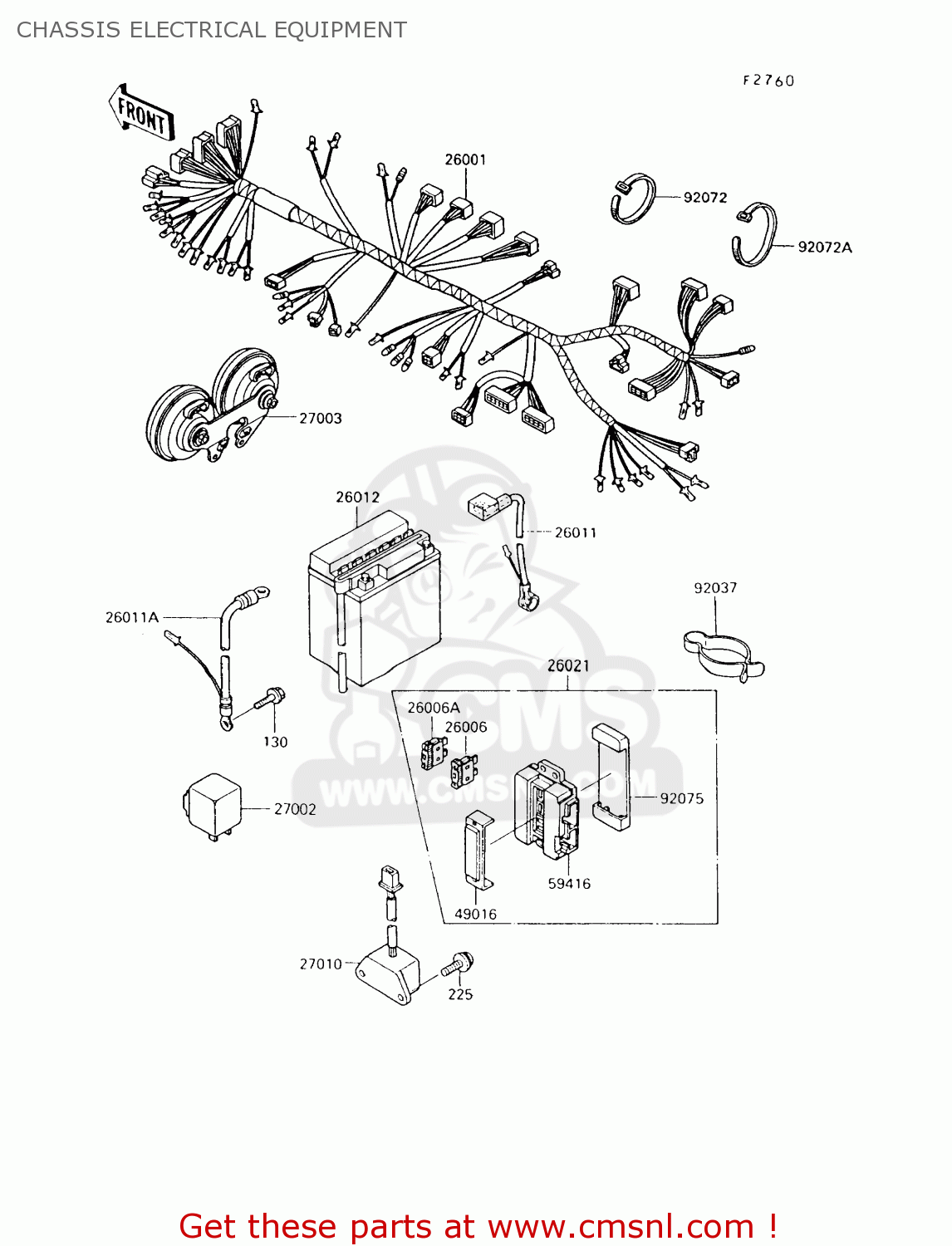

Chassis electrical equipment diagram VN750A14 VULCAN 750 1998 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

130

130V0610
ref: 130

BOLT-FLANGED,6X10

€ 0.50

225

225B0620
ref: 225

SCREW-PAN-WSP-CROS

€ 2.50

26001

260011961
ref: 26001

HARNESS,MAIN

€ 291.50

26006

260061067
ref: 26006

FUSE, 30A-G

€ 3.00

26006A

260061068
ref: 26006A

FUSE, 10A-R

€ 3.00

26011

260111310
ref: 26011

WIRE-LEAD,BATTERY(+)

€ 22.00

26011A

260111549
ref: 26011A

WIRE-LEAD,BATTERY(-)

€ 19.50

26012

260121238
ref: 26012

BATTERY, 12V 14AH

€ 101.50

26021

260211073
ref: 26021

JUNCTION BOX

€ 173.50

27002

270021060
ref: 27002

RELAY-ASSY,TURN SIGNA

€ 65.50

27003

270031218
ref: 27003

HORN,DOUBLE

€ 172.00

27010

270101069
ref: 27010

SWITCH,RESERVE LIGTIN

€ 149.00

49016

490161106
ref: 49016

COVER-SEAL,FUSE

€ 8.00

59416

594161052
ref: 59416

CASE-ELECTRIC,FUSE &

€ 158.00

92037

92037093
ref: 92037

CLAMP

€ 7.50

92072

92072031
ref: 92072

BAND,MIDDLE

€ 3.00

92072A

92072056
ref: 92072A

BAND,RUBBER

€ 3.00

92075

920751688
ref: 92075

DAMPER,FUSE & RELAY B

€ 9.50
