MUFFLER(S)
VN750A11 VULCAN 750 1995 USA CALIFORNIA

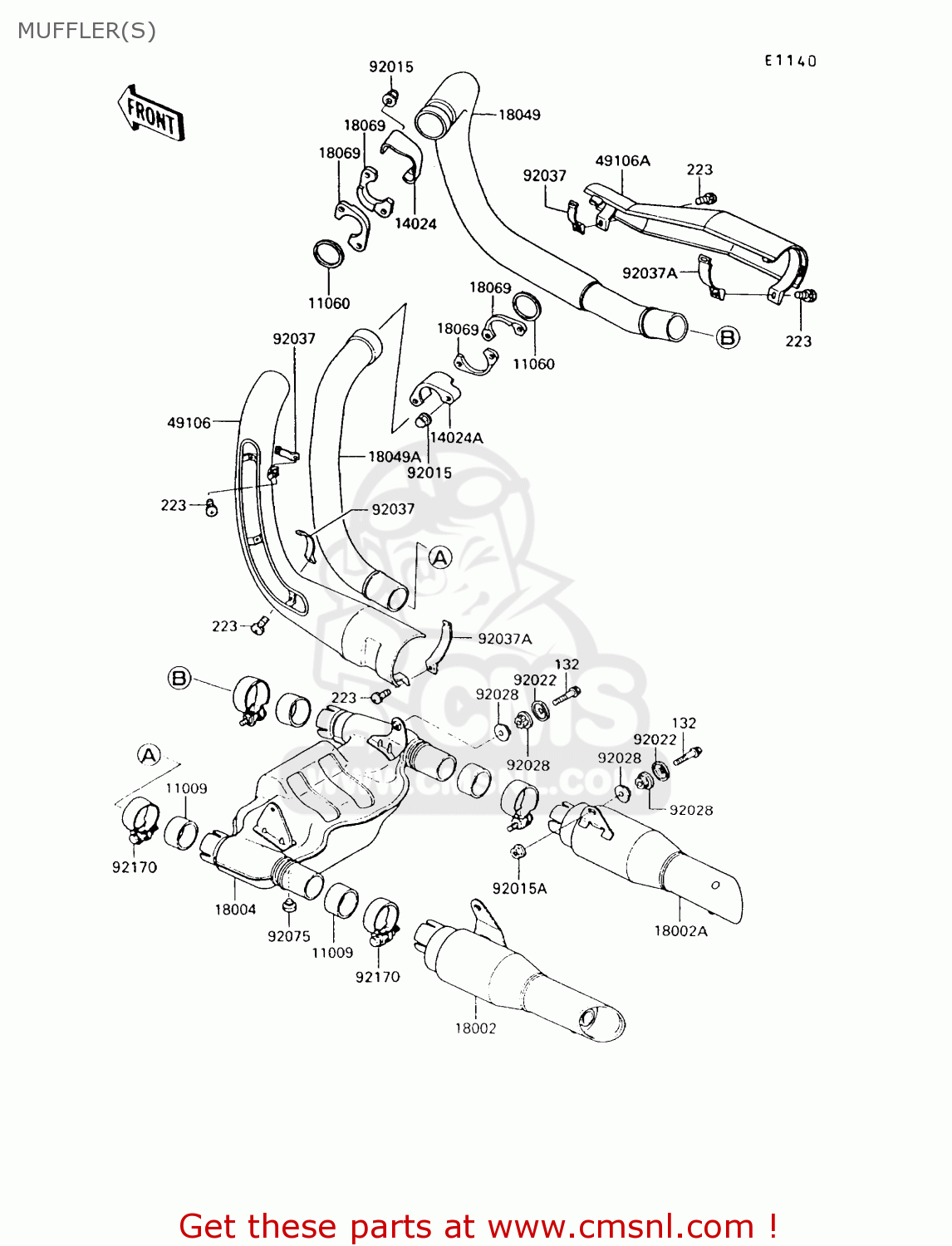

Muffler(s) diagram VN750A11 VULCAN 750 1995 USA CALIFORNIA
MUFFLER(S) VN750A11 VULCAN 750 1995 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
132
132E0840
ref: 132
BOLT-FLANGED-SMALL
€ 4.00
223
223X0620
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
11009
110091666
ref: 11009
GASKET,EXHAUST PIPE C (NAS)
€ 20.50
11060
110601119
ref: 11060
GASKET,EXHAUST PIPE (NAS)
€ 9.00
14024
140241091
ref: 14024
COVER,FR
€ 16.50
14024A
140241092
ref: 14024A
COVER,RR
€ 15.50
18002
180021701
ref: 18002
BODY-COMP-MUFFLER,LH
€ 388.50
18002A
180021702
ref: 18002A
BODY-COMP-MUFFLER,RH
€ 388.50
18004
180041055
ref: 18004
CHAMBER-PREMUFFLER
€ 487.50
18049
180491373
ref: 18049
PIPE-EXHAUST,FR
€ 172.50
18049A
180491374
ref: 18049A
PIPE-EXHAUST,RR
€ 141.50
18069
180691061
ref: 18069
HOLDER-EXHAUST PIPE
€ 26.00
49106
491061053
ref: 49106
COVER-MUFFLER,LH
€ 140.00
49106A
491061054
ref: 49106A
COVER-MUFFLER,RH
€ 121.00
92015
920151371
ref: 92015
NUT,CAP,8MM
€ 3.00
92015A
920151933
ref: 92015A
NUT,FLANGED,8MM
€ 2.50
92022
920221638
ref: 92022
WASHER,CAP TYPE
€ 6.50
92028
920281746
ref: 92028
BUSHING,MUFFLER
€ 13.00
92037
920371613
ref: 92037
CLAMP,EXHAUST PIPE CO
€ 9.50
92037A
920371615
ref: 92037A
CLAMP,MUFFLER COVER
€ 10.50
92075
92075005
ref: 92075
DAMPER
€ 2.50
92170
921701446
ref: 92170
CLAMP,52MM
€ 16.50
