BRAKE PEDAL

VN750A10 VN750 TWIN 1994 UNITED KINGDOM FR NL AR FG IT SP ST

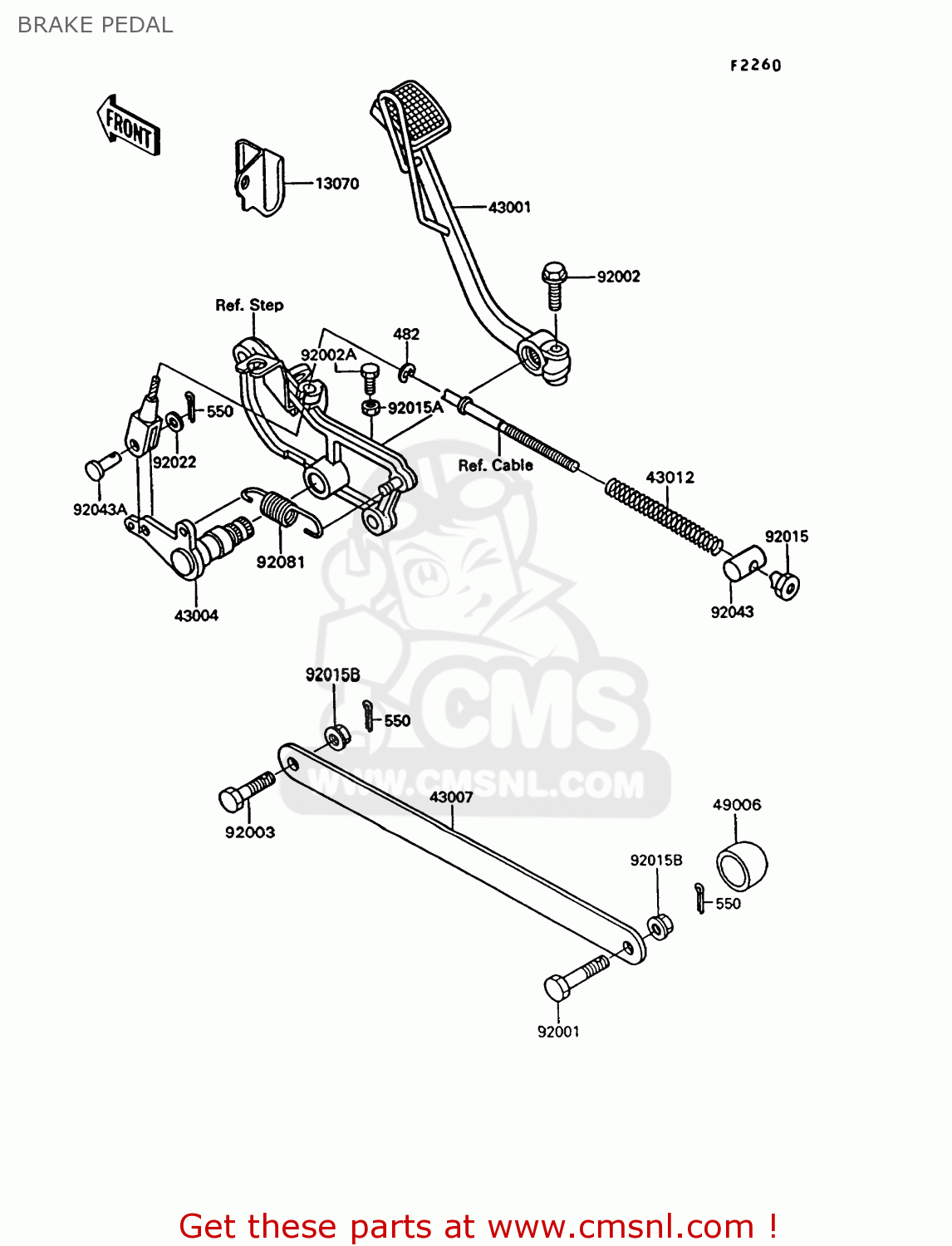

Brake pedal diagram VN750A10 VN750 TWIN 1994 UNITED KINGDOM FR NL AR FG IT SP ST

prices are in EUR

ref

part #

description

quantity

482

482K6000
ref: 482

CIRCLIP-TYPE-E,6MM

€ 2.00

550

550D2015
ref: 550

PIN-COTTER,2.0X15

€ 1.00

13070

130701134
ref: 13070

GUIDE,CABLE

€ 8.00

43001

430011178
ref: 43001

LEVER-BRAKE,PEDAL

€ 88.50

43004

430041109
ref: 43004

SHAFT-BRAKE

€ 43.00

43007

430071112
ref: 43007

ROD-TORQUE

€ 20.50

43012

43012001
ref: 43012

SPRING,BRAKE ROD

€ 3.00

49006

490061218
ref: 49006

BOOT

€ 3.50

92001

920011519
ref: 92001

BOLT,10X37

€ 4.50

92002

920021201
ref: 92002

BOLT,FLANGED,8X25

€ 3.00

92002A

920021373
ref: 92002A

BOLT,6X20

€ 2.50

92003

92003096
ref: 92003

BOLT-TRQ LINK 10X29

€ 7.00

92015

92015042
ref: 92015

NUT-BRAKE ROD ADJUST

€ 4.00

92015A

920151391
ref: 92015A

NUT,6MM

€ 2.00

92015B

920151428
ref: 92015B

NUT,FLANGED,10MM

€ 3.00

92022

920221582
ref: 92022

WASHER,8.5X16X1.2

€ 0.50

92043

92043065
ref: 92043

PIN-BRAKE ROD

€ 3.50

92043A

920431013
ref: 92043A

PIN

€ 6.50

92081

920811845
ref: 92081

SPRING,BRAKE PEDAL

€ 6.50
