Genuine VN Kawasaki Parts delivered quickly!


REAR WHEEL/CHAIN

VN2000E6F VULCAN 2000 CLASSIC 2006 USA CALIFORNIA CANADA

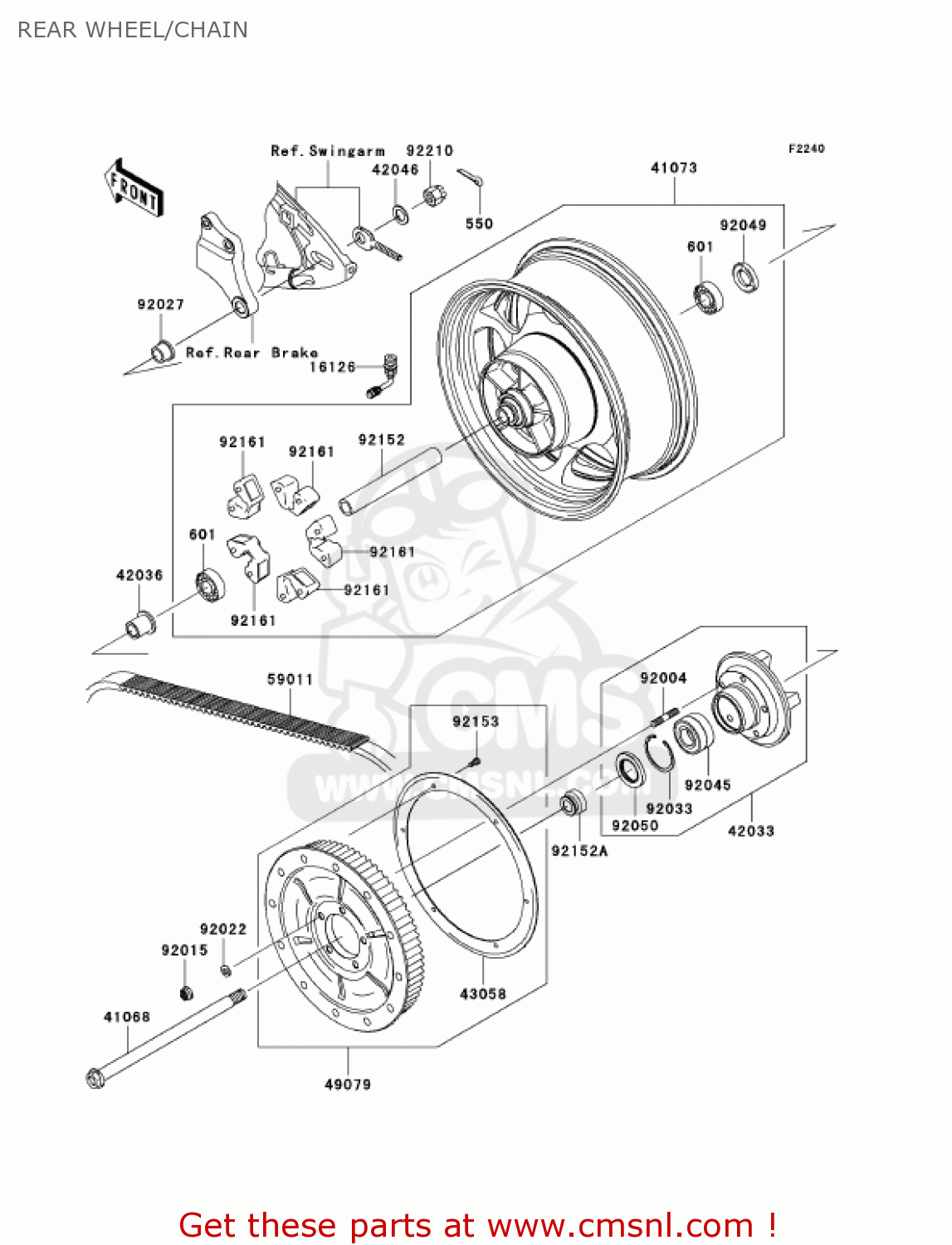

Rear wheel/chain diagram VN2000E6F VULCAN 2000 CLASSIC 2006 USA CALIFORNIA CANADA

REAR WHEEL/CHAIN VN2000E6F VULCAN 2000 CLASSIC 2006 USA CALIFORNIA CANADA
REAR WHEEL/CHAIN VN2000E6F VULCAN 2000 CLASSIC 2006 USA CALIFORNIA CANADA
REAR WHEEL/CHAIN VN2000E6F VULCAN 2000 CLASSIC 2006 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
550
550D4035
ref: 550
PIN-COTTER,4.0X35
550D4035
€ 1.00
601
601B6304UU
ref: 601
BEARING-BALL,#6304UUC
601B6304UU
€ 34.50
16126
161261365
ref: 16126
VALVE
161261365
€ 17.50
41068
410680007
ref: 41068
AXLE,RR
€ 95.50
41073
410730061
ref: 41073
WHEEL-ASSY,RR
€ 1,064.00
42033
420330020
ref: 42033
COUPLING-ASSY,RR HUB
€ 209.00
42036
420360027
ref: 42036
SLEEVE,RR HUB COUPLIN
420360027
€ 32.50
42046
42046003
ref: 42046
WASHER,21X33X2.6
42046003
€ 2.50
43058
430580004
ref: 43058
RING,REAR PULLEY
€ 55.00
49079
490790004458
ref: 49079
PULLEY-BELT,P.SILVER
€ 526.00
59011
590110004
ref: 59011
BELT,DRIVE,133T
590110004
€ 564.50
92004
920040016
ref: 92004
STUD,10X35
920040016
€ 5.50
92015
920151335
ref: 92015
NUT,FLANGED,10MM
920151335
€ 1.50
92022
920221820
ref: 92022
WASHER,10.5X19X3.2
€ 2.50
92027
920271902
ref: 92027
COLLAR,RR AXLE,L=21.5
920271902
€ 17.00
92033
920331044
ref: 92033
CIRCLIP 62 M/M
920331044
€ 7.50
92045
920450045
ref: 92045
BEARING-BALL,6206LUD2
920450045
€ 75.00
92049
920491061
ref: 92049
SEAL-OIL,28X52X5
920491061
€ 13.00
92050
92050027
ref: 92050
OIL SEAL
92050027
€ 13.50
92152
921520051
ref: 92152
COLLAR,RR HUB,L=210
€ 14.50
92152A
921520321
ref: 92152A
COLLAR,RR AXLE,LH,L=2
€ 18.00
92153
921530827
ref: 92153
BOLT,SOCKET,6X12
€ 2.50
92161
921610043
ref: 92161
DAMPER,SHOCK,RR HUB
€ 21.50
92210
922101134
ref: 92210
NUT
922101134
€ 4.50
