Genuine VN Kawasaki Parts delivered quickly!


REAR WHEEL/CHAIN

VN2000D1 VULCAN 2000 LIMITED 2005 USA CALIFORNIA CANADA

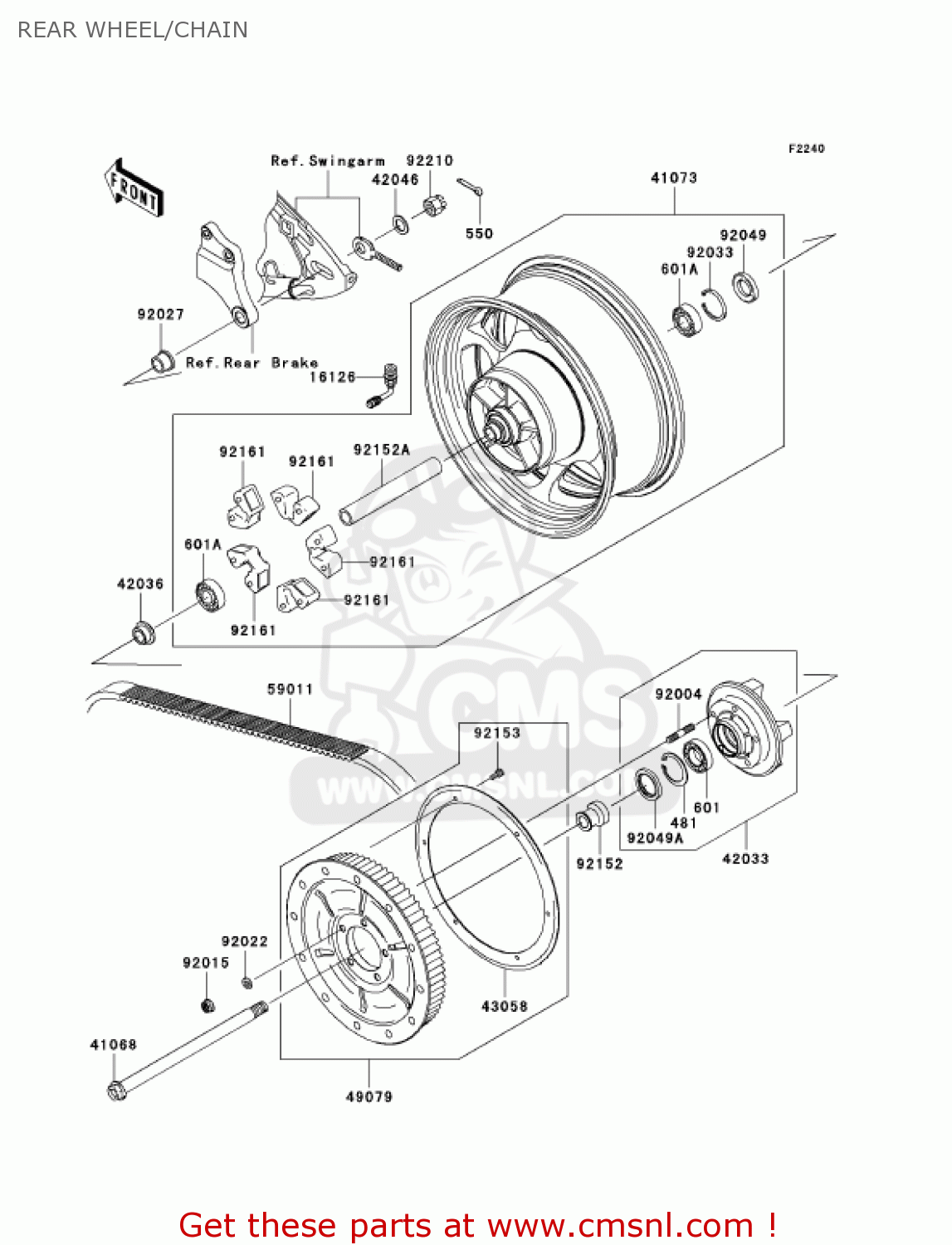

Rear wheel/chain diagram VN2000D1 VULCAN 2000 LIMITED 2005 USA CALIFORNIA CANADA

REAR WHEEL/CHAIN VN2000D1 VULCAN 2000 LIMITED 2005 USA CALIFORNIA CANADA
REAR WHEEL/CHAIN VN2000D1 VULCAN 2000 LIMITED 2005 USA CALIFORNIA CANADA
REAR WHEEL/CHAIN VN2000D1 VULCAN 2000 LIMITED 2005 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
481
481J5500
ref: 481
CIRCLIP
€ 6.50
550
550D4035
ref: 550
PIN-COTTER,4.0X35
550D4035
€ 1.00
601
601B6006UU
ref: 601
BEARING-BALL
601B6006UU
€ 28.00
601A
601B6304UU
ref: 601A
BEARING-BALL,#6304UUC
601B6304UU
€ 34.50
16126
161261365
ref: 16126
VALVE
161261365
€ 17.50
41068
410680007
ref: 41068
AXLE,RR
€ 95.50
41073
410730047
ref: 41073
WHEEL-ASSY,RR
€ 1,474.50
42033
420330017
ref: 42033
COUPLING-ASSY,RR HUB
420330017
€ 234.50
42036
420361366
ref: 42036
SLEEVE,RR HUB COUPLIN
420361366
€ 16.50
42046
42046003
ref: 42046
WASHER,21X33X2.6
42046003
€ 2.50
43058
430580004
ref: 43058
RING,REAR PULLEY
€ 55.00
49079
490790009
ref: 49079
PULLEY-BELT
€ 691.00
59011
590110004
ref: 59011
BELT,DRIVE,133T
590110004
€ 564.50
92004
920040016
ref: 92004
STUD,10X35
920040016
€ 5.50
92015
920151335
ref: 92015
NUT,FLANGED,10MM
920151335
€ 1.50
92022
920221820
ref: 92022
WASHER,10.5X19X3.2
€ 2.50
92027
920271902
ref: 92027
COLLAR,RR AXLE,L=21.5
920271902
€ 17.00
92033
920331043
ref: 92033
RING,SNAP,56.2M/M
920331043
€ 6.00
92049
920491061
ref: 92049
SEAL-OIL,28X52X5
920491061
€ 13.00
92049A
920491263
ref: 92049A
SEAL-OIL,PJN40556
920491263
€ 12.50
92152
921520050
ref: 92152
COLLAR,RR AXLE,LH,L=4
€ 24.00
92152A
921520051
ref: 92152A
COLLAR,RR HUB,L=210
€ 14.50
92153
921530827
ref: 92153
BOLT,SOCKET,6X12
€ 2.50
92161
921610043
ref: 92161
DAMPER,SHOCK,RR HUB
€ 21.50
92210
922101134
ref: 92210
NUT
922101134
€ 4.50
