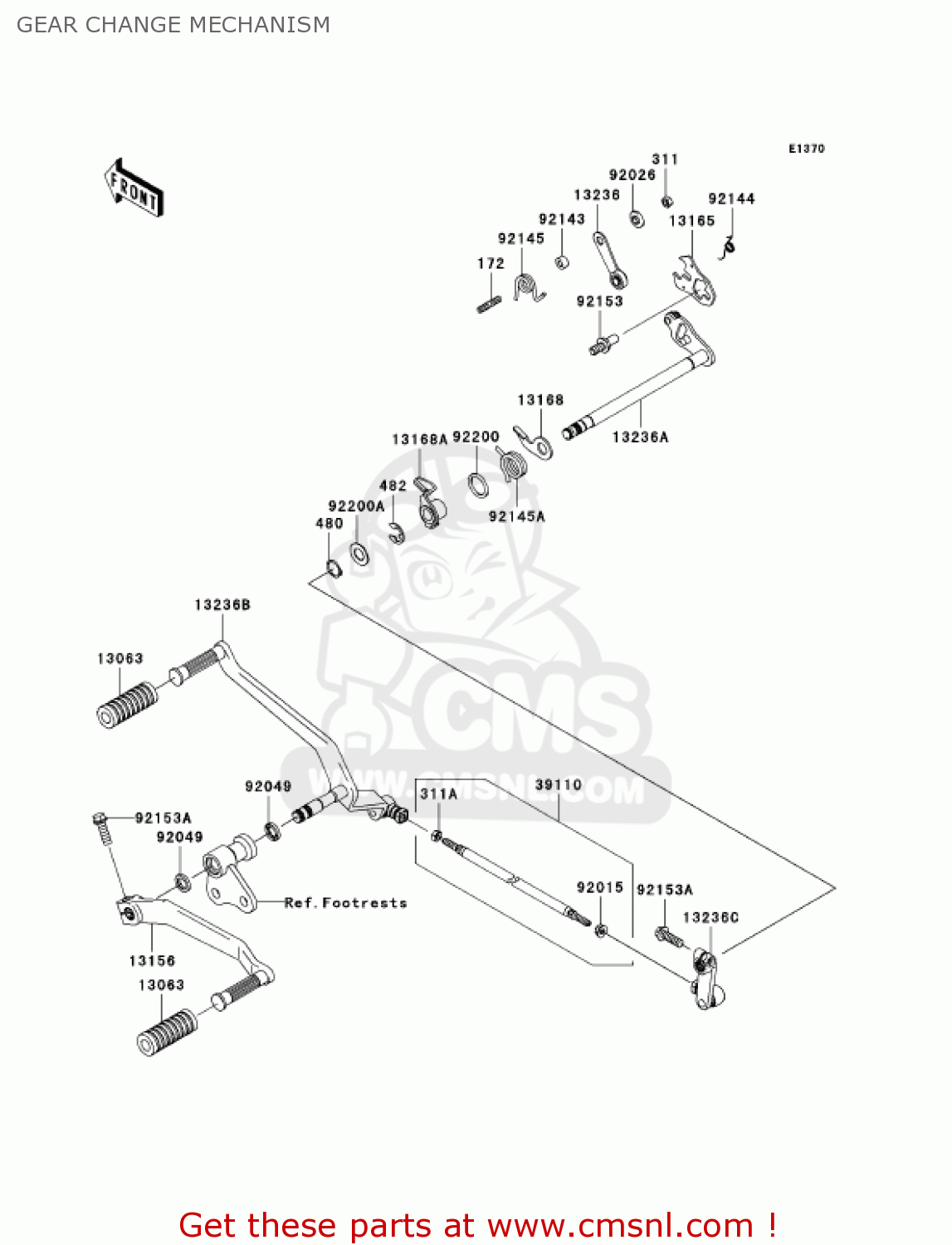

GEAR CHANGE MECHANISM

ref

part #

description

quantity

172

172H0618
ref: 172

BOLT-STUD

€ 1.50

311

311G0600
ref: 311

NUT,6M/M

€ 0.50

311A

311L0600
ref: 311A

NUT-HEX

€ 1.00

480

480J1200
ref: 480

CIRCLIP-TYPE-C,12MM

€ 0.50

482

482J0200
ref: 482

CIRCLIP-TYPE-E,12MM

€ 2.50

13063

13063002
ref: 13063

RUBBER-KICK PEDAL

€ 3.00

13156

131560007
ref: 13156

LEVER-CHANGE

€ 99.00

13165

131650001
ref: 13165

PAWL

€ 12.00

13168

131680009
ref: 13168

LEVER,RH

€ 3.00

13168A

131680010
ref: 13168A

LEVER,LH

€ 9.50

13236

132360059
ref: 13236

LEVER-COMP,POSITION

€ 10.50

13236A

132360060
ref: 13236A

LEVER-COMP

€ 41.50

13236B

132360071
ref: 13236B

LEVER-COMP

€ 84.00

13236C

132360072
ref: 13236C

LEVER-COMP

€ 39.00

39110

391100018
ref: 39110

ROD-ASSY-TIE

€ 58.50

92015

920151572
ref: 92015

NUT,6MM

€ 2.50

92026

920261217
ref: 92026

SPACER

€ 3.50

92049

920491398
ref: 92049

SEAL-OIL,VB13193

€ 4.00

92143

921431595
ref: 92143

COLLAR

€ 6.50

92144

921441029
ref: 92144

SPRING

€ 5.00

92145

921450197
ref: 92145

SPRING

€ 5.00

92145A

921450205
ref: 92145A

SPRING

€ 5.00

92153

921530421
ref: 92153

BOLT,RETURN SPRING

€ 6.50

92153A

921531268
ref: 92153A

BOLT,8X25

€ 2.00

92200

922000018
ref: 92200

WASHER,20.5X27X1.6

€ 2.00

92200A

922000045
ref: 92200A

WASHER,13.4X25X1.0

€ 2.50
