FRONT FORK

VN1600G6F VULCAN 1600 NOMAD 2006 USA CALIFORNIA CANADA

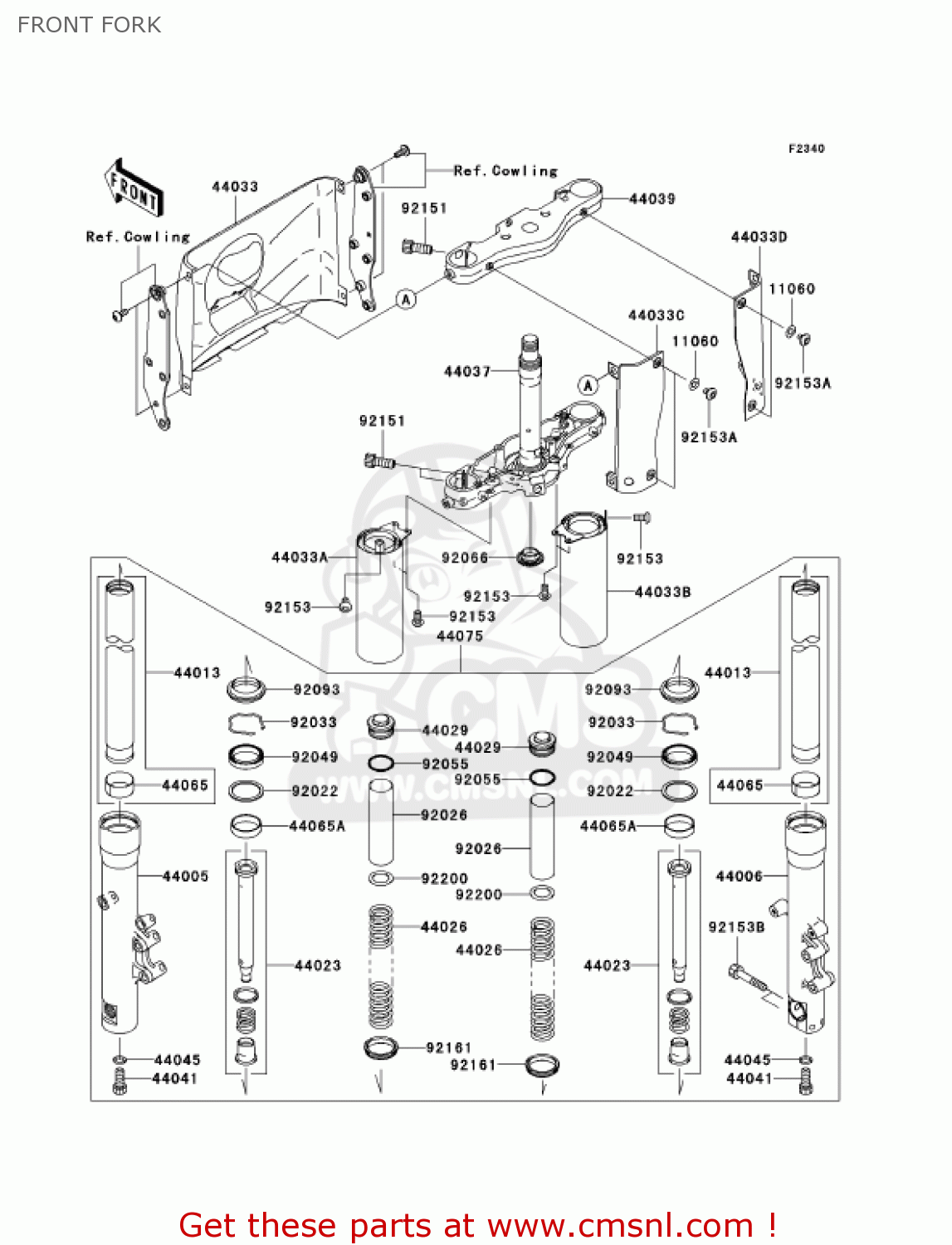

Front fork diagram VN1600G6F VULCAN 1600 NOMAD 2006 USA CALIFORNIA CANADA

FRONT FORK VN1600G6F VULCAN 1600 NOMAD 2006 USA CALIFORNIA CANADA
FRONT FORK VN1600G6F VULCAN 1600 NOMAD 2006 USA CALIFORNIA CANADA
FRONT FORK VN1600G6F VULCAN 1600 NOMAD 2006 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11060
110601994
ref: 11060
GASKET,6.2X12X0.3 (NAS)
110601994
€ 1.50
44005
440051436
ref: 44005
PIPE-LEFT FORK OUTER
€ 340.50
44006
440060006
ref: 44006
PIPE-RIGHT FORK OUTER
€ 425.50
44013
440130024
ref: 44013
PIPE-FORK INNER
440130024
€ 289.00
44023
440230004
ref: 44023
CYLINDER-SET-FORK
440230004
€ 119.00
44026
440260050
ref: 44026
SPRING-FRONT FORK
€ 76.00
44029
440291154
ref: 44029
SEAT-FORK SPRING
440291154
€ 35.50
44033
440330013
ref: 44033
COVER-FORK,CNT
€ 87.00
44033A
440330027
ref: 44033A
COVER-FORK,INNER,LH
€ 86.00
44033B
440330028
ref: 44033B
COVER-FORK,INNER,RH
€ 95.00
44033C
440330029
ref: 44033C
COVER-FORK,RR,LH
€ 72.00
44033D
440330031
ref: 44033D
COVER-FORK,RR,RH
€ 72.00
44037
440370021
ref: 44037
HOLDER-FORK UNDER
€ 323.50
44039
440390019
ref: 44039
HOLDER-FORK UPPER
€ 297.50
44041
44041040
ref: 44041
BOLT-FORK CYLINDER
44041040
€ 4.50
44045
44045057
ref: 44045
GASKET (NAS)
44045057
€ 3.00
44065
440650003
ref: 44065
BUSHING-FRONT FORK
440650003
€ 18.50
44065A
440651143
ref: 44065A
BUSHING-FRONT FORK
440651143
€ 13.50
44075
440750054
ref: 44075
DAMPER-SET-FORK
€ 1,963.50
92022
920221299
ref: 92022
WASHER
920221299
€ 5.50
92026
920260062
ref: 92026
SPACER,FORK,L=141.5
€ 20.00
92033
920331077
ref: 92033
RING-SNAP
920331077
€ 3.00
92049
920490007
ref: 92049
SEAL-OIL
920490007
€ 17.50
92055
920551123
ref: 92055
RING-O
920551123
€ 4.00
92066
920660032
ref: 92066
PLUG
920660032
€ 8.50
92093
920931480
ref: 92093
SEAL,FORK OUTER TUBE
920931480
€ 13.00
92151
921511358
ref: 92151
BOLT,SOCKET,10X25
€ 2.50
92153
921530300
ref: 92153
BOLT
921530300
€ 2.00
92153A
921530411
ref: 92153A
BOLT,SOCKET,6X10
921530411
€ 2.00
92153B
921530425
ref: 92153B
BOLT
€ 6.00
92161
921611343
ref: 92161
DAMPER
€ 2.50
92200
922001253
ref: 92200
WASHER
922001253
€ 4.50
