SUSPENSION/SHOCK ABSORBER

VN1600D7FA VULCAN 1600 NOMAD 2007 USA CALIFORNIA CANADA

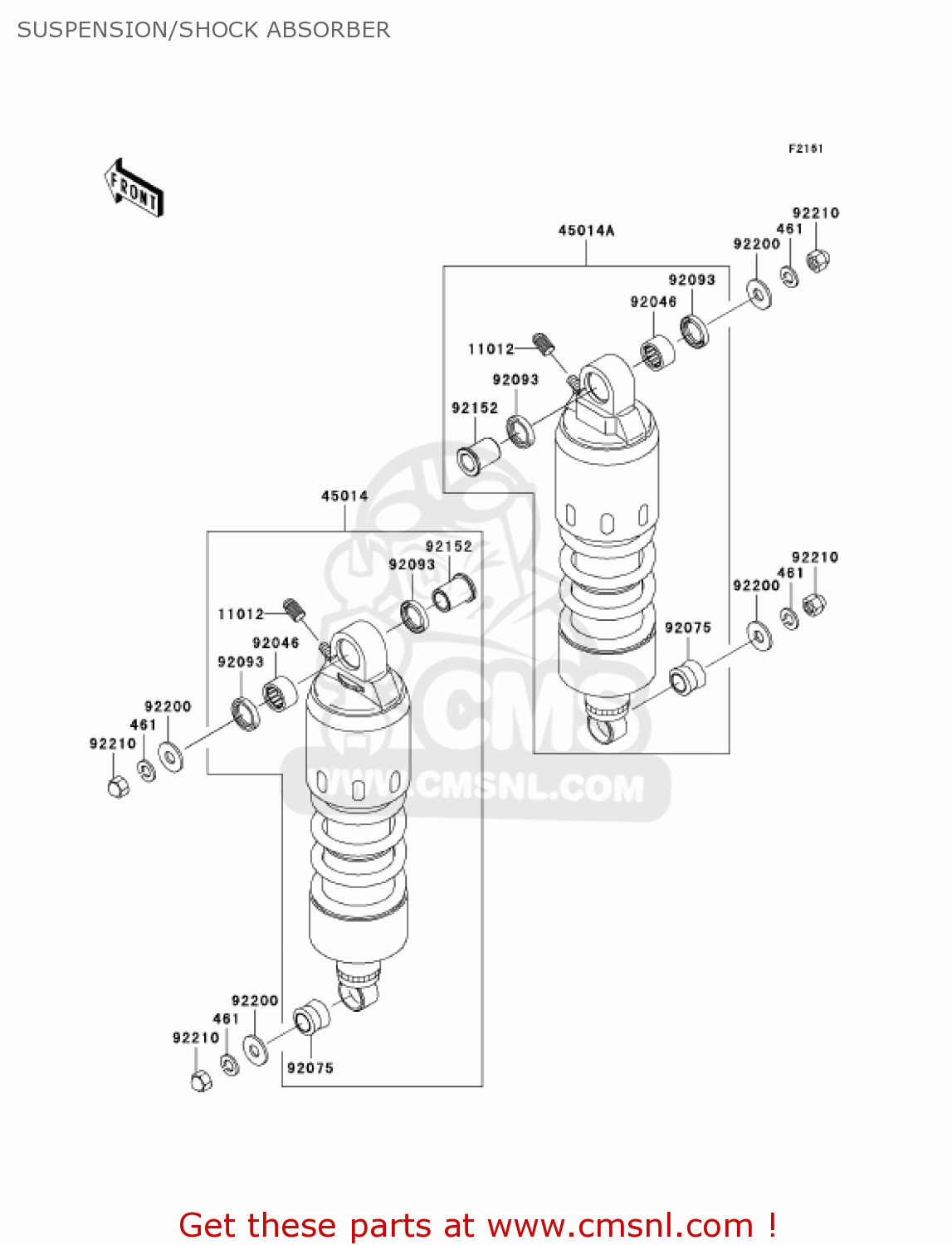

Suspension/shock absorber diagram VN1600D7FA VULCAN 1600 NOMAD 2007 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

461

461S1000
ref: 461

WASHER-SPRING,10MM

€ 0.50

11012

110121283
ref: 11012

CAP

€ 5.50

45014

450140108
ref: 45014

SHOCKABSORBER,LH

€ 616.50

45014A

450140109
ref: 45014A

SHOCKABSORBER,RH

€ 582.50

92046

920461296
ref: 92046

BEARING-NEEDLE

€ 9.50

92075

920751387
ref: 92075

920751387

92093

920931552
ref: 92093

SEAL

€ 7.00

92152

921521336
ref: 92152

COLLAR

€ 5.00

92200

922001565
ref: 92200

WASHER,10.5X26X2.5

€ 1.50

92210

922101288
ref: 92210

NUT,CAP,10MM

€ 3.50
