GENERATOR

VN1600D1 VULCAN 1600 NOMAD 2005 USA CALIFORNIA CANADA

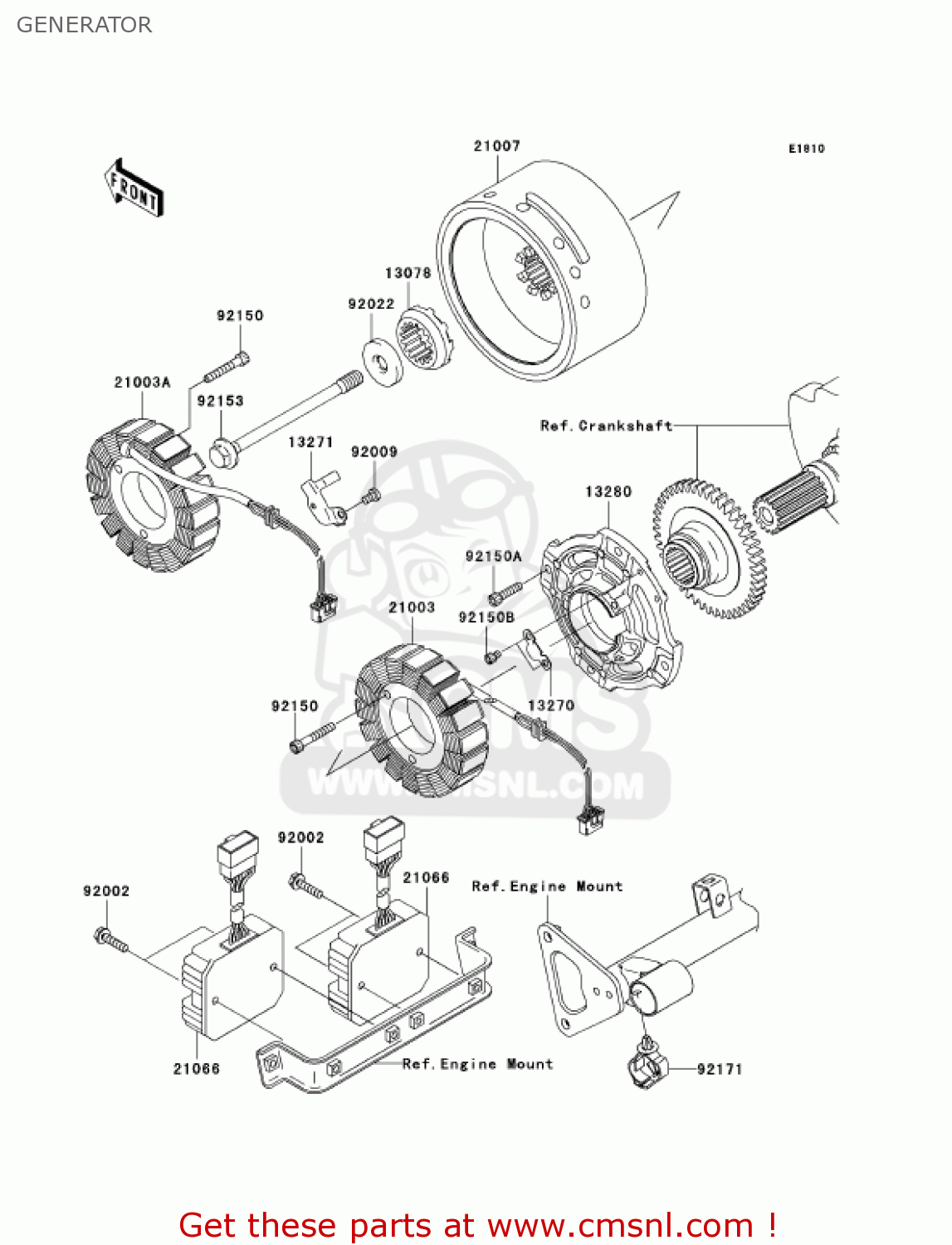

Generator diagram VN1600D1 VULCAN 1600 NOMAD 2005 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

13078

130781066
ref: 13078

RATCHET

€ 44.00

13270

132701925
ref: 13270

PLATE

€ 1.50

13271

132711325
ref: 13271

PLATE

€ 2.00

13280

132801069
ref: 13280

HOLDER

€ 64.50

21003

210030007
ref: 21003

STATOR,INNER

€ 609.00

21003A

210030008
ref: 21003A

STATOR,OUTER

€ 572.00

21007

210071369
ref: 21007

ROTOR

€ 932.50

21066

210661106
ref: 21066

REGULATOR-VOLTAGE

€ 173.50

92002

920021086
ref: 92002

BOLT,6X25

€ 3.50

92009

920091768
ref: 92009

SCREW

€ 1.50

92022

920221904
ref: 92022

WASHER,GENERATOR

€ 9.50

92150

921501484
ref: 92150

BOLT,SOCKET,6X35

€ 4.00

92150A

921501654
ref: 92150A

BOLT

€ 3.00

92150B

921501955
ref: 92150B

BOLT

€ 2.50

92153

921531105
ref: 92153

BOLT,12X154

€ 21.00

92171

921710068
ref: 92171

CLAMP,CLIP,DIA=20

€ 2.00
