THROTTLE

VN1500T6F VULCAN 1500 CLASSIC 2006 USA CALIFORNIA CANADA

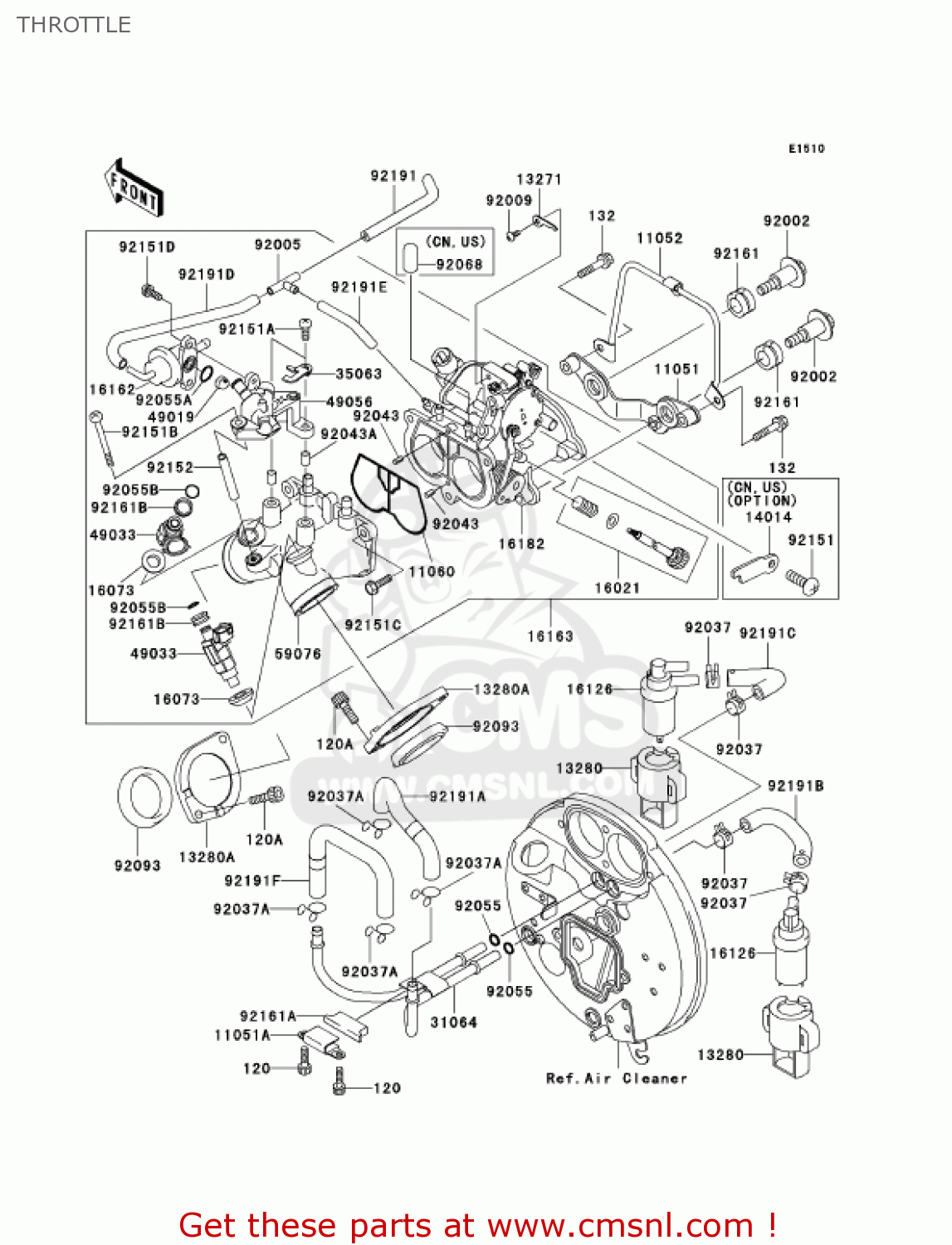

Throttle diagram VN1500T6F VULCAN 1500 CLASSIC 2006 USA CALIFORNIA CANADA

THROTTLE VN1500T6F VULCAN 1500 CLASSIC 2006 USA CALIFORNIA CANADA
THROTTLE VN1500T6F VULCAN 1500 CLASSIC 2006 USA CALIFORNIA CANADA
THROTTLE VN1500T6F VULCAN 1500 CLASSIC 2006 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11051
110511333
ref: 11051
BRACKET
€ 27.50
11051A
110511345
ref: 11051A
BRACKET
€ 4.00
11052
110521067
ref: 11052
BRACKET,HIGH TENSHION
€ 41.00
11060
110601928
ref: 11060
GASKET,THROTTLE BODY (NAS)
€ 32.00
13271
132711314
ref: 13271
PLATE,STARTER CABLE
€ 1.50
13280
132801139
ref: 13280
HOLDER
€ 18.50
13280A
132801154
ref: 13280A
HOLDER
€ 20.00
14014
140141142
ref: 14014
[CN,US
PLATE-POSITION,25KW
140141142
€ 9.00
16021
160211227
ref: 16021
SCREW-THROTTLE STOP
€ 70.50
16073
160731119
ref: 16073
INSULATOR
160731119
€ 15.00
16126
161261372
ref: 16126
VALVE
€ 53.50
16162
161621054
ref: 16162
REGULATOR-FUEL
€ 164.00
16163
161631099
ref: 16163
THROTTLE-ASSY
€ 1,631.50
16182
161821002
ref: 16182
BODY-THROTTLE
€ 836.50
31064
310641227
ref: 31064
PIPE-COMP
€ 37.50
35063
350631148
ref: 35063
STAY
€ 9.50
49019
490193707
ref: 49019
FILTER-FUEL,STRAINER
490193707
€ 7.00
49033
490331057
ref: 49033
NOZZLE-INJECTION
€ 131.00
49056
490561054
ref: 49056
PIPE-INJECTION
€ 214.50
59076
590761110
ref: 59076
MANIFOLD-INTAKE
€ 358.00
92002
920021595
ref: 92002
BOLT,HEAD COVER
920021595
€ 8.50
92005
920051366
ref: 92005
FITTING
€ 22.50
92009
920091903
ref: 92009
SCREW
€ 1.50
92037
920371181
ref: 92037
CLAMP
920371181
€ 1.00
92037A
920371271
ref: 92037A
CLAMP,FUEL TUBE
920371271
€ 2.00
92043
920431600
ref: 92043
PIN,THROTTLE BODY
€ 2.00
92043A
920431601
ref: 92043A
PIN,DELIVERY PIPE
€ 2.00
92055
92055029
ref: 92055
RING-O,7.8X3.5
92055029
€ 2.50
92055A
920551620
ref: 92055A
RING-O,FUEL REGULATOR
920551620
€ 2.50
92055B
920551622
ref: 92055B
RING-O,INJECTION NOZZ
920551622
€ 1.50
92068
92068006
ref: 92068
[CN,US
RUBBER PLUG
92068006
€ 2.50
92093
920931484
ref: 92093
SEAL
920931484
€ 15.00
92151
921511528
ref: 92151
[CN,US
BOLT
€ 3.00
92151A
921511585
ref: 92151A
BOLT,5X20
€ 1.50
92151B
921511586
ref: 92151B
BOLT,5X75
921511586
€ 2.00
120
120S0510
ref: 120
BOLT-SOCKET
120S0510
€ 0.50
120A
120Z0620
ref: 120A
BOLT-SOCKET,6X20
120Z0620
€ 3.00
132
132J0625
ref: 132
BOLT-FLANGED-SMALL
132J0625
€ 2.50
92151C
921511587
ref: 92151C
BOLT,THROTTLE BODY
€ 2.50
92151D
921511588
ref: 92151D
BOLT,6X12
€ 1.50
92152
921521206
ref: 92152
COLLAR,DELIVERY PIPE
€ 7.00
92161
921611058
ref: 92161
DAMPER
€ 3.00
92161A
921611062
ref: 92161A
DAMPER
€ 4.50
92161B
921611083
ref: 92161B
DAMPER,INJECTION NOZZ
921611083
€ 5.50
92191
921911298
ref: 92191
TUBE,THROTTLE-BOOST
€ 4.00
92191A
921911366
ref: 92191A
TUBE,FRONT PORT,RED
€ 8.00
92191B
921911367
ref: 92191B
TUBE,REAR VALVE,RED
€ 4.50
92191C
921911368
ref: 92191C
TUBE,FRONT VALVE,BLUE
€ 4.50
92191D
921911402
ref: 92191D
TUBE,L=130
€ 3.50
92191E
921911403
ref: 92191E
TUBE,L=55
€ 2.50
92191F
921911564
ref: 92191F
TUBE,REAR PORT,YELLOW
€ 7.50
