IGNITION SYSTEM

VN1500N7FA VULCAN 1500 CLASSIC 2007 USA CALIFORNIA CANADA

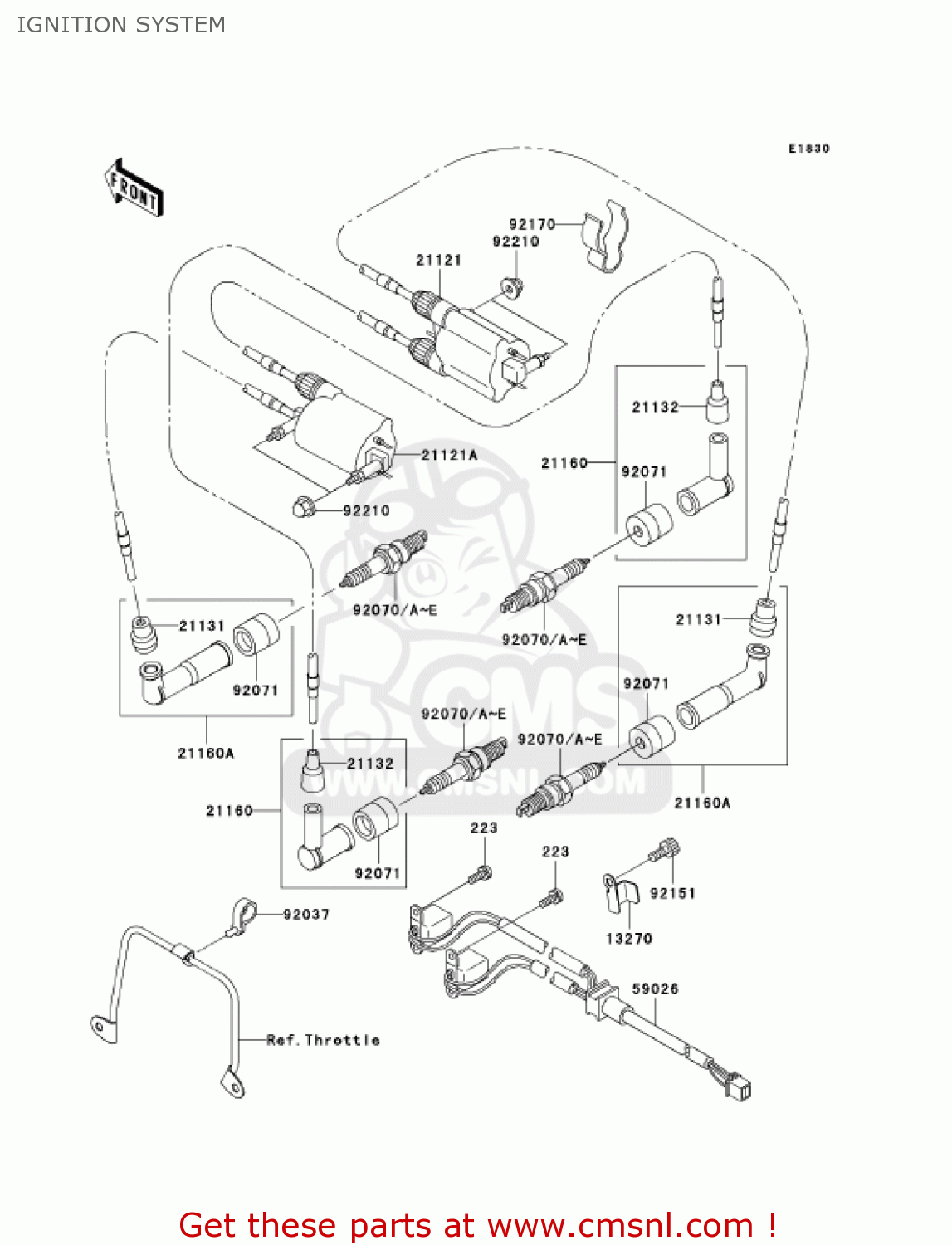

Ignition system diagram VN1500N7FA VULCAN 1500 CLASSIC 2007 USA CALIFORNIA CANADA

IGNITION SYSTEM VN1500N7FA VULCAN 1500 CLASSIC 2007 USA CALIFORNIA CANADA
IGNITION SYSTEM VN1500N7FA VULCAN 1500 CLASSIC 2007 USA CALIFORNIA CANADA
IGNITION SYSTEM VN1500N7FA VULCAN 1500 CLASSIC 2007 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
223
223B0516
ref: 223
SCREW-PAN-WS-CROS
223B0516
€ 2.50
13270
132701979
ref: 13270
PLATE
€ 2.00
21121
211211288
ref: 21121
COIL-IGNITION,RR
€ 171.00
21121A
211211289
ref: 21121A
COIL-IGNITION,FR
211211289
€ 180.00
21131
21131005
ref: 21131
GROMMET,TENSION,ITALY
21131005
€ 4.00
21132
21132005
ref: 21132
GROMMET,SPARK PLUG CP
21132005
€ 2.50
21160
211601085
ref: 21160
CAP-ASSY-PLUG
211601085
€ 15.00
21160A
211601091
ref: 21160A
CAP-ASSY-PLUG
211601091
€ 15.50
59026
590261157
ref: 59026
COIL-PULSING
€ 85.00
92037
920371290
ref: 92037
CLAMP,CARBURETOR
920371290
€ 4.50
92070
?
ref: 92070
(LOCAL PROCUREMENT I
?
92070A
920701125
ref: 92070A
(OPTION)
DPR7EA-9 (NGK SPARKPL
920701125
€ 4.00
92070B
920701138
ref: 92070B
DPR6EA-9 (NGK SPARKPL
€ 4.00
92070C
?
ref: 92070C
(LOCAL PROCUREMENT I
?
92070D
920701250
ref: 92070D
(OPTION)
DPR5EA-9 (NGK SPARKPL
€ 4.50
92070E
?
ref: 92070E
(LOCAL PROCUREMENT I
?
92071
920711184
ref: 92071
GROMMET,PLUG CAP
920711184
€ 4.00
92151
921513704
ref: 92151
BOLT,SOCKET,6X10
€ 2.50
92170
921701930
ref: 92170
CLAMP,HOSE
€ 5.50
92210
922100003
ref: 92210
NUT
922100003
€ 0.50
